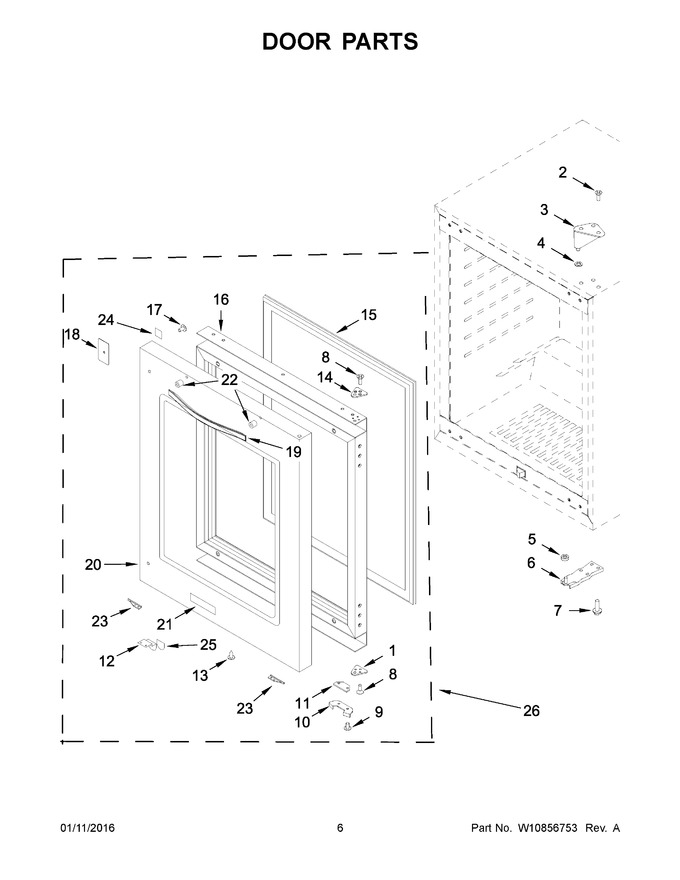

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	4344756		Spacer, Bottom Hinge				$ 18.63
2	4344796		Screw				$ 15.14
3	W10319150		Hinge, Top		Appelez-nous	-
4	4344760		Washer				$ 14.32
5	W11241702		Washer   (Replaces: W10162992)				$ 12.84
6	W10163066		Bottom Hinge (left Hand)		Appelez-nous	-
7	W10780355		Bolt				$ 45.17
8	W10243123		Screw   (Replaces: W10797377)				$ 15.14
9	4344801		Screw				$ 15.14
10	4344758		Door Stop		Appelez-nous	-
11	4344788		Spacer, Door				$ 154.23
12	4344757		Actuator, Switch				$ 138.67
13	W10837731		Screw   (Replaces: W10204865)				$ 7.47
14	4344755		Spacer, Top Hinge				$ 18.03
15	WPW10238068		Door Gasket   (Replaces: 4344852)				$ 312.31
16	W10856833		Glass Door Process		Appelez-nous	-
17	W10319186		Screw		Appelez-nous	-
18	W11263339		Plate, Door Handle   (Replaces: W10622815)				$ 15.65
19	W10841194		Handle, Door		Appelez-nous	-
20	W10856840		Stainless Wrap		Appelez-nous	-
21	WPW10393265		Badge (grey)   (Replaces: W10393265)			Immediately	$ 70.71
22	W11179356		Stud, Mounting   (Replaces: W10772902)				$ 14.96
23	W10319168		Door Corner (left Hand)		Appelez-nous	-
24	W10204868		Wrap Gap Spacer		Appelez-nous	-
25	W10163191		Label				$ 14.85
26	W10856841		Glass Door Assembly		Appelez-nous	-
23A	W10319169		Door Corner (right Hand)		Appelez-nous	-
6A	W10163069		Bottom Hinge (right Hand)		Appelez-nous	-
