01 - Unit Parts

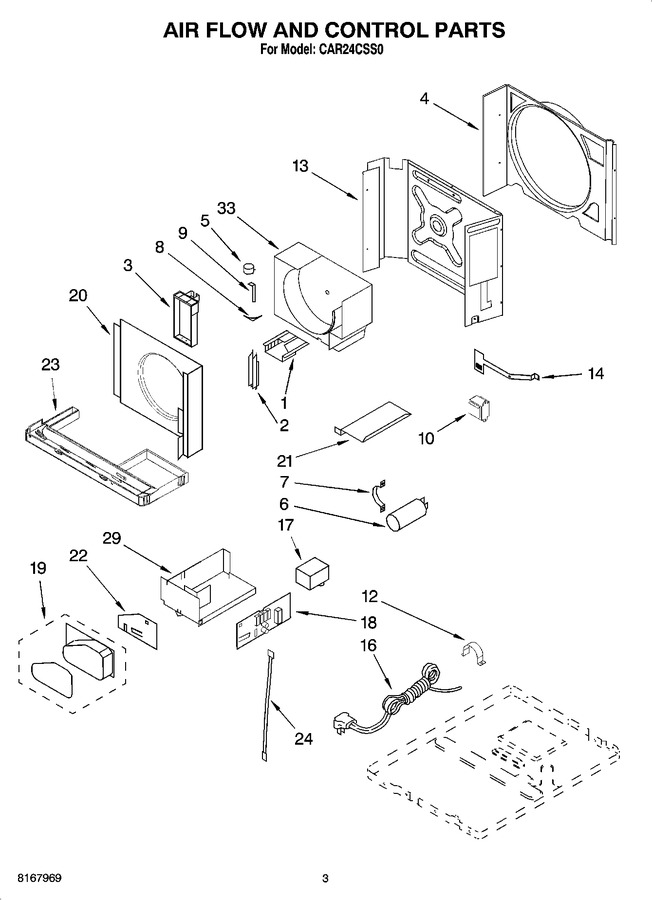

02 - Air Flow And Control Parts
03 - Cabinet Parts
04 - Optional Parts (not Included)
05 - Installation Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 8215111 | Housing, Air |
|
- | |||||
| 2 | 8215112 | Louver |
|
- | |||||
| 3 | 8215116 | Cartridge, Louver |
|
- | |||||
| 4 | 8215071 | Shroud, Condenser |
|
- | |||||
| 5 | 8215114 | Motor, Louver |
|
- | |||||
| 6 | 8209949 | Capacitor, Running |
|
- | |||||
| 7 | 8215132 | Bracket, Capacitor |
|
- | |||||
| 8 | 8215113 | Linkage, Louver |
|
- | |||||
| 9 | 8215115 | Linkage, Louver |
|
- | |||||
| 10 | 8215131 | Transformer |
|
- | |||||
| 12 | 8215135 | Wire Clamp |
|
- | |||||
| 13 | 8215109 | Wall, Dividing |
|
- | |||||
| 14 | 8215117 | Door, Exhaust |
|
- | |||||
| 16 | 8215136 | Cord, Appliance |
|
- | |||||
| 17 | 8215128 | Capacitor |
|
- | |||||
| 18 | 8215134 | Microcomputer |
|
$ 105.93 | |||||
| 19 | 8215138 | Escutcheon |
|
- | |||||
| 20 | 8215119 | Shroud, Evaporator |
|
- | |||||
| 21 | 8215120 | Cover, Air Duct |
|
- | |||||
| 22 | 8215137 | Display Board |
|
- | |||||
| 23 | 8215127 | Pan, Evaporator |
|
- | |||||
| 24 | 8209739 | Thermistor |
|
- | |||||
| 29 | 8215133 | Box, Control |
|
- | |||||
| 33 | 8215151 | Housing, Air |
|
- |
