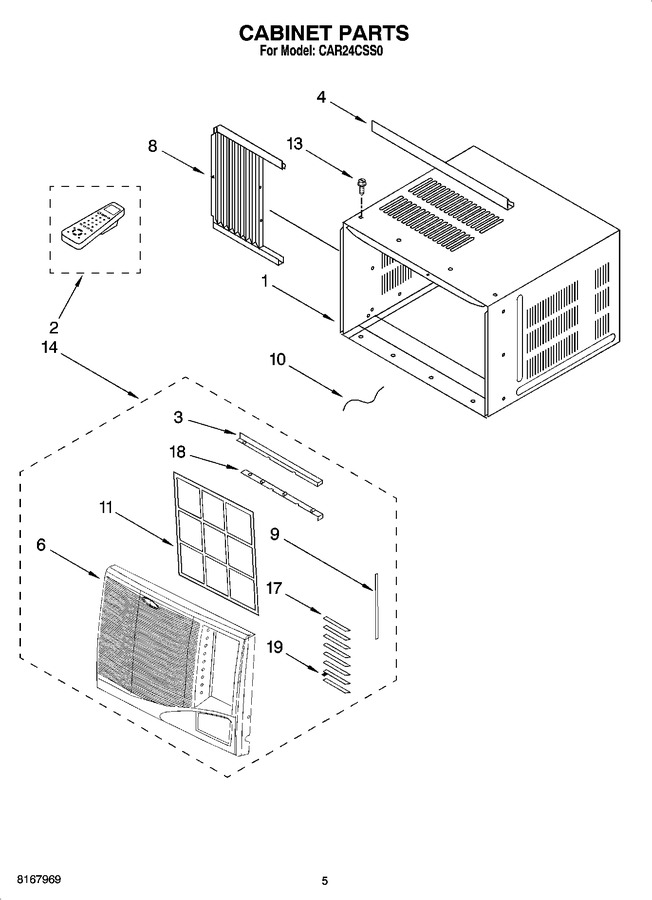

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	8215158		Cabinet		Appelez-nous	-
2	8209730		Remote Control		Appelez-nous	-
3	8215139		Membrane		Appelez-nous	-
4	8215102		Channel, Top		Appelez-nous	-
6	8215141		Front, Cabinet		Appelez-nous	-
8	8215099		Curtain Assembly Right & Left Side		Appelez-nous	-
9	8215141		Guide, Linkage		Appelez-nous	-
10	8215101		Ground Wire		Appelez-nous	-
11	8215142		Filter		Appelez-nous	-
13	8209777		Screw		Appelez-nous	-
14	8215159		Front, Cabinet Assembly		Appelez-nous	-
17	8215143		Guide, Louver		Appelez-nous	-
18	8215146		Guide, Filter (down)		Appelez-nous	-
18	8215145		Guide, Filter (up)		Appelez-nous	-
19	8215144		Guide, Louver		Appelez-nous	-
