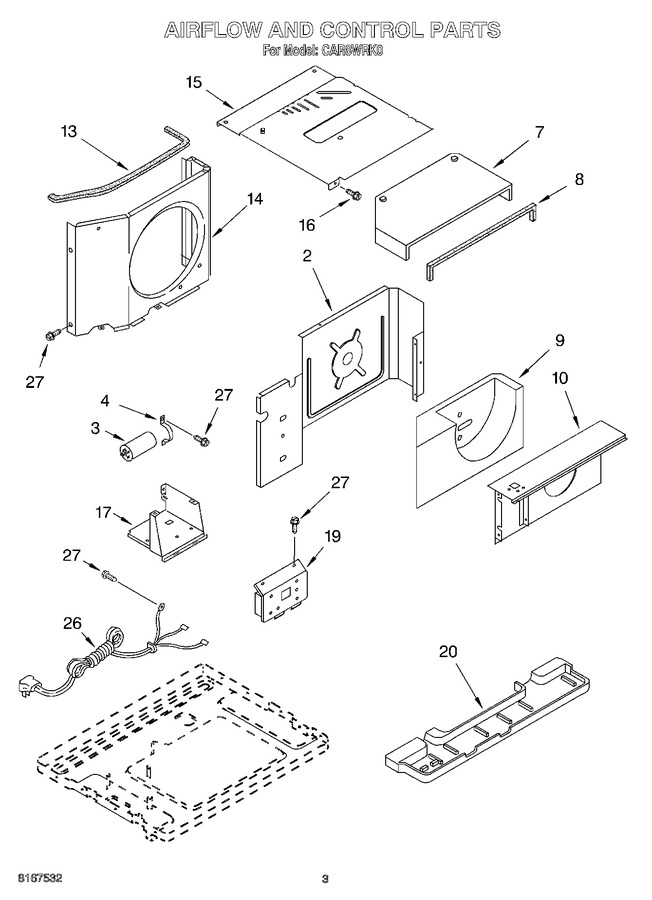

SELECT A DIAGRAM

01 - Unit, Literature


02 - Airflow And Control


03 - Cabinet


04 - Optional


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
2	8031104		Wall, Dividing		Appelez-nous	-
3	1167531		Capacitor, Running		Appelez-nous	-
4	1167611		Bracket, Running Capacitor		Appelez-nous	-
7	8031570		Hood, Air Housing		Appelez-nous	-
8	WP854334		Seal, Hood   (Replaces: 1180698)				$ 12.55
9	8031586		Housing, Air		Appelez-nous	-
10	8031109		Shroud, Evaporator		Appelez-nous	-
13	8031312		Seal, Condenser Shroud		Appelez-nous	-
14	8031110		Shroud, Condenser		Appelez-nous	-
15	8031112		Cover, Unit		Appelez-nous	-
16	488624		Screw, 8-15 X .375		Appelez-nous	-
17	1184600		Box, Control		Appelez-nous	-
19	1184686		Control, Electronic		Appelez-nous	-
20	8031111		Pan, Drain		Appelez-nous	-
26	1184687		Cable, Appliance		Appelez-nous	-
27	1159222		Screw 8-18 X .295		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
