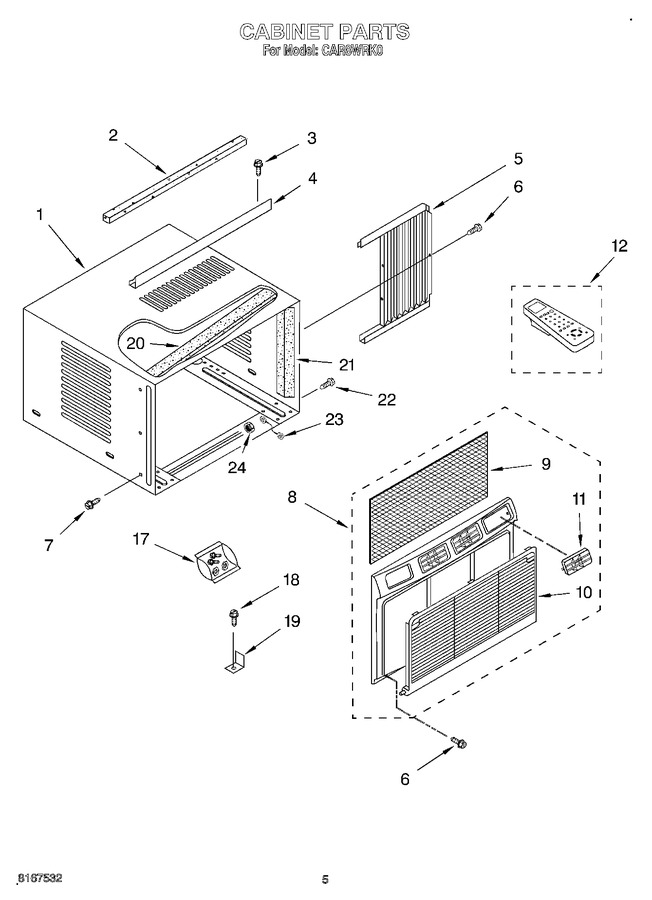

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	8031388		Cabinet		Appelez-nous	-
2	469877		Seal, Meeting Rail		Appelez-nous	-
3	WP3390631		Screw 10-16 X .250   (Replaces: 342202)				$ 7.43
4	8031401		Channel, Top		Appelez-nous	-
5	8031399		Curtain ((left Side))		Appelez-nous	-
5	8031397		Curtain ((right Side))		Appelez-nous	-
6	1159222		Screw 8-18 X .295		Appelez-nous	-
7	W10491985		Screw 8-18 X .250   (Replaces: 3196160)			Immediately	$ 6.80
8	1184977		Front		Appelez-nous	-
9	8031292		Filter		Appelez-nous	-
10	8031297		Grille, Front		Appelez-nous	-
11	8031202		Louver Assembly		Appelez-nous	-
12	1184821		Control, Remote		Appelez-nous	-
17	1157654		Accessory, Bag		Appelez-nous	-
18	488255		Screw, Wood 8-15 X .750		Appelez-nous	-
19	644228		Bracket, Window Lock		Appelez-nous	-
20	8031322		Seal, Top Cover		Appelez-nous	-
21	8031519		Seal, Cabinet Side (2)		Appelez-nous	-
22	WP488234		Screw,8-32x1/4   (Replaces: 488234)				$ 6.37
23	856094		Wire, Ground		Appelez-nous	-
24	WP486255		Nut, Hex 8-32   (Replaces: 486529)				$ 5.82
