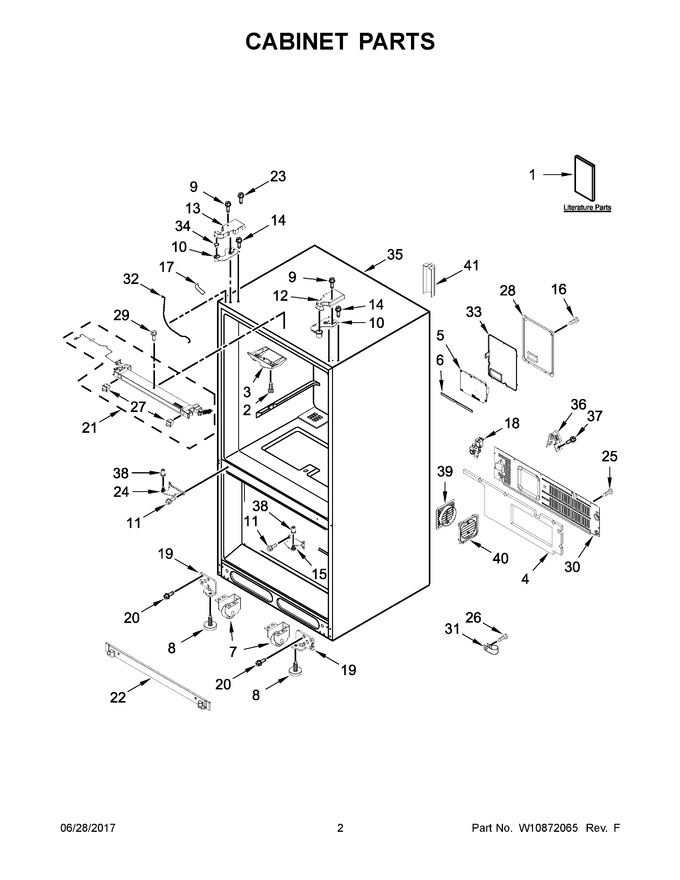

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10706346 | Tech Sheet (english) |
|
- | |||||
| 2 | W11311945 | Screw (Replaces: 12990204) |
|
$ 13.25 | |||||
| 3 | W10703243 | Block, Pivot |
|
- | |||||
| 4 | W11820443 | Pad, Sound (Replaces: W10838044) |
|
$ 93.34 | |||||
| 5 | W11389713 | Control, Electronic (Replaces: W10687090) |
|
Immediately | $ 387.80 | ||||
| 6 | W10415341 | Gasket, Hv Box |
|
$ 33.30 | |||||
| 7 | W10720528 | Assembly, Roller |
|
$ 79.56 | |||||
| 8 | WPW10141622 | Brake, Roller (Replaces: W10141622) |
|
Immediately | $ 7.42 | ||||
| 9 | WP98165 | Screw (Replaces: 12990521) |
|
$ 7.71 | |||||
| 10 | W11032616 | Hinge, Top (left Hand) (Replaces: W10771377) |
|
$ 68.80 | |||||
| 11 | W11573362 | Screw (stainless) (Replaces: W10673840) |
|
$ 13.25 | |||||
| 12 | W10902031 | Cover, Right Hinge (grey) (Replaces: W10702102) |
|
$ 158.93 | |||||
| 13 | W11230095 | Cover, Left Hinge (grey) (Replaces: W10879602) |
|
$ 160.46 | |||||
| 14 | W11126052 | Screw (Replaces: W10731474) |
|
Immediately | $ 13.26 | ||||
| 15 | W11167119 | Hinge, Center (right) (grey) (Replaces: W10691701) |
|
$ 73.59 | |||||
| 16 | W11686675 | Screw (Replaces: 12990702) |
|
$ 12.84 | |||||
| 17 | WP12587703AP | Cover, Corner (grey) (Replaces: 12587703AP) |
|
$ 7.26 | |||||
| 18 | W10865826 | Valve, Water (Replaces: W10726788) |
|
Immediately | $ 72.84 | ||||
| 19 | W10869731 | Leveler, Brake (left Hand) |
|
$ 22.27 | |||||
| 20 | 67006564 | Screw (Replaces: W10709365) |
|
Immediately | $ 7.34 | ||||
| 21 | W10889837 | Assembly, Eyebrow (includes Wi-fi User Interface Board And Antennae) (Replaces: W10870898) |
|
$ 392.60 | |||||
| 22 | W10760342 | Grille, Toe (grey) |
|
- | |||||
| 23 | W11214483 | Screw (Replaces: 12992601) |
|
Immediately | $ 13.25 | ||||
| 24 | W11122872 | Hinge, Center (left) (grey) (Replaces: W10691675) |
|
$ 76.67 | |||||
| 25 | WPW10141645 | Screw (Replaces: W10141645) |
|
$ 7.25 | |||||
| 26 | 67006425 | Screw (Replaces: 12990511) |
|
Immediately | $ 6.57 | ||||
| 27 | W10706389 | Switch, Light |
|
- | |||||
| 28 | W10754144 | Cover, Control Box |
|
$ 77.54 | |||||
| 29 | 8281197 | Screw |
|
- | |||||
| 30 | W10669259 | Cover, Unit |
|
- | |||||
| 31 | W11456069 | Clamp, Tube (Replaces: M0108107) |
|
Immediately | $ 20.16 | ||||
| 32 | W11024492 | Tube, Icemaker Water (cabinet) (Replaces: W10853588) |
|
- | |||||
| 33 | W10768379 | Lid, Hv |
|
$ 75.24 | |||||
| 34 | W10705239 | Retainer, Door |
|
Immediately | $ 46.48 | ||||
| 35 | N/P | Cabinet (not A Servicable Part) |
|
- | |||||
| 36 | 549193 | Clamp, Power Cord |
|
$ 12.65 | |||||
| 37 | WPW10141645 | Screw (Replaces: W10141645) |
|
$ 7.25 | |||||
| 38 | W11159608 | Bushing, Hinge (Replaces: W10908701) |
|
Immediately | $ 11.61 | ||||
| 39 | W10835555 | Assembly, Outer Air Tunnel (includes Gasket) (grey) |
|
- | |||||
| 40 | W10835558 | Assembly, Inner Air Tunnel (includes Gasket) (grey) |
|
- | |||||
| 41 | W10208592 | Cover, Valve |
|
- | |||||
| 10A | W11032620 | Hinge, Top (right Hand) (Replaces: W10771381) |
|
$ 66.47 | |||||
| 19A | W10869730 | Leveler, Brake (right Hand) |
|
- | |||||
| 1A | W10706347 | Tech Sheet (french) |
|
- | |||||
| 1B | W10706341 | Use And Care Guide |
|
- | |||||
| 1C | W11113222 | Energy Guide |
|
- | |||||
| 32A | W11024493 | Tube, Dispenser Water (cabinet) (Replaces: W10853590) |
|
- |
