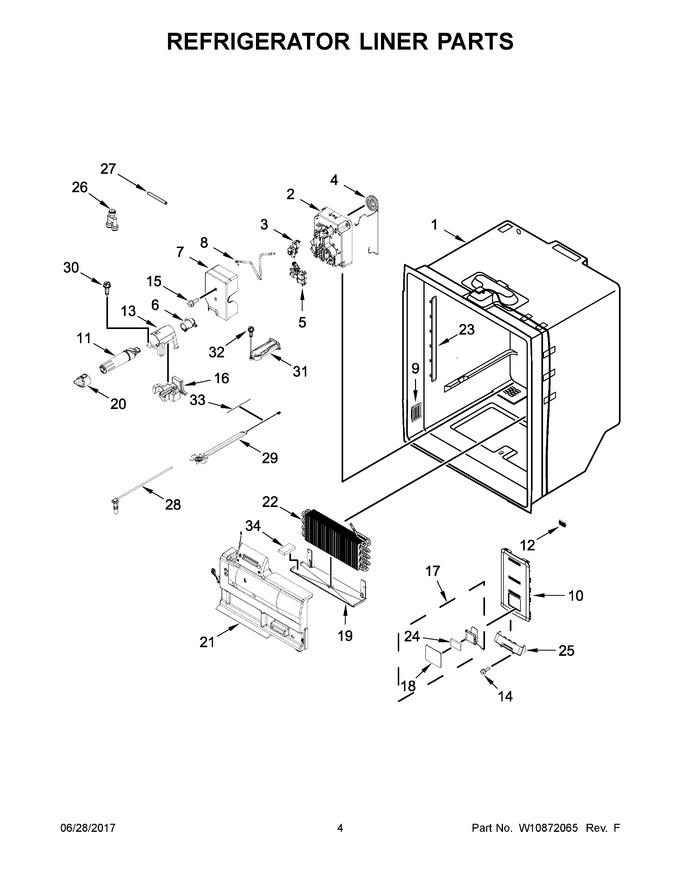

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | N/P | Liner (not A Serviceable Part) |
|
- | |||||
| 2 | W10708473 | Housing, Water Tank |
|
$ 96.80 | |||||
| 3 | W10873093 | Valve, Water (Replaces: W10853039) |
|
$ 277.06 | |||||
| 4 | W10879761 | Reservoir, Water (also Order Wire Tie Part W10838005 Qty 2) |
|
- | |||||
| 5 | W10873098 | Valve, Dual Water (Replaces: W10853040) |
|
Immediately | $ 277.06 | ||||
| 6 | W10906054 | Housing, Water Filter |
|
$ 204.03 | |||||
| 7 | W10900010 | Cover, Water Valve |
|
Immediately | $ 101.45 | ||||
| 8 | W10906064 | Tube, Filter Outlet (to "t" Connector) (Replaces: W10720389) |
|
$ 105.84 | |||||
| 9 | W10718061 | Cover, Cooling Duct |
|
$ 92.01 | |||||
| 10 | W10704475 | Cover, Tower |
|
$ 177.57 | |||||
| 11 | EDR2RXD1B | Filter, Water (Replaces: W10680605) |
|
Immediately | $ 49.99 | ||||
| 12 | W10311524 | Filter, Air (Replaces: W10315189) |
|
Immediately | $ 12.91 | ||||
| 13 | W11189600 | Bracket, Filter (Replaces: W10708474) |
|
$ 66.98 | |||||
| 14 | W10119266 | Screw |
|
$ 11.44 | |||||
| 15 | WP67006908 | Screw (Replaces: 12990518) |
|
Immediately | $ 7.90 | ||||
| 16 | W10871145 | Insulation, Under Filter |
|
$ 51.48 | |||||
| 17 | W11803610 | Assembly, Air Filter (Replaces: W10766881) |
|
$ 78.01 | |||||
| 18 | W10704470 | Cover, Air Filter |
|
- | |||||
| 19 | W11673436 | Bracket, Evaporator Drain (Replaces: W10673133) |
|
$ 66.84 | |||||
| 20 | W11189114 | Cap, Filter (Replaces: W10719253) |
|
Immediately | $ 42.00 | ||||
| 21 | W10889841 | Assembly, Evaporator Cover (includes Fan Motor, Wire Assembly And Thermistor) (Replaces: W10875099) |
|
$ 372.87 | |||||
| 22 | W10865322 | Assembly, Evaporator (Replaces: W10635994) |
|
Immediately | $ 328.50 | ||||
| 23 | W11214258 | Assembly, Side Lamp (Replaces: W10881591) |
|
$ 169.41 | |||||
| 24 | W10673897 | Insulator, Foam (Replaces: W10831305) |
|
$ 29.28 | |||||
| 25 | W10716179 | Base, Tower Cover |
|
- | |||||
| 26 | W11209438 | Connector, Water Tube (Replaces: W10722983) |
|
$ 32.15 | |||||
| 27 | W10764297 | Tube, Valve Inlet |
|
$ 28.97 | |||||
| 28 | W10687070 | Tube, Icemaker Fill |
|
- | |||||
| 29 | W10906055 | Heater, Fill Tube (freezer Icemaker) (Replaces: W10870234) |
|
$ 126.61 | |||||
| 30 | WP489474 | Screw (Replaces: 12990501) |
|
Immediately | $ 7.70 | ||||
| 31 | W10889087 | Cover, Fill Tube |
|
- | |||||
| 32 | W11686675 | Screw (Replaces: 12990702) |
|
$ 12.84 | |||||
| 33 | W10909339 | Gasket (Replaces: W10882750) |
|
$ 11.20 | |||||
| 34 | W10818463 | Gasket, Evaporator Air Dam |
|
$ 24.98 | |||||
| NI | W10871595 | Assembly, Valve Wire |
|
- | |||||
| NI | N/P | Following Parts Not Illustrated |
|
- |
