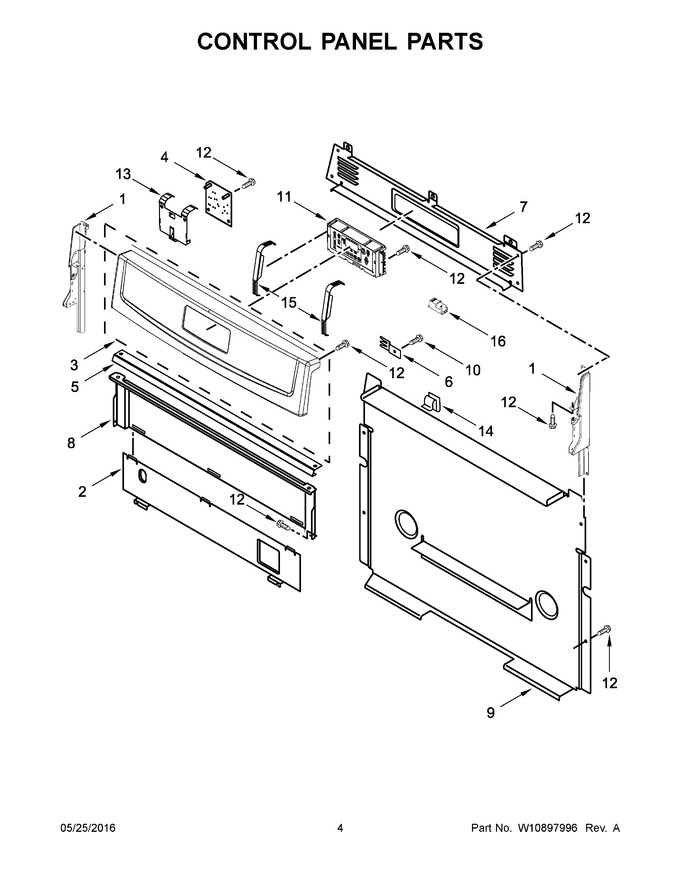

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11219664		Endcap (black (left))   (Replaces: W10184437)			Immediately	$ 138.45
2	8053505		Shield, Heat				$ 149.30
3	W10572581		Panel, Console (black)		Appelez-nous	-
4	WPW10511278		Module, Spark Dsi   (Replaces: W10511278)			Immediately	$ 317.01
5	W10516123		Bracket, Console Mounting		Appelez-nous	-
6	8523412		Bracket, Rear Cooktop				$ 151.11
7	W10198745		Cover, Upper				$ 116.01
8	W10192841		Shield, Heat				$ 96.02
9	W10184370		Cover, Back		Appelez-nous	-
10	WP3196557		Screw   (Replaces: 3196169)			Immediately	$ 7.16
11	W10899231		Control, Range (black)   (Replaces: W10833996)				$ 502.98
12	W11233072		Screw   (Replaces: 3196178)			Immediately	$ 13.25
13	W10516463		Bracket, Dsi		Appelez-nous	-
14	WP8273564		Clip, Rear Upper Cover   (Replaces: 8273564)				$ 11.39
15	W11230932		Bracket, Control   (Replaces: W10695491)			Immediately	$ 76.33
16	WPW10110491		Module, Spark   (Replaces: W10110488)			Immediately	$ 290.17
11A	W10899217		Control, Range (white)   (Replaces: W10833995)				$ 491.44
1A	W11219665		Endcap (black (right))   (Replaces: W10184438)			Immediately	$ 40.65
1B	W11219365		Endcap (white (left))   (Replaces: W10184433)				$ 38.21
1C	W11219370		Endcap (white (right))   (Replaces: W10184434)				$ 54.75
3A	W10572579		Panel, Console (white)		Appelez-nous	-
3B	WPW10572583		Panel, Console (stainless)   (Replaces: W10572583)				$ 289.88

    View Diagram in Separate Window       Print Part List
