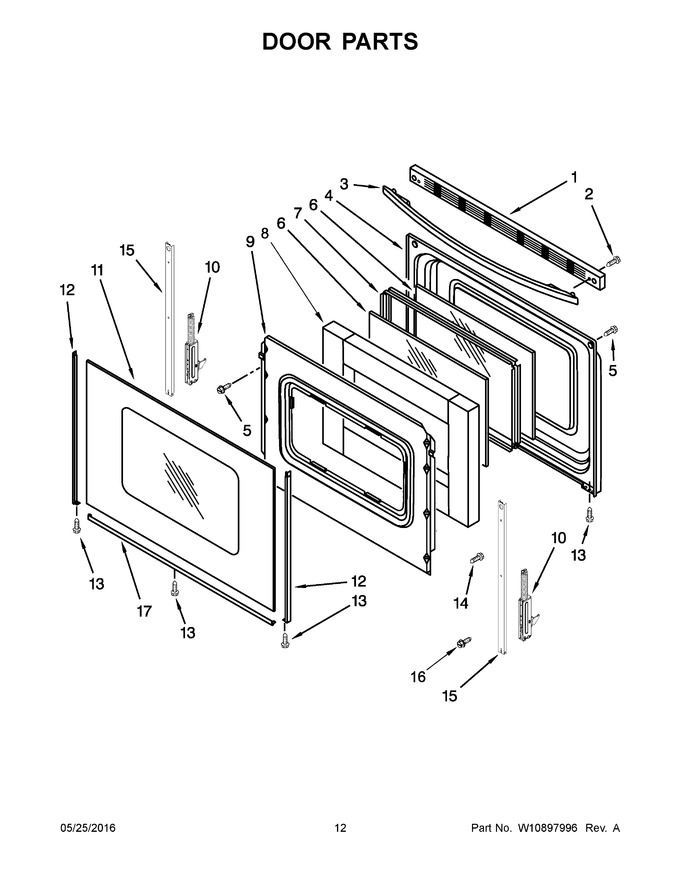

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WPW10310922 | Trim, Top Vent (black) (Replaces: W10310922) |
|
Immediately | $ 157.83 | ||||
| 2 | WPW10200660 | Screw (Replaces: W10200660) |
|
Immediately | $ 7.42 | ||||
| 3 | WPW10323589 | Handle, Door (black) (Replaces: W10323589) |
|
Immediately | $ 252.10 | ||||
| 4 | WP9761344 | Liner, Door (Replaces: 9761344) |
|
Immediately | $ 335.60 | ||||
| 5 | WPW10031790 | Screw (Replaces: W10031790) |
|
Immediately | $ 7.87 | ||||
| 6 | WP8053948 | Glass, Inner (Replaces: 9758162) |
|
Immediately | $ 208.85 | ||||
| 7 | WPW10316950 | Frame, Glass (Replaces: W10316950) |
|
Immediately | $ 81.08 | ||||
| 8 | WPW10278991 | Insulation, Door Strip (Replaces: W10278991) |
|
Immediately | $ 91.23 | ||||
| 9 | W11539580 | Retainer, Insulation (Replaces: 9761357) |
|
$ 209.98 | |||||
| 10 | WPW10299227 | Hinge, Passive (without Spring) (Replaces: W10299227) |
|
Immediately | $ 63.67 | ||||
| 11 | WPW10118455 | Glass, Outer Door (black) (Replaces: W10118455) |
|
Immediately | $ 299.43 | ||||
| 12 | W10761018 | Trim, Door Side (black (left)) (Replaces: W10746436) |
|
Immediately | $ 49.32 | ||||
| 13 | W10491985 | Screw (Replaces: 3196160) |
|
Immediately | $ 6.80 | ||||
| 14 | WP3196175 | Screw (Replaces: 3196165) |
|
Immediately | $ 6.80 | ||||
| 15 | W11502236 | Strap, Door (Replaces: W10544179) |
|
Immediately | $ 24.91 | ||||
| 16 | W10777162 | Screw (Replaces: W10031780) |
|
Immediately | $ 7.43 | ||||
| 17 | WP8523177 | Trim, Bottom (black) (Replaces: 8523177) |
|
$ 149.27 | |||||
| 10A | WPW10299224 | Hinge, Active (with Spring) (Replaces: W10299224) |
|
Immediately | $ 66.14 | ||||
| 11A | WPW10118454 | Glass, Outer Door (white) (Replaces: W10118454) |
|
$ 292.42 | |||||
| 11B | W10144884 | Glass, Outer Door (stainless) |
|
- | |||||
| 12A | W10761014 | Trim, Door Side (black (right)) (Replaces: W10746435) |
|
Immediately | $ 65.66 | ||||
| 12B | WP8523172 | Trim, Door Side (white (left)) (Replaces: 8523172) |
|
Immediately | $ 62.94 | ||||
| 12C | WP8523166 | Trim, Door Side (white (right)) (Replaces: 8523166) |
|
Immediately | $ 75.81 | ||||
| 17A | W11594186 | Trim, Bottom (white) (Replaces: 8523175) |
|
Immediately | $ 55.23 | ||||
| 1A | W10817433 | Trim, Top Vent (white) (Replaces: W10310920) |
|
Immediately | $ 162.27 | ||||
| 3A | W10817434 | Handle, Door (white) (Replaces: W10323588) |
|
Immediately | $ 211.34 | ||||
| 3B | WPW10144883 | Handle, Door (stainless) (Replaces: W10144883) |
|
$ 227.39 |
