SELECT A DIAGRAM

01 - Cover Sheet

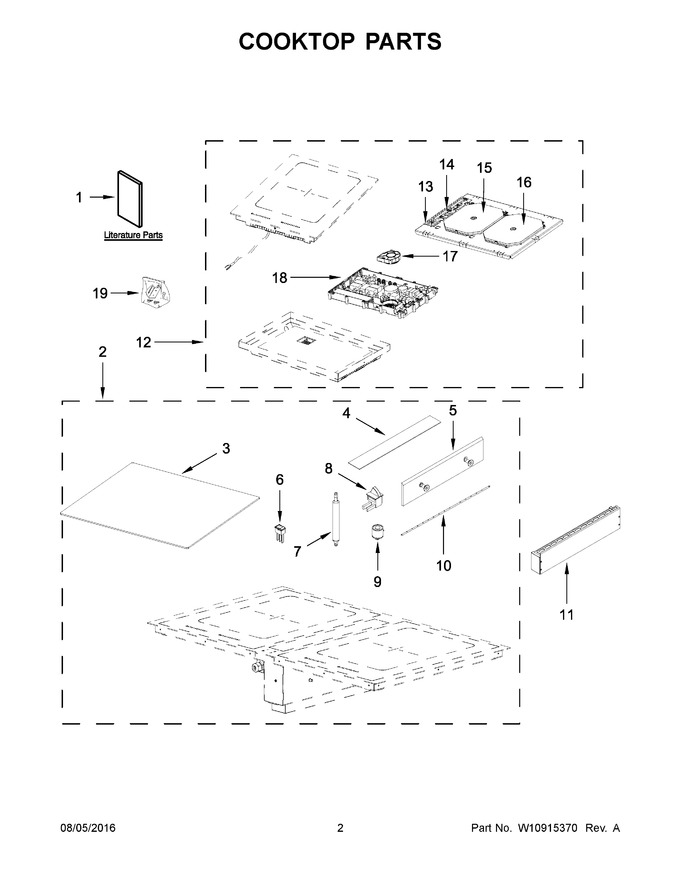

02 - Cooktop Parts


03 - Blower And Electrical Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10793589		Installation Instructions		Appelez-nous	-
2	W10914323		Assembly, Cooktop (no Induction Electronics)		Appelez-nous	-
3	W10914894		Glass, Induction   (Replaces: W10913682)		Appelez-nous	-
4	W10913692		Door, Downdraft		Appelez-nous	-
5	W10914895		Glass, Downdraft Door   (Replaces: W10913686)		Appelez-nous	-
6	W10913708		Switch, Led Light		Appelez-nous	-
7	W10913679		Strut, Door				$ 152.32
8	W10913680		Switch, Door		Appelez-nous	-
9	W10913705		Magnet, Door				$ 113.99
10	W10913690		Light, Led Strip		Appelez-nous	-
11	W10913656		Filter, Grease		Appelez-nous	-
12	W10914275		Module, Induction Burner		Appelez-nous	-
13	W10913558		Standoff (set)		Appelez-nous	-
14	W10914890		User Interface, Induction Module   (Replaces: W10913585)		Appelez-nous	-
15	W10914904		Element, Induction (front)   (Replaces: W10914280)		Appelez-nous	-
16	W10914905		Element, Induction (rear)   (Replaces: W10914282)				$ 660.52
17	W10914886		Fan, Cooling   (Replaces: W10913562)		Appelez-nous	-
18	W10913607		Board, Induction Power		Appelez-nous	-
19	W10913646		Hardware, Installation		Appelez-nous	-
1A	W10837409		Use And Care Guide, Cooktop		Appelez-nous	-
1B	W10848284		Use And Care Guide, Downdraft		Appelez-nous	-
NI	W11040365		Miscellaneous Parts, Silicone   (Replaces: W10913637)		Appelez-nous	-
NI	W10914289		Miscellaneous Parts, Harness, Door Switch				$ 111.67
NI	W10914292		Miscellaneous Parts, Harness, User Interface				$ 166.69
NI	W10914326		Miscellaneous Parts, Ribbon Cable, User Interface		Appelez-nous	-
NI	W10914268		Miscellaneous Parts, Cord, Induction Power (with Conduit, Protectors, And 90 Deg. Strain Relief)		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
