01 - Cover Sheet
02 - Cooktop Parts

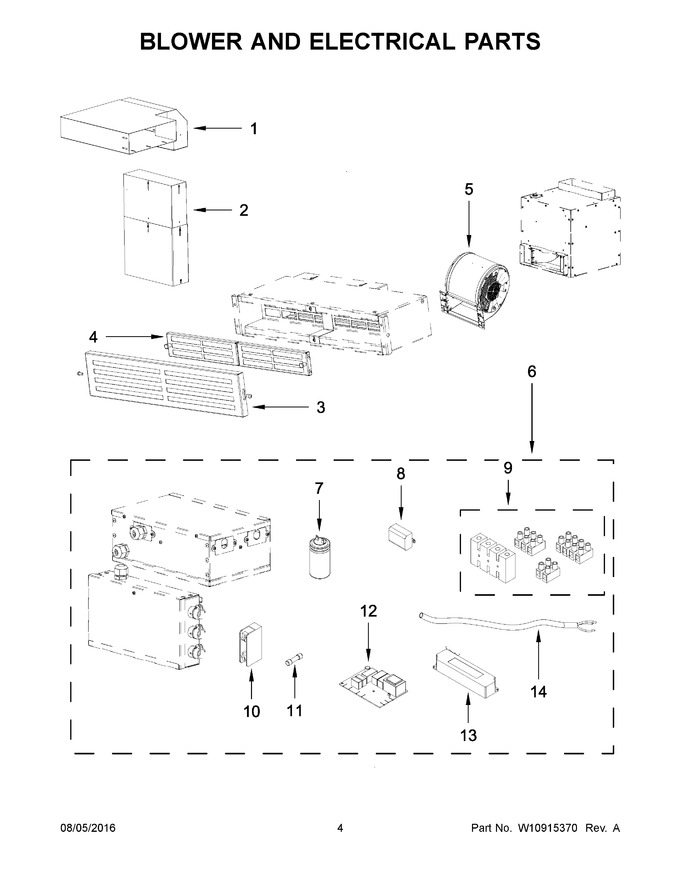

03 - Blower And Electrical Parts
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10913661 | Duct, Elbow (with Screws) |
|
- | |||||
| 2 | W10913709 | Duct, Vertical Air (with Screws) |
|
- | |||||
| 3 | W10913711 | Cover, Vent (with Screws) |
|
- | |||||
| 4 | W10807916 | Filter, Charcoal |
|
$ 256.36 | |||||
| 5 | W10711031 | Motor, Fan |
|
$ 354.63 | |||||
| 6 | W10914892 | Assembly, Electrical And Junction Box (Replaces: W10913652) |
|
$ 664.90 | |||||
| 7 | 8186677 | Capacitor (25 Mf) |
|
$ 212.19 | |||||
| 8 | W10913302 | Filter, Noise |
|
- | |||||
| 9 | W10913538 | Block, Terminal |
|
- | |||||
| 10 | W10913304 | Holder, Fuse |
|
- | |||||
| 11 | W10913305 | Fuse |
|
$ 178.73 | |||||
| 12 | WPW10716816 | Board, Control (Replaces: W10716816) |
|
$ 252.86 | |||||
| 13 | W10913306 | Driver, Led |
|
- | |||||
| 14 | W10914291 | Harness, Electrical To Junction Box (with Internal Harnesses) |
|
- | |||||
| NI | W10914286 | Miscellaneous Parts, Harness, Blower Motor |
|
$ 100.25 | |||||
| NI | W10914265 | Miscellaneous Parts, Harness, Power Supply (with Conduit, Protectors, And Strain Relief) |
|
- | |||||
| NI | W10914287 | Miscellaneous Parts, Harness, Led Driver |
|
- | |||||
| NI | W10914288 | Miscellaneous Parts, Cable, Junction Box Power |
|
- |
