01 - Cover Sheet
02 - Cooktop Parts

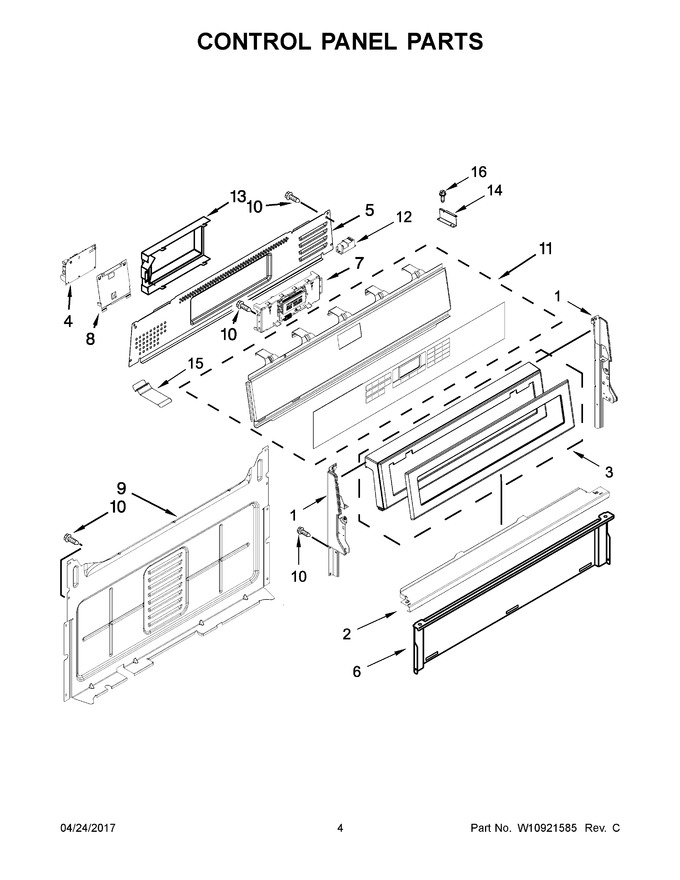

03 - Control Panel Parts
04 - Chassis Parts
05 - Manifold Parts
06 - Door Parts
07 - Drawer Parts
08 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11219664 | Endcap (black (left)) (Replaces: W10184437) |
|
Immediately | $ 138.45 | ||||
| 2 | W10516123 | Bracket, Console Mounting |
|
- | |||||
| 3 | W11164063 | Console (stainless) (Replaces: W10645848) |
|
Immediately | $ 466.76 | ||||
| 4 | WPW10511278 | Module, Spark Dsi (Replaces: W10511278) |
|
Immediately | $ 317.01 | ||||
| 5 | W10198745 | Cover, Upper |
|
$ 116.01 | |||||
| 6 | W10192841 | Shield, Heat |
|
$ 96.02 | |||||
| 7 | WPW10340325 | Control, Mrc (Replaces: W10340325) |
|
$ 424.81 | |||||
| 8 | W10762981 | Bracket, Mounting |
|
$ 68.78 | |||||
| 9 | W10184251 | Cover, Back |
|
- | |||||
| 10 | W11233072 | Screw (Replaces: 3196178) |
|
Immediately | $ 13.25 | ||||
| 11 | W11034482 | Assembly, Active Overlay (black) (Replaces: W10884364) |
|
Immediately | $ 334.25 | ||||
| 12 | WPW10475149 | Module, Spark (5+0) (Replaces: W10475149) |
|
Immediately | $ 195.52 | ||||
| 13 | W10158780 | Cover, Rear Fan |
|
$ 106.63 | |||||
| 14 | W10901176 | Bracket, Ignitor (Replaces: W10797001) |
|
- | |||||
| 15 | WPW10551614 | Spreader, Clip-spring (Replaces: W10551614) |
|
$ 12.36 | |||||
| 16 | WP3196557 | Screw (Replaces: 3196169) |
|
Immediately | $ 7.16 | ||||
| 1A | W11219665 | Endcap (black (right)) (Replaces: W10184438) |
|
Immediately | $ 40.65 |
