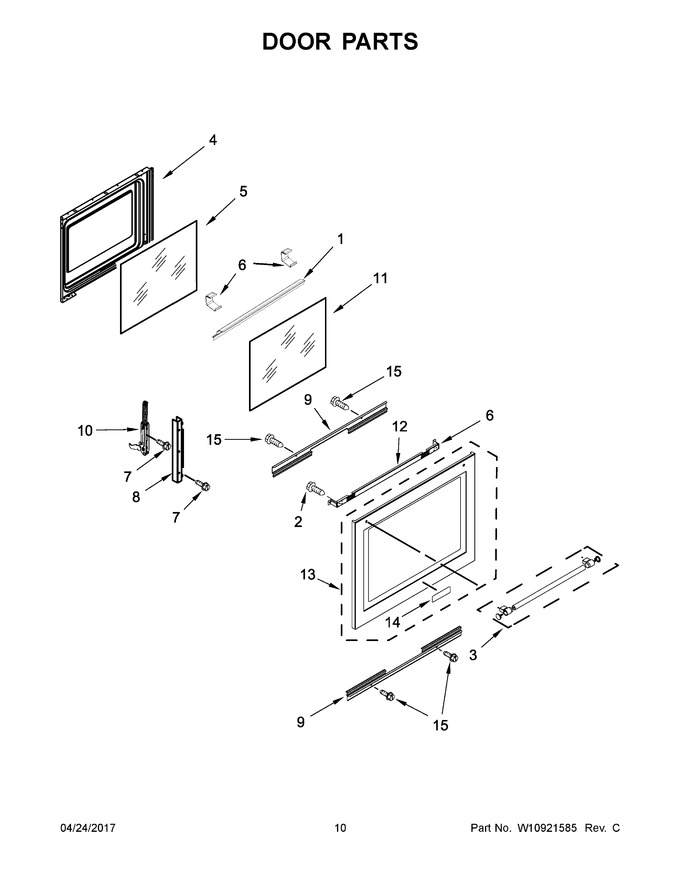

View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Cover Sheet
02 - Cooktop Parts
03 - Control Panel Parts
04 - Chassis Parts
05 - Manifold Parts
06 - Door Parts
07 - Drawer Parts
08 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10675397 | Scoop, Door |
|
$ 127.57 | |||||
| 2 | WPW10031790 | Screw (Replaces: W10031790) |
|
Immediately | $ 7.87 | ||||
| 3 | W10912640 | Assembly, Handle (stainless) (Replaces: W10834521) |
|
$ 204.62 | |||||
| 4 | W10902192 | Liner, Door (Replaces: W10826568) |
|
$ 301.54 | |||||
| 5 | W11339500 | Glass, Inner (Replaces: W10813616) |
|
$ 154.05 | |||||
| 6 | W10137382 | Clip, Panel |
|
Immediately | $ 43.58 | ||||
| 7 | WP3196175 | Screw (Replaces: 3196165) |
|
Immediately | $ 6.80 | ||||
| 8 | W11744483 | Rail, Vertical Support (Replaces: W10813139) |
|
Immediately | $ 68.57 | ||||
| 9 | W10813140 | Rail, Horizontal Support |
|
Immediately | $ 159.49 | ||||
| 10 | W11162113 | Hinge, Door (active) (Replaces: W10885519) |
|
Immediately | $ 111.53 | ||||
| 11 | W11705267 | Stainless (Replaces: W10693388) |
|
$ 210.28 | |||||
| 12 | W10541911 | Bracket, Glass Upper Handle |
|
Immediately | $ 35.93 | ||||
| 13 | W11047015 | Assembly, Door Skin (stainless) (Replaces: W10867480) |
|
$ 791.74 | |||||
| 14 | WPW10612925 | Badge (Replaces: W10612925) |
|
Immediately | $ 38.12 | ||||
| 15 | WP355214 | Screw (Replaces: W10327235) |
|
Immediately | $ 7.92 |
