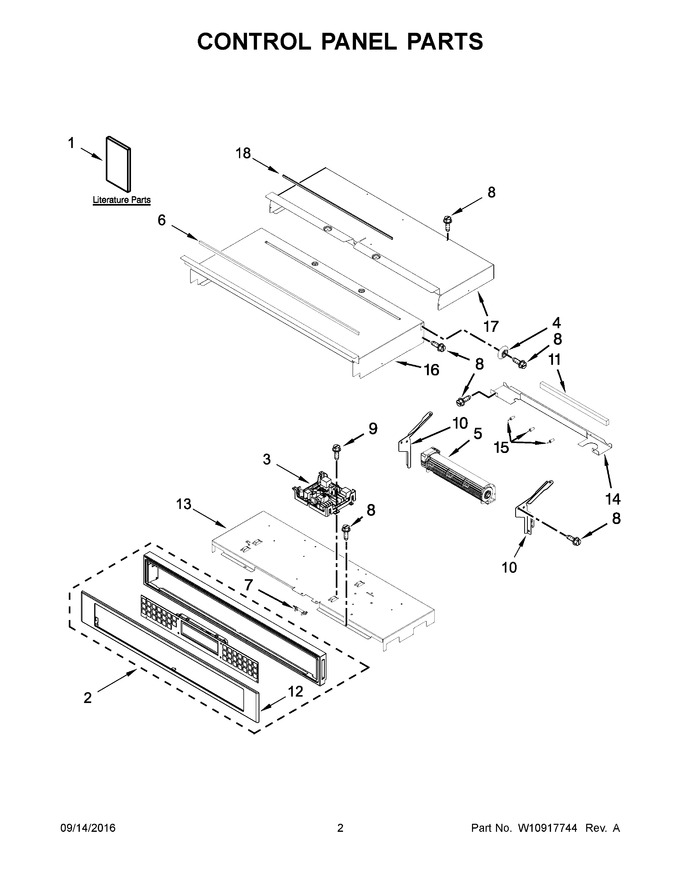

02 - Control Panel Parts
03 - Oven Parts
04 - Lower Oven Door Parts
05 - Upper Oven Door Parts
06 - Internal Oven Parts
07 - Optional Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10643471 | Guide, Use & Care |
|
- | |||||
| 2 | W10916758 | Assembly, Control Panel (includes Overlay) (stainless) (Replaces: W10890581) |
|
- | |||||
| 3 | W11179310 | Control (with Power Supply) (Replaces: W10777215) |
|
Immediately | $ 497.50 | ||||
| 4 | W10618105 | Spacer, Lateral |
|
- | |||||
| 5 | W11713858 | Blower (Replaces: W10669823) |
|
Immediately | $ 313.73 | ||||
| 6 | W11226313 | Gasket, Rubber (Replaces: W10671226) |
|
$ 21.96 | |||||
| 7 | WPW10545291 | Fuse, Thermal (Replaces: W10436435) |
|
Immediately | $ 31.95 | ||||
| 8 | WP90767 | Screw (Replaces: 7101P426-60) |
|
Immediately | $ 7.43 | ||||
| 9 | WP7101P434-60 | Screw (Replaces: 7101P434-60) |
|
$ 6.57 | |||||
| 10 | W10655463 | Bracket, Blower (left) |
|
- | |||||
| 11 | W10491987 | Block, Foam (Replaces: 4451758) |
|
Immediately | $ 7.33 | ||||
| 12 | W10588741 | Skin, Control Panel (stainless) |
|
$ 217.60 | |||||
| 13 | W10864102 | Tray, Electronic |
|
$ 67.13 | |||||
| 14 | W10655465 | Chassis, Back Divider |
|
- | |||||
| 15 | W10351295 | Bumper |
|
$ 19.91 | |||||
| 16 | W10318193 | Chassis, Cover Top Front 27 |
|
$ 122.47 | |||||
| 17 | W10694466 | Chassis, Cover Top Back 27 |
|
- | |||||
| 18 | W10728475 | Gasket, Rubber |
|
$ 34.32 | |||||
| 10A | W10655462 | Bracket, Blower (right) |
|
- | |||||
| 1A | W10725670 | Instructions, Installation |
|
- | |||||
| 1B | W10861943 | Sheet, Tech |
|
- | |||||
| 3A | W10801665 | Control (without Power Supply) (Replaces: W10777216) |
|
Immediately | $ 400.18 | ||||
| NI | W11177679 | Harness, Tod Jumper (Replaces: W10766377) |
|
$ 181.07 | |||||
| NI | W11699910 | Harness, Eol (Replaces: W10562910) |
|
$ 29.66 | |||||
| NI | 4450800 | Screw, Grounding |
|
$ 12.12 | |||||
| NI | 16515 | Clip, Harness (Replaces: 313438) |
|
$ 18.48 | |||||
| NI | 4452400 | Strap, Lead Ground |
|
$ 40.88 | |||||
| NI | 4448664 | Clamp, Conduit |
|
$ 19.27 | |||||
| NI | W10655464 | Bracket, Harness |
|
$ 36.64 | |||||
| NI | N/P | Following Parts Not Illustrated |
|
- | |||||
| NI | W10836690 | Harness, Main |
|
- | |||||
| NI | W10603937 | Harness, Signal |
|
- | |||||
| NI | W11132989 | Harness, Door Latch (Replaces: W10775068) |
|
$ 107.08 |
