01 - Cover Sheet
02 - Control Panel Parts
03 - Oven Parts
04 - Lower Oven Door Parts

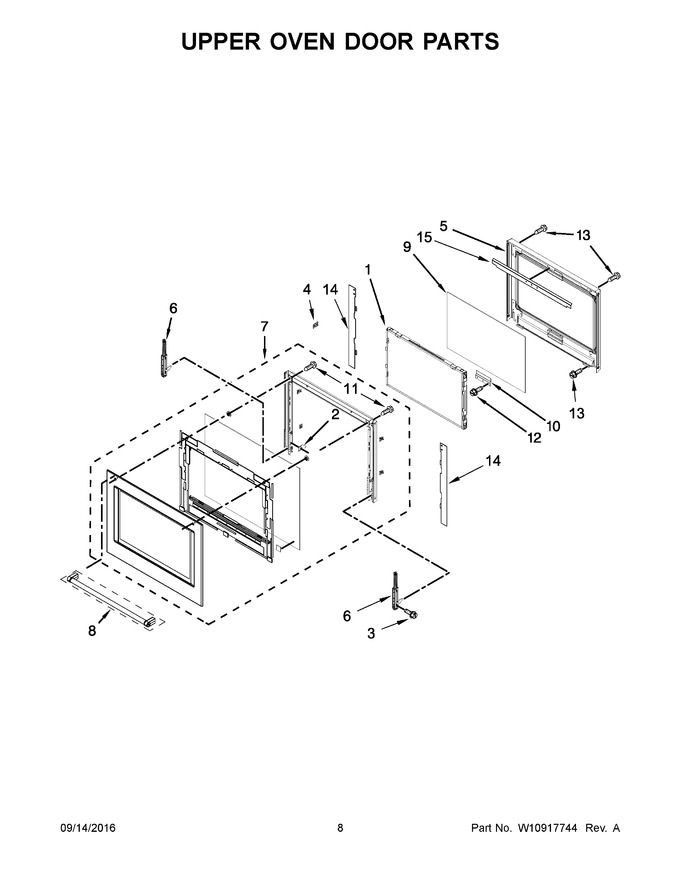

05 - Upper Oven Door Parts
06 - Internal Oven Parts
07 - Optional Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WPW10347597 | Assembly, Window Pack (Replaces: W10347597) |
|
$ 264.66 | |||||
| 2 | W10812024 | Spring, Door Glass Fixation (Replaces: W10284285) |
|
$ 149.18 | |||||
| 3 | WP3196183 | Screw (Replaces: 3196183) |
|
Immediately | $ 7.36 | ||||
| 4 | W11025615 | Clip, Spring Metal (Replaces: W10653954) |
|
Immediately | $ 158.53 | ||||
| 5 | WPW10320793 | Assembly, Liner (Replaces: W10320793) |
|
$ 303.61 | |||||
| 6 | W11642291 | Hinge, Door (Replaces: W10639067) |
|
$ 74.92 | |||||
| 7 | W10774423 | Assembly, Door (stainless) (Replaces: W10615245) |
|
$ 940.15 | |||||
| 8 | W11525064 | Assembly, Handle (stainless) (Replaces: W10640874) |
|
$ 215.08 | |||||
| 9 | W10829001 | Glass, Inner (Replaces: W10678525) |
|
$ 187.70 | |||||
| 10 | W10853628 | Bracket, Glass (Replaces: W10284297) |
|
$ 147.47 | |||||
| 11 | W10831019 | Screw (Replaces: W10480830) |
|
Immediately | $ 7.44 | ||||
| 12 | WP90767 | Screw (Replaces: 7101P426-60) |
|
Immediately | $ 7.43 | ||||
| 13 | WPY706189 | Screw (Replaces: 7101P427-60) |
|
Immediately | $ 6.80 | ||||
| 14 | W10687815 | Extension, Side Rail (left) |
|
$ 64.51 | |||||
| 15 | W10669415 | Shield, Door Liner |
|
$ 62.60 | |||||
| 14A | W10687814 | Extension, Side Rail (right) |
|
$ 64.51 |
