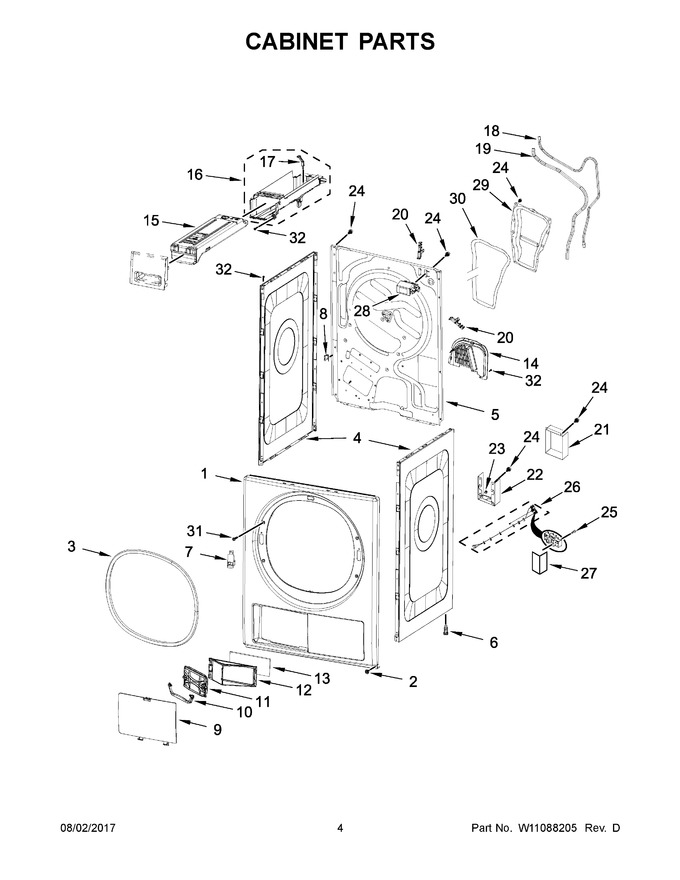

03 - Cabinet Parts


04 - Base Parts


05 - Motor Parts


06 - Drum And Bulkhead Parts


07 - Door Parts


08 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11089032		Panel, Front (white)   (Replaces: W10749940)				$ 208.99
2	251920100121		Screw				$ 11.78
3	W10713648		Seal (front Panel - Door)				$ 43.15
4	W11086536		Panel, Side (white)   (Replaces: W10783931)			Immediately	$ 251.05
5	W10869854		Panel - Rear, Dryer Bulkhead (white)				$ 251.05
6	461971007235		Foot			Immediately	$ 10.59
7	W11173155		Lock, Door   (Replaces: W10903697)			Immediately	$ 13.49
8	W10413565		Clip, Grounding				$ 21.97
9	W10590597		Filter Door (front Panel)				$ 38.08
10	W10354762		Filter, Handle				$ 70.43
11	W11382898		Filter, Cover   (Replaces: W10878816)			Immediately	$ 153.53
12	W11382898		Filter, Frame   (Replaces: W10716908)			Immediately	$ 153.53
13	W11382898		Filter, Foam   (Replaces: W10716911)			Immediately	$ 153.53
14	W10869901		Access Door (pump - Rear Panel)				$ 80.84
15	W10572507		Tank, Water				$ 103.34
16	W10869879		Housing, Water Tank (includes Inflow Pipe)				$ 74.73
17	W10629345		Pipe, Water Tank Inflow				$ 104.50
18	461970110583		Hose (inflow To Pump)				$ 33.37
19	461970110592		Hose, Over Fill (water Tank To Pump)			Immediately	$ 29.12
20	W10877423		Bracket, Hose				$ 21.56
21	W11024654		Cover, Terminal Box				$ 89.46
22	W10867297		Housing, Terminal Box		Appelez-nous	-
23	W10901033		Screw		Appelez-nous	-
24	251915100047		Screw		Appelez-nous	-
25	W10910838		Screw				$ 20.48
26	W10893552		Harness, Terminal Block				$ 177.85
27	W10913553		Insulator, Terminal Block Harness				$ 102.47
28	WPW10367632		Filter, Rfi   (Replaces: 461970255241)				$ 115.50
29	W10730860		Cover, Heater				$ 231.28
30	461970110931		Seal, Heater Cover				$ 105.82
31	W10658549		Screw				$ 19.79
32	251925600056		Screw		Appelez-nous	-
