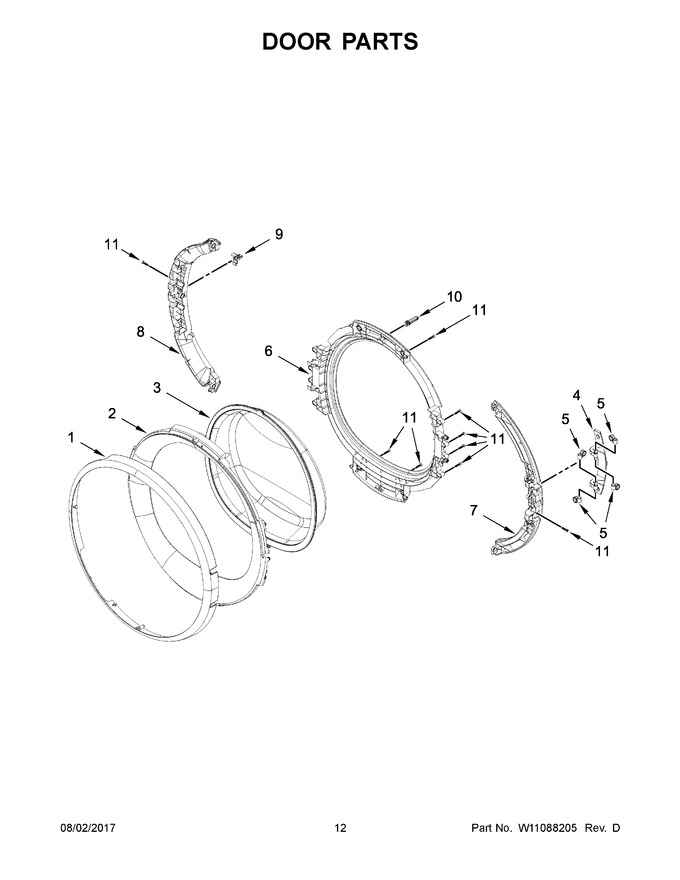

Diagram for 07 - Door Parts
07 - Door Parts

Diagram for 08 - Optional Parts (not Included)
08 - Optional Parts (not Included)


New Model Search:


1-844-510-2000
< Back to Home
Keyword Search:

Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 W11246416 Door, Outer Trim Ring   (Replaces: W10674917) Special Order $ 359.42

2 W11096641 Door, Inner Trim   (Replaces: W10615846) Special Order $ 87.45

3 W10615849 Door, Glass Appelez-nous -
4 W10590599 Hinge, Door Special Order $ 69.80

5 461971424051 Bushing, Hinge (outer) Special Order $ 23.74

6 W10615845 Door, Inner Appelez-nous -
7 W10615854 Door, Inner (hinge) In-Stock Immediately $ 73.34

8 W10615855 Door, Inner (lock) In-Stock Immediately $ 73.34

9 W11712578 Lock, Door   (Replaces: 461970109981) Special Order $ 13.98

10 W11398789 Pin, Run/stop   (Replaces: W10693989) In-Stock Immediately $ 26.98

11 251921201061 Screw Special Order $ 23.58


    View Diagram in Separate Window     Print Icon   Print Part List

Diagram for WHD5090GW0
