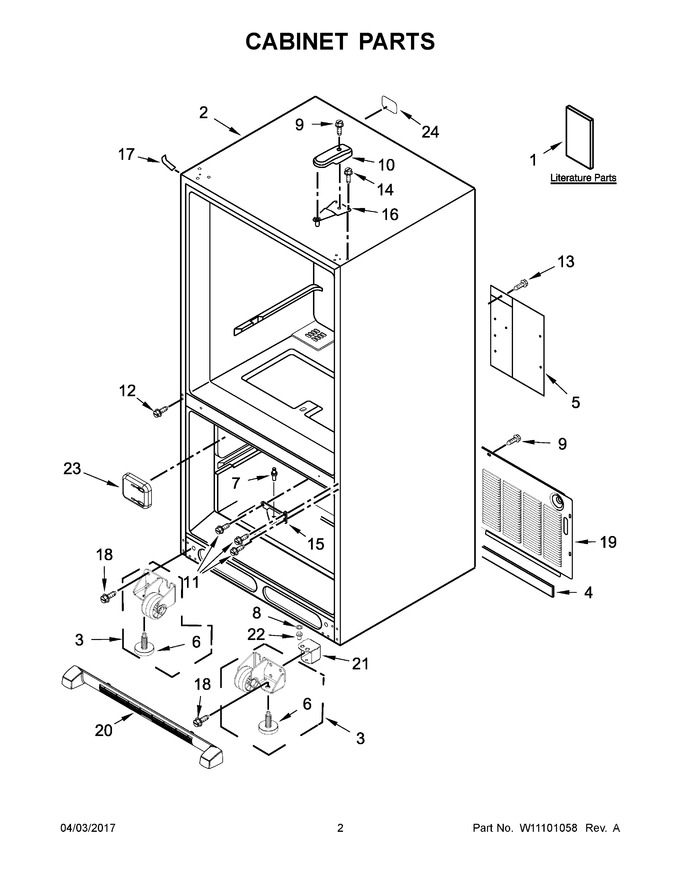

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11025376 | Use And Care Guide |
|
- | |||||
| 2 | N/P | Cabinet (not A Servicable Part) |
|
- | |||||
| 3 | W11820444 | Assembly, Roller (left Hand) (Replaces: W10515763) |
|
Immediately | $ 33.62 | ||||
| 4 | B5759655 | Gasket |
|
$ 11.73 | |||||
| 5 | W11684617 | Cover, Water Valve (Replaces: W10217701) |
|
$ 19.22 | |||||
| 6 | WPW10141622 | Brake, Roller (Replaces: W10141622) |
|
Immediately | $ 7.42 | ||||
| 7 | WP67006744 | Pin, Center Hinge (Replaces: 10351005) |
|
$ 7.81 | |||||
| 8 | WPM0274062 | Shim (black) (Replaces: M0274062) |
|
Immediately | $ 22.16 | ||||
| 9 | WP8281196 | Screw (Replaces: 12992602) |
|
Immediately | $ 6.80 | ||||
| 10 | W11106366 | Cover, Hinge (grey) (Replaces: 12477601AP) |
|
$ 68.24 | |||||
| 11 | WP489349 | Screw (Replaces: 12990101) |
|
Immediately | $ 7.59 | ||||
| 12 | WP98165 | Screw (Replaces: 12990521) |
|
$ 7.71 | |||||
| 13 | 67006425 | Screw (Replaces: 12990511) |
|
Immediately | $ 6.57 | ||||
| 14 | WP489349 | Screw (Replaces: 12992403) |
|
Immediately | $ 7.59 | ||||
| 15 | W11689473 | Hinge, Center (grey) (Replaces: 12607103AP) |
|
$ 62.81 | |||||
| 16 | WP12566606ED | Hinge, Top (Replaces: 12566606ED) |
|
Immediately | $ 42.42 | ||||
| 17 | WP12587703AP | Cover, Corner (grey) (Replaces: 12587703AP) |
|
$ 7.26 | |||||
| 18 | 67006564 | Screw (Replaces: W10709365) |
|
Immediately | $ 7.34 | ||||
| 19 | W10210978 | Cover, Unit |
|
$ 181.60 | |||||
| 20 | WPW10534165 | Grille, Toe (grey) (Replaces: W10534165) |
|
Immediately | $ 62.66 | ||||
| 21 | W10617441 | Hinge, Bottom (grey) |
|
$ 18.86 | |||||
| 22 | 67007018 | Pin, Bottom Hinge (Replaces: 10200802) |
|
Immediately | $ 7.76 | ||||
| 23 | WP67001098 | Cover, Fill Tube (Replaces: 12477501) |
|
$ 7.59 | |||||
| 24 | W11685757 | Label, Fill Tube (Replaces: 12249902) |
|
$ 6.67 | |||||
| 1A | W11043933 | Energy Guide |
|
- | |||||
| 1B | W10517966 | Tech Sheet |
|
- | |||||
| 3A | W11820445 | Assembly, Roller (right Hand) (Replaces: W10515762) |
|
Immediately | $ 33.62 |
