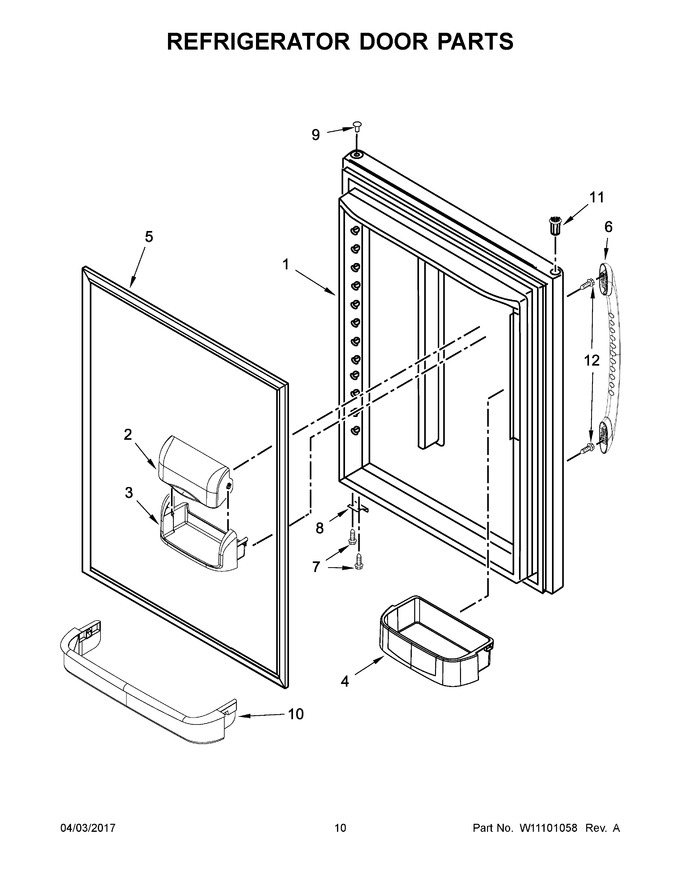

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 13107553SQ | Door, Refrigerator (stainless) (Replaces: 13107553S) |
|
$ 1,180.63 | |||||
| 2 | WP67003637 | Door, Dairy (Replaces: 12804701SP) |
|
Immediately | $ 74.40 | ||||
| 3 | WP67001279 | Tray, Dairy (Replaces: 12369502SP) |
|
Immediately | $ 79.21 | ||||
| 4 | WP67001021 | Bucket, Medium (Replaces: 12557204) |
|
$ 76.46 | |||||
| 5 | W11676571 | Gasket, Door (grey) (Replaces: W10443310) |
|
Immediately | $ 205.07 | ||||
| 6 | W11351147 | Handle, Door (stainless) (Replaces: W10223019) |
|
$ 178.40 | |||||
| 7 | WP98165 | Screw (Replaces: 12990504) |
|
$ 7.71 | |||||
| 8 | W11401472 | Stop, Door (grey) (Replaces: 10447114) |
|
Immediately | $ 21.20 | ||||
| 9 | WP12246610 | Plug, Button (grey) (Replaces: 12246610) |
|
Immediately | $ 7.34 | ||||
| 10 | 67001139 | Retainer, Door (Replaces: 12557904) |
|
Immediately | $ 94.31 | ||||
| 11 | 10961006AP | Bushing (grey) |
|
$ 8.69 | |||||
| 12 | W10267047 | Screw (Replaces: W10201588) |
|
$ 12.12 | |||||
| 4A | 67001141 | Bucket, Small (Replaces: 12557202) |
|
Immediately | $ 71.02 |
