SELECT A DIAGRAM

01 - Cover Sheet

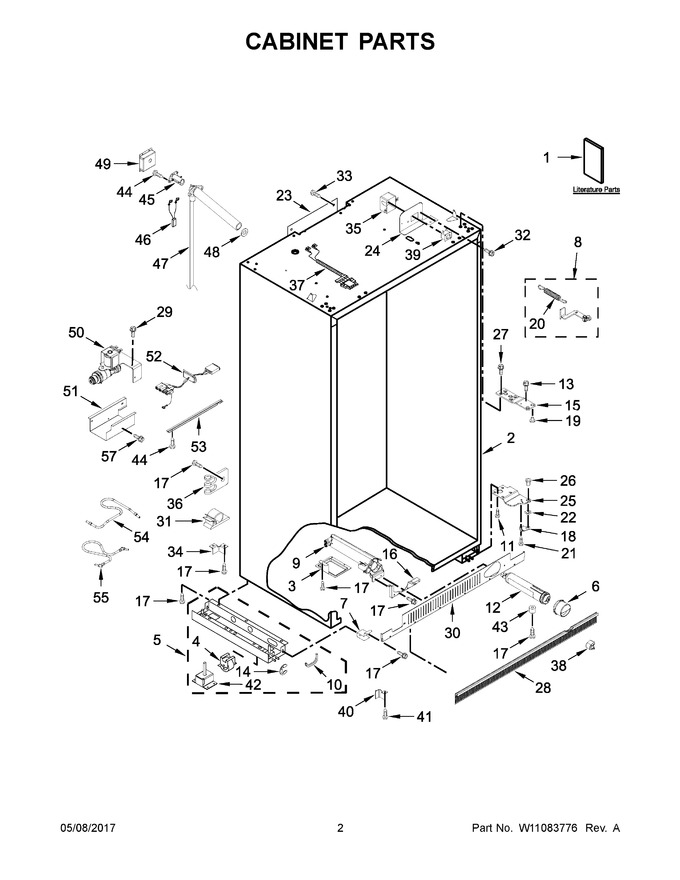

02 - Cabinet Parts


03 - Cabinet Trim Parts


04 - Refrigerator Liner Parts


05 - Freezer Liner And Icemaker Parts


06 - Refrigerator Shelf Parts


07 - Freezer Shelf Parts


08 - Refrigerator Door Parts


09 - Freezer Door Parts


10 - Top Grille And Unit Cover Parts


11 - Upper Unit Parts


12 - Lower Unit And Tube Parts


13 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10763009		Use And Care Guide		Appelez-nous	-
2	N/P		Cabinet (not Serviced)		Appelez-nous	-
3	2318189		Tray, Filter Drip				$ 133.86
4	WPW10138054		Assembly, Roller   (Replaces: W10138054)				$ 40.81
5	W10860229		Support Base Assembly (left Hand)   (Replaces: W10279275)				$ 343.65
6	W11238395		Cap, Water Filter (black)   (Replaces: W10797527)			Immediately	$ 45.61
7	W10839844		Bracket, Grill Mounting   (Replaces: 2307640)				$ 38.93
8	W10121047		Assembly, Light Switch Cam (left Hand)				$ 80.21
9	WPW10121140		Housing, Water Filter   (Replaces: W10121140)			Immediately	$ 243.77
10	2307584		Grommet, Crossover Tube				$ 21.06
11	3400525		Screw				$ 12.83
12	W10754687		Filter, Water		Appelez-nous	-
13	WP8281164		Screw (stainless)   (Replaces: 8281164)				$ 10.20
14	2006841		Ring, Retainer				$ 83.39
15	2252291		Hinge, Top (left Hand)				$ 71.42
16	W11755873		Bracket, Filter   (Replaces: W10674648)				$ 72.30
17	WP489464		Screw   (Replaces: W10001250)			Immediately	$ 7.54
18	WP2004994		Lock, Bushing   (Replaces: 2004994)			Immediately	$ 7.55
19	W11500952		Bushing, Top Hinge   (Replaces: W10484913)			Immediately	$ 31.27
20	W11805224		Spring, Door Closure (green)   (Replaces: 2221242)		Appelez-nous	-
21	W11769878		Screw   (Replaces: 3400230)				$ 11.49
22	WP489236		Ring, Bushing Retaining   (Replaces: 2005008)			Immediately	$ 11.50
23	2215612		Cover, Air Duct		Appelez-nous	-
24	W10741112		Bracket, Switch (left Hand)				$ 60.63
25	2309472		Hinge, Bottom (freezer Side)		Appelez-nous	-
26	WP2302876		Bushing, Adjustable   (Replaces: 2302876)			Immediately	$ 81.65
27	W11721628		Screw   (Replaces: 8533913)			Immediately	$ 13.30
28	W10859915		Skirt, Bottom Grille   (Replaces: W10188551)				$ 224.36
29	00487294		Screw   (Replaces: 487294)				$ 157.58
30	W11739148		Grille, Bottom (black)   (Replaces: W10182718)				$ 193.13
31	W10663352		Clip				$ 19.72
32	WP965173		Screw   (Replaces: 487415)			Immediately	$ 10.68
33	WP1163283		Screw   (Replaces: 1163283)				$ 6.80
34	2006617		Bracket, Base Support (rear)		Appelez-nous	-
35	2215938		Cover, Switch				$ 85.30
36	WP488366		Clip, Water Tube   (Replaces: 2208136)				$ 10.73
37	W10780213		Assembly, Switch Wire				$ 117.82
38	WP2260503B		Button, Water Filter (black)   (Replaces: 2260503B)				$ 68.78
39	W11384469		Switch, Rocker Arm   (Replaces: 1118894)			Immediately	$ 35.18
40	2006616		Bracket, Base Support (left Hand)				$ 82.38
41	WPW10141604		Screw   (Replaces: W10141604)				$ 7.97
42	2005032		Leveler, Adjustable			Immediately	$ 180.06
43	2005433		Spacer				$ 21.00
44	W11624204		Screw   (Replaces: 486194)				$ 13.25
45	WP2221240		Heater, Fill Tube   (Replaces: 2221240)				$ 185.92
46	W10482373		Assembly, Fill Tube Heater Wire				$ 112.59
47	W11662302		Assembly, Water Inlet Tube   (Replaces: 2314049)		Appelez-nous	-
48	WP1106508		Gasket, Seal   (Replaces: 1106508)			Immediately	$ 9.39
49	2259064		Cover, Fill Tube Heater				$ 64.34
50	WP2307650		Valve, Solenoid   (Replaces: 2307650)			Immediately	$ 228.29
51	W10129653		Shield, Valve Electrical		Appelez-nous	-
52	W10279393		Assembly, Water Valve Wire				$ 141.36
53	2320559		Support, Valve				$ 79.91
54	W11565275		Tube, Filter Inlet   (Replaces: W10296807)				$ 61.10
55	W11533506		Tube, Filter Outlet   (Replaces: W10683737)				$ 29.84
15A	2252292		Hinge, Top (right Hand)				$ 79.91
1A	W10763010		Installation Instructions		Appelez-nous	-
1B	W10763008		Energy Guide		Appelez-nous	-
1C	W10763000		Wiring Diagram		Appelez-nous	-
1D	W10910737		Tech Sheet (english)		Appelez-nous	-
1E	W10910736		Tech Sheet (french)		Appelez-nous	-
24A	W10741111		Bracket, Switch (right Hand)				$ 60.63
25A	2309471		Hinge, Bottom (refrigerator Side)				$ 116.91
39A	W11457217		Switch, Rocker Arm (freezer)   (Replaces: 1115373)				$ 36.08
40A	2006556		Bracket, Base Support (right Hand)				$ 33.48
5A	W10860448		Support Base Assembly (right Hand)   (Replaces: W10138423)			Immediately	$ 344.70
8A	2324874		Assembly, Light Switch Cam (right Hand)				$ 97.43

    View Diagram in Separate Window       Print Part List
