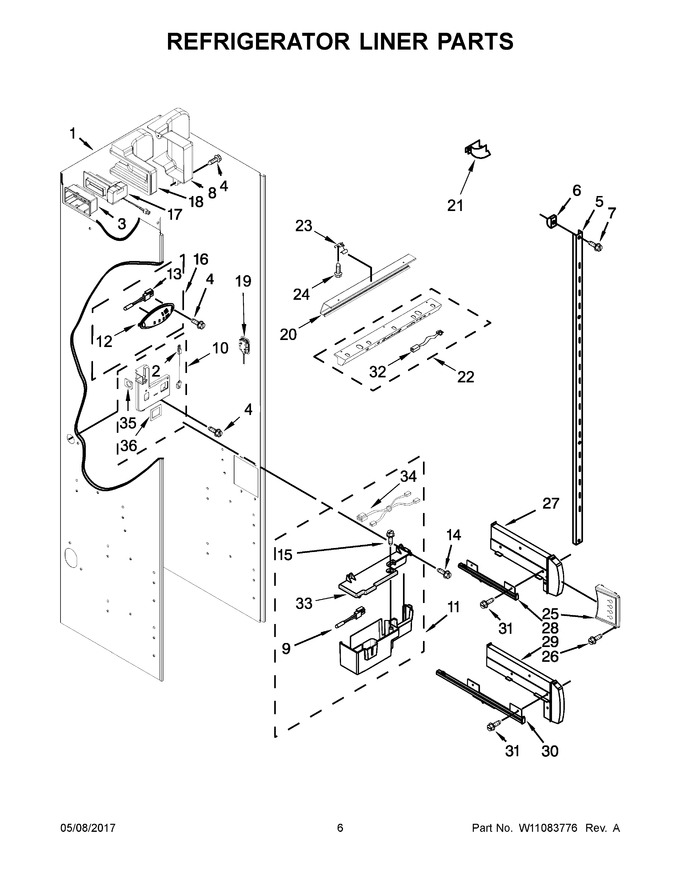

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | N/P | Liner (not Serviced) |
|
- | |||||
| 2 | WP2306010 | Thermistor (Replaces: 2306010) |
|
Immediately | $ 93.22 | ||||
| 3 | 2208970 | Duct, Air |
|
$ 136.26 | |||||
| 4 | WP488729 | Screw (stainless) (Replaces: 487539) |
|
Immediately | $ 7.45 | ||||
| 5 | WP2259077 | Ladder, Shelf (Replaces: 2259077) |
|
$ 74.30 | |||||
| 6 | 520965 | Support, Ladder |
|
$ 28.22 | |||||
| 7 | W10808292 | Screw |
|
- | |||||
| 8 | 2309087 | Cover, Air Diffuser |
|
- | |||||
| 9 | WP2302937 | Thermistor (Replaces: 2302937) |
|
$ 79.57 | |||||
| 10 | W10475010 | Assembly, Spacer |
|
$ 291.29 | |||||
| 11 | WPW10169528 | Assembly, Control Baffle (Replaces: W10169528) |
|
$ 303.82 | |||||
| 12 | WP2317844 | Cover, Thermistor (Replaces: 2317105) |
|
$ 10.24 | |||||
| 13 | WP2188820 | Thermistor (Replaces: 2188820) |
|
Immediately | $ 27.77 | ||||
| 14 | W11830745 | Screw (Replaces: 8533929) |
|
- | |||||
| 15 | W11624204 | Screw (Replaces: 486194) |
|
$ 13.25 | |||||
| 16 | WP2317844 | Assembly, Thermistor (Replaces: 2317844) |
|
$ 10.24 | |||||
| 17 | WP2221296 | Assembly, Air Baffle (Replaces: 2221296) |
|
Immediately | $ 371.32 | ||||
| 18 | WP2309222 | Assembly, Air Diffuser (Replaces: 2309222) |
|
$ 91.86 | |||||
| 19 | W11683242 | Assembly, Led Module (Replaces: W10843339) |
|
Immediately | $ 300.56 | ||||
| 20 | W10780415 | Bracket, Control Box |
|
- | |||||
| 21 | 2003577 | Guard, Air Return |
|
- | |||||
| 22 | W10798007 | Assembly, Control Box |
|
$ 507.64 | |||||
| 23 | 2317000 | Clip, Control Box |
|
- | |||||
| 24 | WP8281163 | Screw (stainless) (Replaces: 8281163) |
|
Immediately | $ 9.63 | ||||
| 25 | W10814805 | Assembly, User Interface (Replaces: W10760791) |
|
$ 346.16 | |||||
| 26 | WPW10142283 | Screw (white) (Replaces: W10142283) |
|
$ 9.30 | |||||
| 27 | 2256243 | Spacer, Meat Pan (left Hand) |
|
$ 74.74 | |||||
| 28 | 2302954 | Slide, Meat Pan (left Hand) |
|
$ 309.14 | |||||
| 29 | 2256223 | Spacer, Crisper (left Hand) |
|
$ 76.04 | |||||
| 30 | 2302956 | Slider, Crisper (left Hand) |
|
$ 268.86 | |||||
| 31 | WP8533928 | Screw (left Hand) (Replaces: 8533928) |
|
Immediately | $ 7.43 | ||||
| 32 | W10458299 | Wire, Jumper |
|
$ 25.93 | |||||
| 33 | 2302986 | Lid, Baffle |
|
- | |||||
| 34 | 2310205 | Assembly, Meat Pan Wire |
|
- | |||||
| 35 | W10475008 | Seal, Air Duct (round Hole) |
|
- | |||||
| 36 | 2259398 | Seal, Air Duct |
|
- | |||||
| 27A | 2256244 | Spacer, Meat Pan (right Hand) |
|
$ 93.33 | |||||
| 28A | 2302955 | Slide, Meat Pan (right Hand) |
|
$ 308.86 | |||||
| 29A | 2256222 | Spacer, Crisper (right Hand) |
|
$ 80.32 | |||||
| 30A | 2302957 | Slider, Crisper (right Hand) |
|
$ 205.50 | |||||
| 31A | W11830745 | Screw (right Hand) (Replaces: 8533929) |
|
- |
