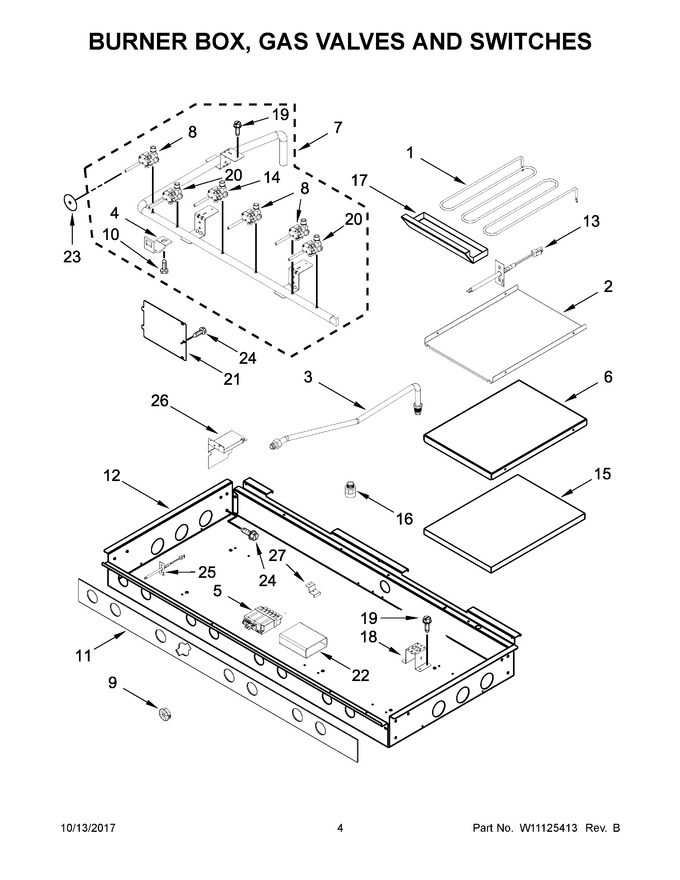

03 - Burner Box, Gas Valves And Switches


04 - 48" Chassis Parts


05 - 30" Oven Parts


06 - 18" Oven Parts


07 - Venting Parts


08 - 30" Oven Door Parts


09 - 18" Oven Door Parts


10 - 30" Internal Oven Parts


11 - 18" Internal Oven Parts


12 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10193014		Element, Griddle				$ 291.11
2	W10145620		Tray, Element Griddle		Appelez-nous	-
3	W10348600		Tube, Pressure Regulator				$ 186.51
4	WPW10432260		Bracket, Valve   (Replaces: W10432260)				$ 66.59
5	WPW10475147		Module, Spark   (Replaces: W10475147)			Immediately	$ 346.50
6	W10246074		Tray, Griddle Insulation		Appelez-nous	-
7	WPW10402608		Assembly, Manifold   (Replaces: W10402608)				$ 477.40
8	WPW10385582		Valve, Single   (Replaces: W10385582)			Immediately	$ 306.77
9	W10189097		Bushing, Burner Box				$ 7.20
10	W10189140		Screw				$ 6.14
11	W11688741		Insulation, Burner Box   (Replaces: W10160202)		Appelez-nous	-
12	W10371521		Box, Burner		Appelez-nous	-
13	W10319835		Sensor, Griddle				$ 215.35
14	WPW10385583		Valve, Simmer   (Replaces: W10385583)			Immediately	$ 298.89
15	W11684995		Insulation, Griddle   (Replaces: W10145621)		Appelez-nous	-
16	4453115		Adapter, Female				$ 114.03
17	W10276497		Tray, Griddle Drip				$ 363.63
18	W10560553		Bracket, Burner		Appelez-nous	-
19	4450800		Screw, Grounding				$ 12.12
20	WPW10371235		Valve, Dual   (Replaces: W10371235)			Immediately	$ 298.94
21	W10115843		Cover, Ignition		Appelez-nous	-
22	8287102		Insulation, Spark Module		Appelez-nous	-
23	W10189177		Seal, Switch Cover				$ 9.00
24	WP90767		Screw   (Replaces: 7101P426-60)			Immediately	$ 7.43
25	WPW10131825		Sensor   (Replaces: W10131825)			Immediately	$ 94.50
26	W10498404		Bracket, Spark Module				$ 164.19
27	W10308039		Bracket, Bake Alignement		Appelez-nous	-
NI	W10367100		Tube (right Front, Low)		Appelez-nous	-
NI	WPW10367099		Tube (right Rear)   (Replaces: W10367099)				$ 67.38
NI	N/P		Following Parts Not Illustrated		Appelez-nous	-
NI	W10367097		Tube (left Front, High)		Appelez-nous	-
NI	W10367096		Tube (left Front, Low)		Appelez-nous	-
NI	WPW10367095		Tube (left Rear)   (Replaces: W10367095)				$ 66.58
NI	W10367098		Tube (center Front)		Appelez-nous	-
NI	W10145492		Tube (center Rear)		Appelez-nous	-
NI	W10367101		Tube (right Front, High)				$ 70.64
