SELECT A DIAGRAM
New Model Search:

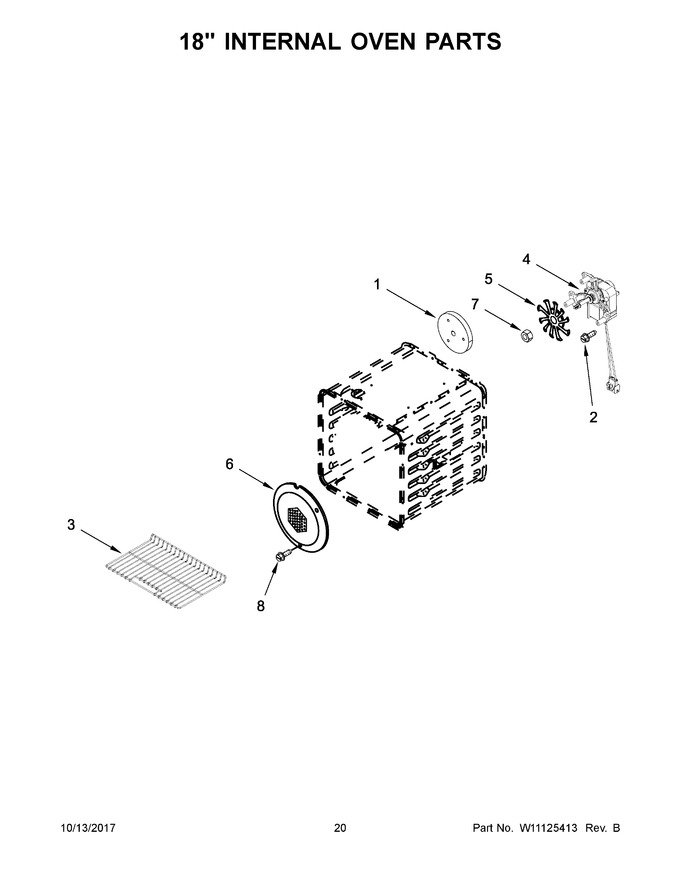

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11688507 | Insulation, Convection Cover (Replaces: W10282821) |
|
Immediately | $ 24.39 | ||||
| 2 | W10850807 | Screw (Replaces: W10720084) |
|
$ 6.99 | |||||
| 3 | W10570879 | Rack, Oven (18") |
|
$ 117.43 | |||||
| 4 | W10794440 | Motor, Convection (Replaces: W10631506) |
|
Immediately | $ 299.07 | ||||
| 5 | W10819914 | Blade, Fan (Replaces: W10631503) |
|
Immediately | $ 79.80 | ||||
| 6 | WPW10160821 | Cover, Fan (Replaces: W10160821) |
|
$ 257.03 | |||||
| 7 | W10794042 | Nut, Acorn (lh) (Replaces: W10631504) |
|
$ 11.83 | |||||
| 8 | WP4449154 | Screw (Replaces: 4449154) |
|
$ 7.34 |
