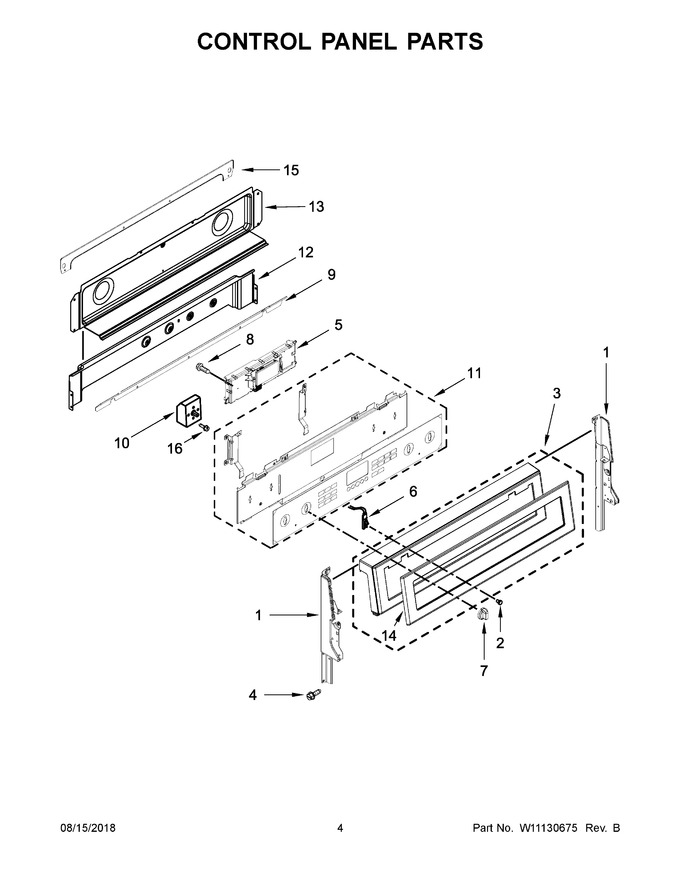

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10319109 | Support, Backguard (black (left)) |
|
$ 83.56 | |||||
| 2 | WP3196068 | Lens, Indicator (Replaces: 3196068) |
|
Immediately | $ 5.63 | ||||
| 3 | W11838051 | Assembly, Console (stainless) (Replaces: W11024861) |
|
$ 535.03 | |||||
| 4 | WP98008545 | Screw (black) (Replaces: 7101P633-60) |
|
$ 16.74 | |||||
| 5 | W11132199 | Control, Electric (Replaces: W11090052) |
|
$ 471.56 | |||||
| 6 | WP74004153 | Light, Indicator (Replaces: 7407P136-60) |
|
Immediately | $ 8.02 | ||||
| 7 | W11132201 | Knob (stainless) (Replaces: W10886657) |
|
Immediately | $ 83.52 | ||||
| 8 | WP7101P434-60 | Screw (Replaces: 7101P434-60) |
|
$ 6.57 | |||||
| 9 | WPW10299338 | Shield, Wire Cover (Replaces: W10299338) |
|
$ 86.94 | |||||
| 10 | WPW10312185 | Switch, Infinite (left Front) (Replaces: W10312185) |
|
Immediately | $ 138.94 | ||||
| 11 | W10903065 | Assembly, Membrane (includes Bracket) (stainless) |
|
$ 343.52 | |||||
| 12 | W10278697 | Shield, Vent |
|
Immediately | $ 165.00 | ||||
| 13 | W10776098 | Cover, Backguard |
|
$ 122.23 | |||||
| 14 | N/P | Skin, Console (not Serviced) |
|
- | |||||
| 15 | WPW10292689 | Cover, Wire Filler (Replaces: W10292689) |
|
$ 85.82 | |||||
| 16 | WP7101P309-60 | Screw (Replaces: 7101P309-60) |
|
Immediately | $ 6.57 | ||||
| 10A | W11661906 | Switch, Infinite (left Rear) (Replaces: W10843843) |
|
Immediately | $ 21.38 | ||||
| 10B | W10917724 | Switch, Infinite (right Front) (Replaces: W10437094) |
|
Immediately | $ 116.42 | ||||
| 10C | W10911303 | Switch, Infinite (right Rear) (Replaces: W10578768) |
|
Immediately | $ 103.74 | ||||
| 1A | W10319111 | Support, Backguard (black (right)) |
|
$ 43.80 |
