Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 W11051040 Lining, Door Special Order $ 270.90

2 W11132120 Glass, Inner   (Replaces: W11099272) Special Order $ 161.40

3 WPW10272708 Frame, Glass   (Replaces: W10272708) Special Order $ 154.74

4 WPW10292297 Screw   (Replaces: W10292297) In-Stock Immediately $ 6.80

5 W10485723 Retainer, Insulation Special Order $ 227.18

6 WPW10321271 Insulation, Door   (Replaces: W10321271) Special Order $ 89.26

7 W10647259 Receiver, Hinge   (Replaces: W10289077) In-Stock Immediately $ 8.39

8 W11132193 Panel, Outer Door (stainless)   (Replaces: W10888651) In-Stock Immediately $ 509.81

9 W10575917 Spacer, Vent Trim Special Order $ 11.94

10 WPW10485733 Hinge, Door (left)   (Replaces: W10485733) In-Stock Immediately $ 57.88

11 W11132203 Assembly, Door Handle (stainless)   (Replaces: W10904974) Special Order $ 189.89

12 W10831019 Screw   (Replaces: W10480830) In-Stock Immediately $ 7.44

13 7109P084-60 Washer, Fiber Appelez-nous -
14 W11160356 Assembly, Outer Door (stainless)   (Replaces: W10888652) Special Order $ 897.23

10A WPW10485732 Hinge, Door (right)   (Replaces: W10485732) In-Stock Immediately $ 50.18

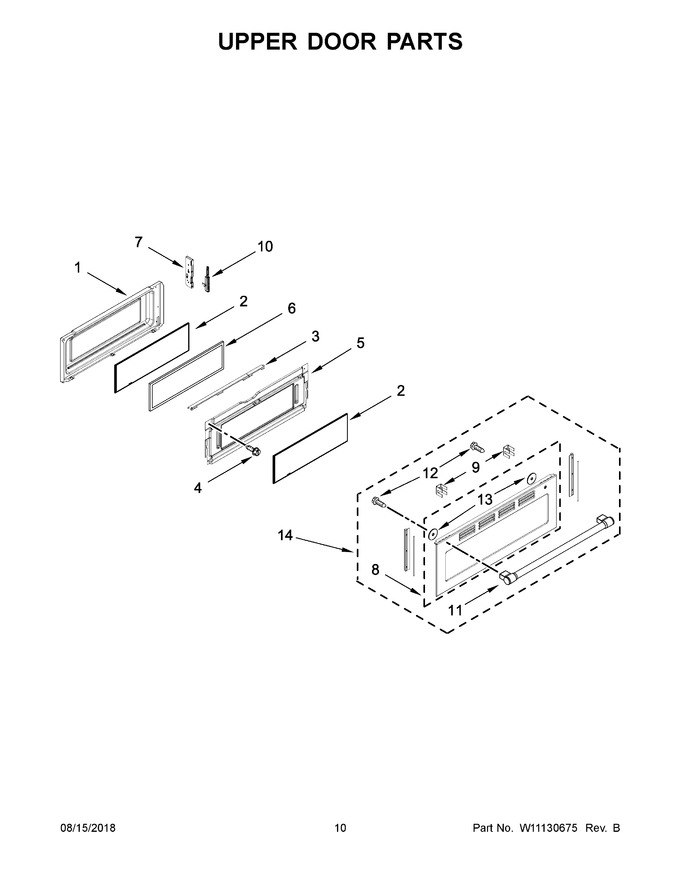

    View Diagram in Separate Window     Print Icon   Print Part List
