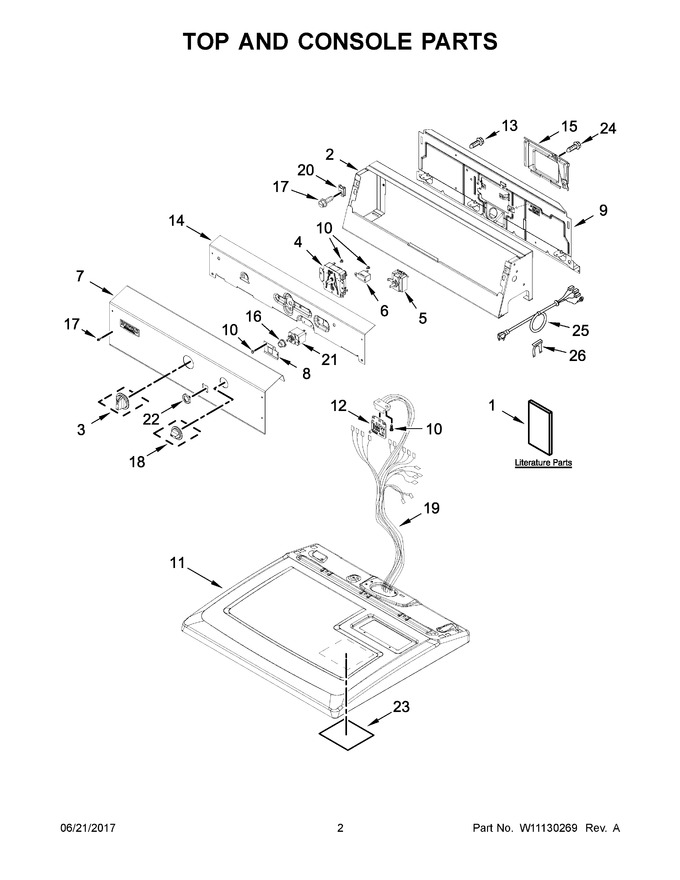

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11045709 | Installation Instructions |
|
- | |||||
| 2 | W11124005 | Console (Replaces: W10461095) |
|
$ 214.58 | |||||
| 3 | W11643382 | Knob (black) (Replaces: W11126770) |
|
Immediately | $ 36.18 | ||||
| 4 | WPW10185992 | Timer Assembly (60 Hz.) (Replaces: W10185992) |
|
Immediately | $ 164.31 | ||||
| 5 | WP8578352 | Switch, Rotary (5 Pos) (Replaces: 8578352) |
|
$ 214.07 | |||||
| 6 | WP694419 | Buzzer, Mini (Replaces: 694419) |
|
$ 120.65 | |||||
| 7 | W11158120 | Fascia (Replaces: W10918902) |
|
$ 639.33 | |||||
| 8 | W10831297 | Bracket, Push To Start |
|
- | |||||
| 9 | 285909 | Panel, Rear Console (Replaces: 8317305) |
|
$ 235.28 | |||||
| 10 | WP90767 | Screw (Replaces: 8533971) |
|
Immediately | $ 7.43 | ||||
| 11 | W10772880 | Top (white) |
|
$ 157.51 | |||||
| 12 | WPW10476828 | Control, Electronic (Replaces: W10476828) |
|
Immediately | $ 296.94 | ||||
| 13 | WP488729 | Screw (Replaces: 3390647) |
|
Immediately | $ 7.45 | ||||
| 14 | W10738304 | Bracket, Back |
|
- | |||||
| 15 | WPW10119283 | Cover, Terminal Block (Replaces: W10286180) |
|
$ 121.29 | |||||
| 16 | W11112209 | Button, Push To Start |
|
$ 47.84 | |||||
| 17 | WPW10131119 | Screw (Replaces: W10386302) |
|
$ 6.57 | |||||
| 18 | W11103226 | Knob (black) (Replaces: W11126769) |
|
$ 64.13 | |||||
| 19 | W10767817 | Harness, Main |
|
$ 155.24 | |||||
| 20 | WPW10131123 | Nut, "u (Replaces: W10131123) |
|
$ 7.29 | |||||
| 21 | WP3398094 | Switch, Push-to-start (Replaces: 3398094) |
|
Immediately | $ 116.45 | ||||
| 22 | W10510149 | Bezel - Pts |
|
Immediately | $ 25.77 | ||||
| 23 | W11668653 | Panel, Dampening (Replaces: W10836097) |
|
$ 27.86 | |||||
| 24 | WP3390631 | Screw (Replaces: 3390631) |
|
$ 7.43 | |||||
| 25 | W11095079 | Cord, Power (Replaces: W10712171) |
|
Immediately | $ 124.42 | ||||
| 26 | W11712577 | Clip, Strain Relief (Replaces: 694415) |
|
Immediately | $ 6.99 | ||||
| 1A | W11045671 | Use And Care Guide |
|
- | |||||
| 1B | W10768746 | Wiring Diagram |
|
- | |||||
| 1C | W11045673 | Quick Start Guide |
|
- | |||||
| 1D | W11133084 | Energy Guide |
|
- |
