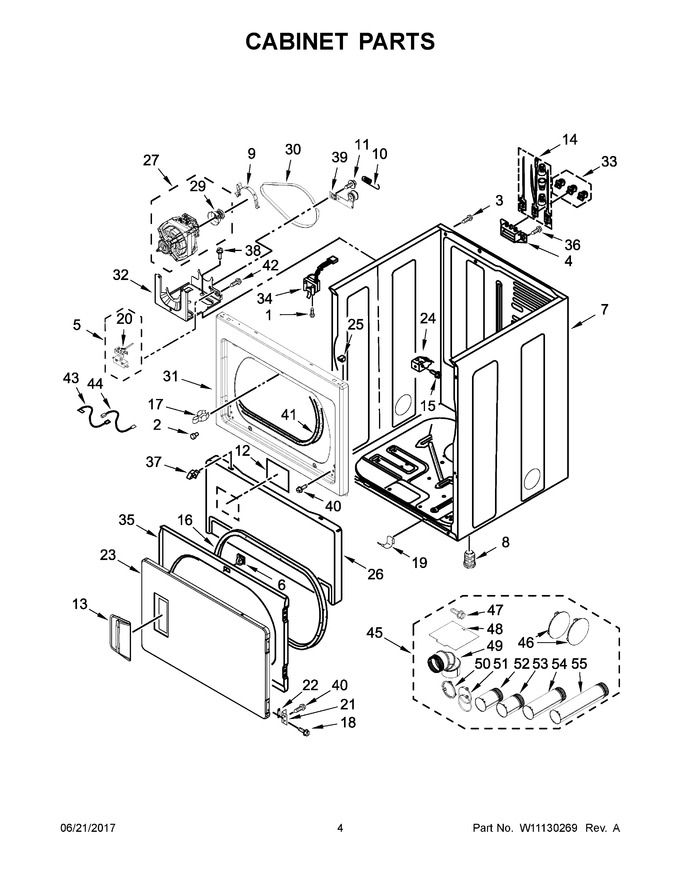

03 - Cabinet Parts
04 - Bulkhead Parts
05 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WP3395530 | Screw (Replaces: 697773) |
|
$ 7.71 | |||||
| 2 | 693152 | Bumper |
|
$ 10.36 | |||||
| 3 | W10850756 | Screw (Replaces: W10773242) |
|
$ 7.38 | |||||
| 4 | WP3397659 | Block, Terminal (Replaces: 3397659) |
|
$ 21.75 | |||||
| 5 | 279782 | Switch Assembly (Replaces: 8066134) |
|
Immediately | $ 55.21 | ||||
| 6 | 279570 | Assembly, Door Catch (Replaces: 3392538) |
|
Immediately | $ 8.00 | ||||
| 7 | W11417441 | Cabinet (white) (Replaces: W10547697) |
|
$ 396.15 | |||||
| 8 | W11025920 | Foot, Dryer (Replaces: W10561321) |
|
Immediately | $ 22.22 | ||||
| 9 | WPW10121316 | Clamp, Motor Mount (Replaces: W10121316) |
|
Immediately | $ 24.26 | ||||
| 10 | WPW10446781 | Spring, Idler (Replaces: W10446781) |
|
Immediately | $ 23.22 | ||||
| 11 | WP3389420 | Screw (Replaces: 3389420) |
|
$ 7.76 | |||||
| 12 | W11668653 | Panel, Dampening (Replaces: W10836097) |
|
$ 27.86 | |||||
| 13 | W11209427 | Handle, Door (Replaces: W10116360) |
|
Immediately | $ 71.59 | ||||
| 14 | 279318 | Terminal, Brass And Tinned (includes Terminal Block Screw Kit) |
|
Immediately | $ 95.44 | ||||
| 15 | 681615 | Screw (Replaces: 3391915) |
|
$ 13.11 | |||||
| 16 | WP3390735 | Seal, Door (Replaces: 3390735) |
|
$ 123.42 | |||||
| 17 | 279570 | Strike, Door (Replaces: 696144) |
|
Immediately | $ 8.00 | ||||
| 18 | WP488627 | Screw (Replaces: 342055) |
|
$ 7.30 | |||||
| 19 | WPW10291934 | Clip (Replaces: W10291934) |
|
$ 7.33 | |||||
| 20 | WP8066120 | Lever Switch (Replaces: 8066120) |
|
Immediately | $ 31.29 | ||||
| 21 | WPW10279703 | Hinge, Assembly (silver) (Replaces: W10279703) |
|
$ 68.25 | |||||
| 22 | W10191265 | Plug, Hinge (white) |
|
$ 41.84 | |||||
| 23 | W11663440 | Door, Front (Replaces: W10322546) |
|
$ 245.11 | |||||
| 24 | 3391846 | Clip, Front Panel |
|
$ 19.99 | |||||
| 25 | WP345670 | Lock Top (Replaces: 345670) |
|
Immediately | $ 7.28 | ||||
| 26 | WP3406797 | Panel, Toe (white) (Replaces: 697215) |
|
$ 225.23 | |||||
| 27 | W10841144 | Motor (Replaces: W10396031) |
|
Immediately | $ 268.44 | ||||
| 28 | WP3393657 | Restrainer, Belt (Replaces: 3393657) |
|
Immediately | $ 125.17 | ||||
| 29 | WP8066184 | Pulley, Motor (Replaces: 3394341) |
|
Immediately | $ 46.15 | ||||
| 30 | WPW10131172 | Belt, Drive (Replaces: W10131172) |
|
Immediately | $ 40.19 | ||||
| 31 | W10242810 | Panel, Front (white) (Replaces: W10192882) |
|
$ 348.00 | |||||
| 32 | WP3387118 | Bracket, Motor (Replaces: 3387118) |
|
$ 126.24 | |||||
| 33 | 279393 | Screw Kit, Terminal Block |
|
Immediately | $ 50.09 | ||||
| 34 | WP3406107 | Switch, Door (Replaces: 3406107) |
|
Immediately | $ 28.08 | ||||
| 35 | 280083 | Door, Rear (Replaces: W10323061) |
|
$ 271.23 | |||||
| 36 | WP308685 | Screw (Replaces: 3393008) |
|
Immediately | $ 7.08 | ||||
| 37 | WP3388229 | Retainer (Replaces: 3388229) |
|
Immediately | $ 7.99 | ||||
| 38 | WP681414 | Screw (Replaces: 343641) |
|
Immediately | $ 7.62 | ||||
| 39 | WPW10344193 | Pulley-idler Assembly (Replaces: W10344193) |
|
Immediately | $ 79.16 | ||||
| 40 | WP308685 | Screw (Replaces: 3357011) |
|
Immediately | $ 7.08 | ||||
| 41 | WP3387242 | Seal, Front Panel (Replaces: 3387242) |
|
Immediately | $ 29.24 | ||||
| 42 | WP98129 | Screw (Replaces: 98129) |
|
$ 7.36 | |||||
| 43 | 3398948 | Wire, Jumper (broken Belt Switch) |
|
$ 58.19 | |||||
| 44 | W10167612 | Wire, Belt Switch |
|
$ 12.08 | |||||
| 45 | W10470674 | Dryer Exhaust Kit (for Side & Bottom Venting), Kit, 4-way Venting |
|
Immediately | $ 80.59 | ||||
| 46 | WPW10404617 | Plug, Multivent (midnight Grey) (Replaces: W10404617) |
|
$ 68.02 | |||||
| 47 | WP488729 | Screw (Replaces: 488729) |
|
Immediately | $ 7.45 | ||||
| 48 | WPW10354249 | Plate, Cover (Replaces: W10354249) |
|
$ 8.47 | |||||
| 49 | WPW10416072 | Elbow (Replaces: W10416072) |
|
$ 25.34 | |||||
| 50 | WPW10344699 | Collar, Duct (Replaces: W10344699) |
|
$ 77.13 | |||||
| 51 | WP696392 | Hose Clamp (Replaces: 696392) |
|
$ 8.17 | |||||
| 52 | WPW10331278 | Pipe, Exhaust (short) (Replaces: W10331278) |
|
$ 74.61 | |||||
| 53 | WP8563748 | Pipe, Exhaust (Replaces: 8563748) |
|
$ 12.20 | |||||
| 54 | WP8563747 | Pipe, Exhaust (medium) (Replaces: 8563747) |
|
$ 86.36 | |||||
| 55 | WP8563749 | Pipe, Exhaust (long) (Replaces: 8563749) |
|
$ 83.92 |
