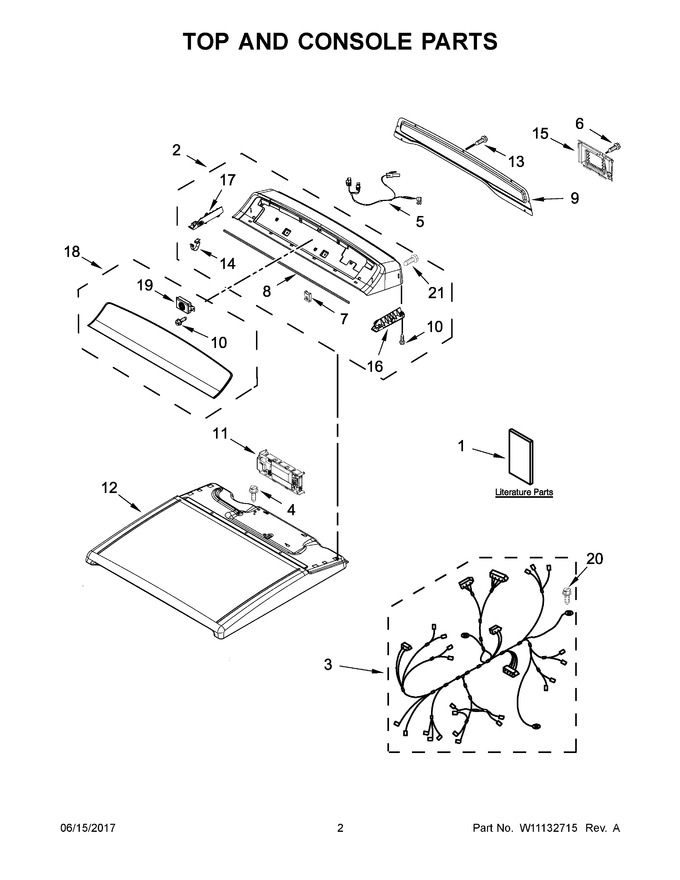

02 - Top And Console Parts


03 - Cabinet Parts


04 - Bulkhead Parts


05 - Door Parts


06 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10725269		Installation Instructions		Appelez-nous	-
2	W11050696		Console Assembly (complete) (white)   (Replaces: W10622070)				$ 154.98
3	W10901572		Wiring Harness, Main		Appelez-nous	-
4	WP9740848		Screw   (Replaces: 9740848)			Immediately	$ 7.72
5	W10837032		Harness, User Interface		Appelez-nous	-
6	WP3390631		Screw   (Replaces: 3390631)				$ 7.43
7	W11213336		Nut, "u   (Replaces: W10298336)				$ 7.32
8	W11721376		Seal, Console   (Replaces: W10726632)		Appelez-nous	-
9	W10622402		Panel, Rear Console		Appelez-nous	-
10	W11631670		Screw   (Replaces: 8281217)				$ 13.25
11	W11133021		Control, Electronic   (Replaces: W11098430)				$ 449.27
12	W11227373		Top (white)   (Replaces: W10508981)				$ 230.05
13	W10704731		Screw		Appelez-nous	-
14	WP8312709		Clip, Console   (Replaces: 8312709)			Immediately	$ 14.93
15	WPW10316167		Cover, Terminal Block   (Replaces: W10316167)				$ 93.64
16	W10631629		Console Mount (right)		Appelez-nous	-
17	W10631630		Console Mount (left)				$ 138.27
18	W11098462		Fascia		Appelez-nous	-
19	W11123146		Assembly, Speaker   (Replaces: W10568405)				$ 72.84
20	W10850756		Screw   (Replaces: W10773242)				$ 7.38
21	W10853898		Screw   (Replaces: W10219342)			Immediately	$ 7.36
1A	W11089270		Guide, Use And Care		Appelez-nous	-
1B	W11089260		Tech Sheet		Appelez-nous	-
1C	W11089274		Quickstart Guide		Appelez-nous	-
1D	W10901544		Wiring Diagram		Appelez-nous	-
