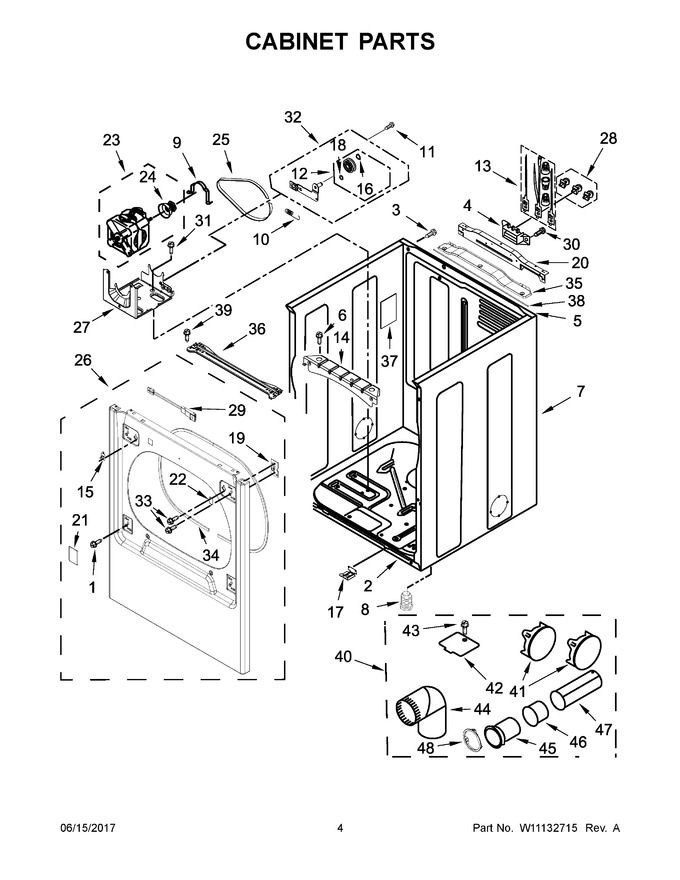

03 - Cabinet Parts
04 - Bulkhead Parts
05 - Door Parts
06 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 6-920119 | Screw |
|
- | |||||
| 2 | W10613683 | Base, Cabinet |
|
$ 181.41 | |||||
| 3 | W10636208 | Screw |
|
- | |||||
| 4 | WP3397659 | Block, Terminal (Replaces: 3397659) |
|
$ 21.75 | |||||
| 5 | W10824895 | Panel, Rear |
|
$ 279.99 | |||||
| 6 | WP693995 | Screw (Replaces: 693995) |
|
Immediately | $ 6.80 | ||||
| 7 | W10633648 | Cabinet (white (without Cutout)) |
|
$ 258.81 | |||||
| 8 | 49621 | Foot, Dryer (Replaces: 3392100) |
|
Immediately | $ 7.70 | ||||
| 9 | WPW10121316 | Clamp, Motor Mount (Replaces: W10121316) |
|
Immediately | $ 24.26 | ||||
| 10 | WPW10446781 | Spring, Idler (Replaces: W10446781) |
|
Immediately | $ 23.22 | ||||
| 11 | WP3389420 | Screw (Replaces: 3389420) |
|
$ 7.76 | |||||
| 12 | 279640 | Assembly, Pulley (Replaces: W10468057) |
|
Immediately | $ 29.26 | ||||
| 13 | 279318 | Terminal, Brass And Tinned (includes Terminal Block Screw Kit) |
|
Immediately | $ 95.44 | ||||
| 14 | W11282908 | Spacer Bracket, Upper (Replaces: W10632348) |
|
- | |||||
| 15 | W11163826 | Strike (Replaces: W10778071) |
|
$ 23.95 | |||||
| 16 | WPW10512946 | Washer, Tri Ring (Replaces: W10512946) |
|
Immediately | $ 8.71 | ||||
| 17 | W10632347 | Spacer Bracket, Lower |
|
- | |||||
| 18 | WPW10121334 | Washer (Replaces: W10121334) |
|
Immediately | $ 6.80 | ||||
| 19 | W10596959 | Bracket, Hinge |
|
$ 20.00 | |||||
| 20 | W10622391 | Bracket, Rear Panel Upper |
|
- | |||||
| 21 | W10590953 | Plug, Hinge (white) |
|
- | |||||
| 22 | WPW10111888 | Plug, Strike (Replaces: W10111888) |
|
$ 26.72 | |||||
| 23 | W11105178 | Assembly, Motor (Replaces: W10806759) |
|
Immediately | $ 301.73 | ||||
| 24 | W11568637 | Pulley, Motor (Replaces: W10669447) |
|
$ 77.92 | |||||
| 25 | W10849499 | Belt, Drive (Replaces: W10610882) |
|
Immediately | $ 63.17 | ||||
| 26 | W10875869 | Panel, Front (white) (Replaces: W10861063) |
|
$ 288.53 | |||||
| 27 | W10578053 | Bracket, Motor Mounting |
|
$ 83.00 | |||||
| 28 | 279393 | Screw Kit, Terminal Block |
|
Immediately | $ 50.09 | ||||
| 29 | W11036551 | Switch, Door (Replaces: W10459026) |
|
Immediately | $ 66.83 | ||||
| 30 | WP308685 | Screw (Replaces: 3393008) |
|
Immediately | $ 7.08 | ||||
| 31 | WP681414 | Screw (Replaces: 343641) |
|
Immediately | $ 7.62 | ||||
| 32 | W10837240 | Assembly, Idler (Replaces: W10547287) |
|
Immediately | $ 32.20 | ||||
| 33 | WP3400805 | Screw (zinc) (Replaces: 3400805) |
|
$ 6.80 | |||||
| 34 | WP3387242 | Seal, Front Panel (Replaces: 3387242) |
|
Immediately | $ 28.28 | ||||
| 35 | W10651902 | Bulkhead Bracket, Rear Panel (white) (Replaces: W10672088) |
|
- | |||||
| 36 | W10722502 | Brace, Cab And Seal Assembly |
|
- | |||||
| 37 | W11409002 | Pad, Foam (Replaces: W10504381) |
|
$ 21.38 | |||||
| 38 | W10316616 | Seal, Foam |
|
$ 25.01 | |||||
| 39 | W10704731 | Screw |
|
- | |||||
| 40 | W10704365 | Dryer Exhaust Kit (for Side & Bottom Venting), Kit, 4-way Vent |
|
$ 121.32 | |||||
| 41 | WPW10404617 | Plug, Multivent (midnight Grey) (Replaces: W10404617) |
|
$ 68.02 | |||||
| 42 | WPW10354249 | Plate, Cover (Replaces: W10354249) |
|
$ 8.47 | |||||
| 43 | W10718190 | Screw |
|
- | |||||
| 44 | WPW10416072 | Elbow (Replaces: W10416072) |
|
$ 25.34 | |||||
| 45 | W10587890 | Pipe, Exhaust (medium) |
|
- | |||||
| 46 | WPW10331278 | Pipe, Exhaust (short) (Replaces: W10331278) |
|
$ 74.61 | |||||
| 47 | WP8563749 | Pipe, Exhaust (long) (Replaces: 8563749) |
|
$ 83.92 | |||||
| 48 | WPW10344699 | Collar, Duct (Replaces: W10344699) |
|
$ 77.13 | |||||
| NI | 49621 | Foot, Optional (extended Length Package Of 2) (not Included) (Replaces: 279810) |
|
Immediately | $ 7.70 |
