01 - Cover Sheet

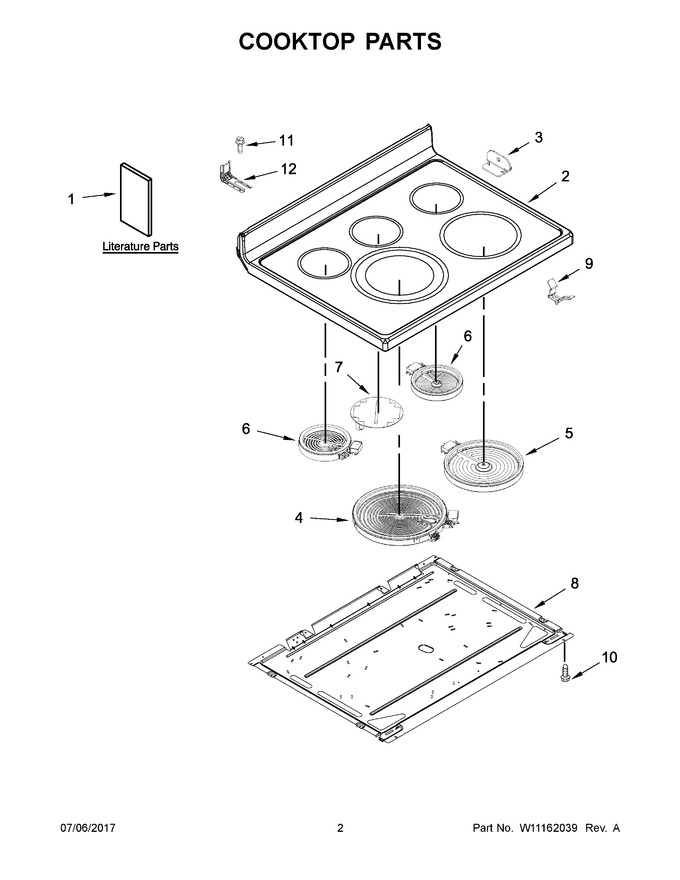

02 - Cooktop Parts


03 - Control Panel Parts


04 - Chassis Parts


05 - Door Parts


06 - Drawer Parts


07 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10667165		Guide, Use And Care		Appelez-nous	-
2	W10691696		Cooktop (black)   (Replaces: W10655905)				$ 489.75
3	W10607641		Bracket, Cooktop (left)				$ 30.17
4	W11517959		Element (3000/1400w) (left Front)   (Replaces: W10275048)			Immediately	$ 132.01
5	WPW10251108		Element (3200w) (right Front)   (Replaces: W10251108)			Immediately	$ 307.76
6	W11171119		Element (1200w) (right Rear And Left Rear)   (Replaces: 8273994)			Immediately	$ 203.06
7	W11047668		Element, Warm Zone (center Rear)   (Replaces: W10799047)				$ 119.66
8	W11728329		Pan, Radiant Element   (Replaces: W10691223)			Immediately	$ 129.14
9	WPW10225448		Spring, Element   (Replaces: W10225448)			Immediately	$ 9.36
10	WP3196175		Screw   (Replaces: 3196165)			Immediately	$ 6.80
11	WP7101P485-60		Screw, Anti-tip Kit   (Replaces: 7101P485-60)				$ 27.65
12	W11839019		Bracket, Anti-tip   (Replaces: W10306542)			Immediately	$ 25.69
1A	W10400064		Guide, Quick Start (english)		Appelez-nous	-
1B	W10667168		Sheet, Tech		Appelez-nous	-
1C	W10403811		Instructions, Installation		Appelez-nous	-
1D	9762761		Tips, Safe Cooking (english)		Appelez-nous	-
3A	W10607642		Bracket, Cooktop (right)		Appelez-nous	-
NI	W11134550		Harness, Cooktop (right)   (Replaces: W10744210)				$ 206.01
NI	W11134601		Harness, Cooktop (left)   (Replaces: W10844296)				$ 173.39
NI	W11134549		Harness, Main   (Replaces: W10629304)		Appelez-nous	-
NI	W11134594		Harness, Warm Zone   (Replaces: W10278580)				$ 173.45
NI	W11172424		Harness, Sensor   (Replaces: W10083650)				$ 102.40
NI	N/P		Following Parts Not Illustrated		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
