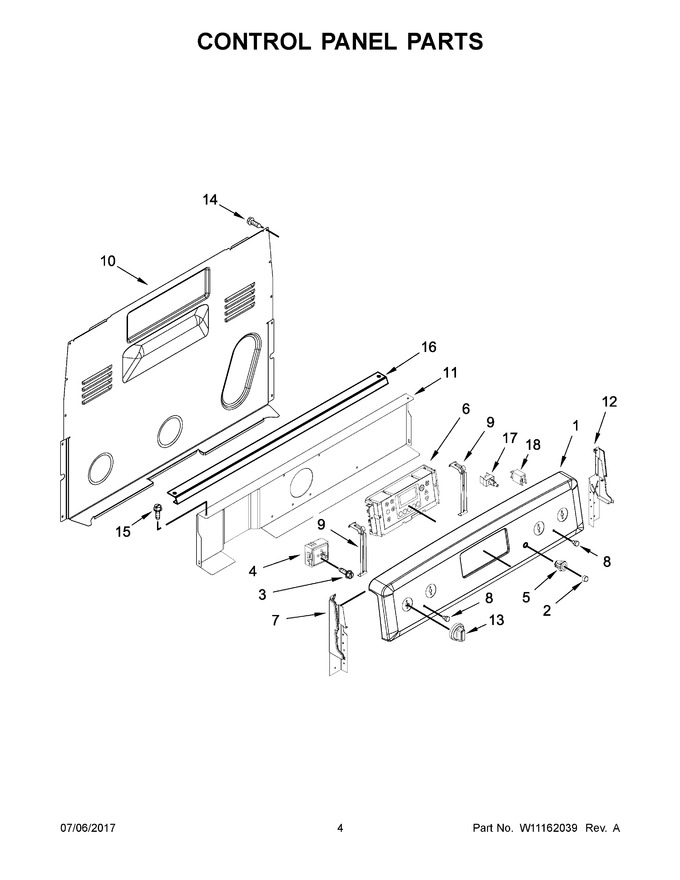

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10655844		Console (stainless)		Appelez-nous	-
2	W10918209		Button, Keep Warm (grey)   (Replaces: W10315961)				$ 18.19
3	WP3400882		Screw   (Replaces: 3400882)			Immediately	$ 6.80
4	5500-287		Switch, Infinite (right Rear And Left Rear)   (Replaces: 3148951)			Immediately	$ 49.03
5	W10315960		Bezel, Keep Warm (stainless)				$ 63.42
6	WPW10655845		Control (stainless)   (Replaces: W10655845)				$ 247.58
7	W11219664		Endcap (black (left))   (Replaces: W10184437)			Immediately	$ 138.45
8	WP3196068		Lens, Indicator   (Replaces: 3196068)			Immediately	$ 5.63
9	W11230932		Bracket, Control   (Replaces: W10695491)			Immediately	$ 76.33
10	WP8272473		Cover, Upper Rear   (Replaces: 8272473)				$ 197.14
11	W10134247		Shield, Heat			Immediately	$ 322.94
12	W11219665		Endcap (black (left))   (Replaces: W10184438)			Immediately	$ 40.65
13	WPW10666901		Knob (stainless)   (Replaces: W10666901)				$ 140.36
14	WP3196175		Screw   (Replaces: 3196165)			Immediately	$ 6.80
15	W11233072		Screw   (Replaces: W10362924)			Immediately	$ 13.25
16	W10525121		Bracket, Console Mounting				$ 88.97
17	WP8272820		Switch, Warm Zone   (Replaces: 8272820)				$ 161.02
18	WP8523265		Light, Indicator (125v)   (Replaces: 8523265)			Immediately	$ 91.76
4A	WPW10434452		Switch, Infinite (dual) (left Front)   (Replaces: W10434452)			Immediately	$ 126.76
4B	WPW10411934		Switch, Infinite (right Front)   (Replaces: W10411934)			Immediately	$ 98.85
