01 - Cover Sheet

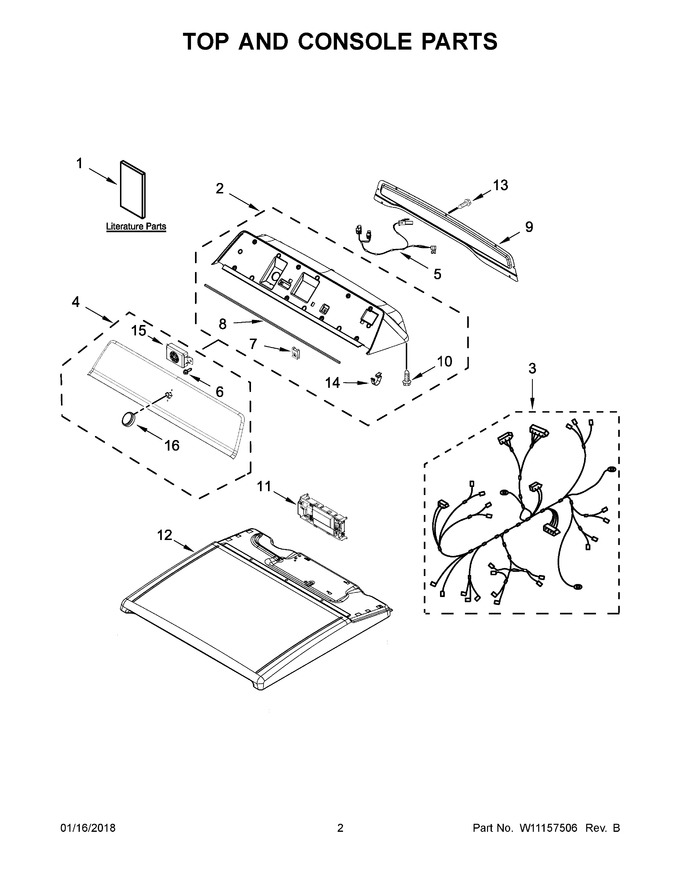

02 - Top And Console Parts


03 - Cabinet Parts


04 - Bulkhead Parts


05 - Door Parts


06 - Burner Assembly Parts


07 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11101355		Installation Instructions		Appelez-nous	-
2	W11026442		Console Assembly (complete) (white)   (Replaces: W10622102)			Immediately	$ 553.60
3	W10777444		Wiring Harness		Appelez-nous	-
4	W11158457		Fascia   (Replaces: W11098472)				$ 413.02
5	W10849059		Harness, User Interface   (Replaces: W10788429)				$ 166.13
6	WPW10109200		Screw   (Replaces: 489470)			Immediately	$ 7.92
7	W11213336		Nut, "u   (Replaces: W10298336)				$ 7.32
8	W11721376		Seal, Console   (Replaces: W10726632)		Appelez-nous	-
9	W10622402		Panel, Rear Console		Appelez-nous	-
10	WP9740848		Screw   (Replaces: 9740848)			Immediately	$ 7.72
11	W11133021		Control, Electronic   (Replaces: W11098430)				$ 449.27
12	W11227373		Top (white)   (Replaces: W10508981)				$ 230.05
13	W10704731		Screw		Appelez-nous	-
14	WP8312709		Clip, Console   (Replaces: 8312709)			Immediately	$ 14.93
15	W11123146		Assembly, Speaker   (Replaces: W10568405)				$ 72.84
16	W10853910		Assembly, Control Knob (chrome)   (Replaces: W10727011)				$ 48.55
1A	W11089272		Use And Care Guide		Appelez-nous	-
1B	W11089260		Tech Sheet		Appelez-nous	-
1C	W11089276		Quickstart Guide		Appelez-nous	-
