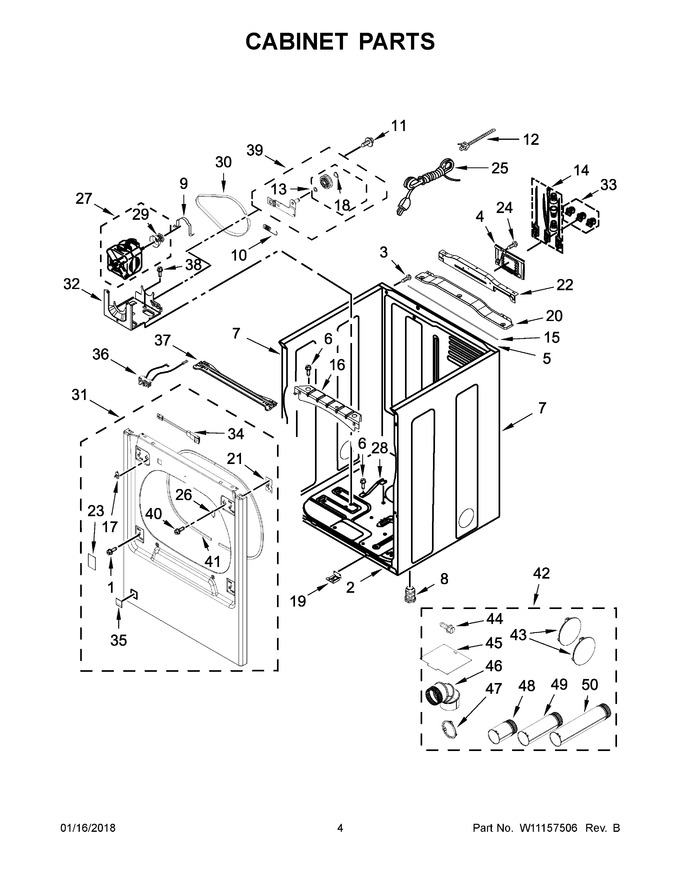

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	6-920119		Screw		Appelez-nous	-
2	W10613683		Base, Cabinet				$ 201.57
3	W10636208		Screw		Appelez-nous	-
4	W10819767		Cover, Terminal Block   (Replaces: 8317339)		Appelez-nous	-
5	W10824895		Panel, Rear				$ 311.10
6	WP693995		Screw   (Replaces: 693995)			Immediately	$ 7.55
7	W10645768		Panel, Side (white (with Cutout))		Appelez-nous	-
8	49621		Foot, Dryer   (Replaces: 3392100)			Immediately	$ 8.55
9	WPW10121316		Clamp, Motor Mount   (Replaces: W10121316)			Immediately	$ 26.96
10	WPW10446781		Spring, Idler   (Replaces: W10446781)			Immediately	$ 25.80
11	WP3389420		Screw   (Replaces: 3389420)				$ 8.62
12	WPW10155270		Cable Tie   (Replaces: W10155270)				$ 7.02
13	279640		Assembly, Pulley   (Replaces: W10468057)			Immediately	$ 32.51
14	279318		Terminal, Brass And Tinned (includes Terminal Block Screw Kit)			Immediately	$ 106.04
15	W10316616		Seal, Foam				$ 27.79
16	W11282908		Spacer Bracket, Upper   (Replaces: W10632348)		Appelez-nous	-
17	W11163826		Strike   (Replaces: W10778071)				$ 26.61
18	WPW10512946		Washer, Tri Ring   (Replaces: W10512946)			Immediately	$ 9.68
19	W10632347		Spacer Bracket, Lower		Appelez-nous	-
20	W10651902		Bulkhead Bracket, Rear Panel		Appelez-nous	-
21	W10596959		Bracket, Hinge				$ 20.00
22	W10622391		Bracket, Rear Panel Upper		Appelez-nous	-
23	W10590953		Plug, Hinge (white)		Appelez-nous	-
24	W10850756		Screw   (Replaces: W10773242)				$ 8.20
25	W11628810		Cord, Power   (Replaces: W10869142)				$ 101.90
26	WPW10111888		Plug, Strike   (Replaces: W10111888)				$ 29.69
27	W11126010		Motor Assembly   (Replaces: W10806761)				$ 299.51
28	W10181903		Bracket, Burner   (Replaces: 8529757)		Appelez-nous	-
29	W11568637		Pulley, Motor   (Replaces: W10669447)				$ 86.58
30	W11162091		Belt, Drive   (Replaces: W10610886)				$ 127.41
31	W10875869		Panel, Front (white)   (Replaces: W10861063)				$ 320.59
32	W10809187		Bracket, Motor Mounting Assembly		Appelez-nous	-
33	279393		Screw Kit, Terminal Block			Immediately	$ 55.66
34	W11036551		Switch, Door   (Replaces: W10459026)			Immediately	$ 74.25
35	W10811916		Plug, Front Panel (white)   (Replaces: 8564457)				$ 16.50
36	W11662087		Switch, Broken Belt   (Replaces: W10774832)				$ 54.97
37	W10722502		Brace, Cab And Seal Assembly		Appelez-nous	-
38	WP681414		Screw   (Replaces: 343641)			Immediately	$ 8.47
39	W10837240		Assembly, Idler   (Replaces: W10547287)			Immediately	$ 35.78
40	WP3400805		Screw (zinc)   (Replaces: 3400805)				$ 7.55
41	WP3387242		Seal, Front Panel   (Replaces: 3387242)			Immediately	$ 31.42
42	W10704365		Dryer Exhaust Kit (for Side & Bottom Venting), Kit, 4-way Vent				$ 134.80
43	WPW10404617		Plug, Multivent (midnight Grey)   (Replaces: W10404617)				$ 75.58
44	WP488729		Screw   (Replaces: 488729)			Immediately	$ 8.28
45	WPW10354249		Plate, Cover   (Replaces: W10354249)				$ 9.41
46	WPW10416072		Elbow   (Replaces: W10416072)				$ 28.16
47	WPW10344699		Collar, Duct   (Replaces: W10344699)				$ 85.70
48	WPW10331278		Pipe, Exhaust (short)   (Replaces: W10331278)				$ 82.90
49	W10587890		Pipe, Exhaust (medium)		Appelez-nous	-
50	WP8563749		Pipe, Exhaust (long)   (Replaces: 8563749)				$ 93.24
7A	W10633648		Panel, Side (white (without Cutout))				$ 287.57
NI	49621		Foot, Optional (extended Length Package Of 2) (not Included)   (Replaces: 279810)			Immediately	$ 8.55
