01 - Cover Sheet

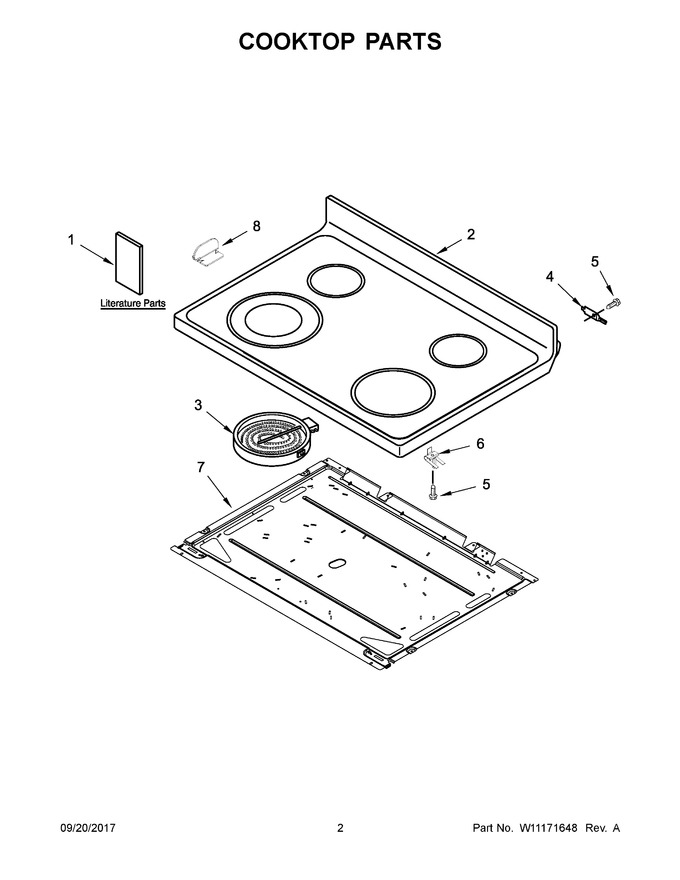

02 - Cooktop Parts
03 - Control Panel Parts
04 - Chassis Parts
05 - Drawer & Rack Parts
06 - Door Parts
07 - Optional Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10545225 | Use And Care Guide |
|
- | |||||
| 2 | W10245805 | Cooktop (black) (Replaces: W10176730) |
|
Immediately | $ 498.45 | ||||
| 3 | WPW10275049 | Element (2500/1200w) (left Front) (Replaces: W10275049) |
|
Immediately | $ 312.78 | ||||
| 4 | WP3195060 | Hinge, Cooktop (Replaces: 3195060) |
|
Immediately | $ 11.86 | ||||
| 5 | WP3196557 | Screw (Replaces: 3196169) |
|
Immediately | $ 7.16 | ||||
| 6 | WPW10225448 | Spring, Element (Replaces: W10225448) |
|
Immediately | $ 9.36 | ||||
| 7 | W11728329 | Pan, Radiant Element (Replaces: W10691223) |
|
Immediately | $ 129.14 | ||||
| 8 | W10607641 | Bracket, Cooktop (left) |
|
$ 30.17 | |||||
| 1A | W10434979 | Tech Sheet (english) |
|
- | |||||
| 1B | W10434980 | Tech Sheet (french) |
|
- | |||||
| 1C | W10403812 | Instructions, Installation |
|
- | |||||
| 1D | 9762761 | Tips, Safe Cooking (english) |
|
- | |||||
| 1E | W10065852 | Tips, Safe Cooking (french) |
|
- | |||||
| 3A | W11047722 | Element (2500w) (right Front) (Replaces: W10248262) |
|
Immediately | $ 119.21 | ||||
| 3B | W11171119 | Element (1200w) (left Rear & Right Rear) (Replaces: W10248261) |
|
Immediately | $ 203.06 | ||||
| 8A | W10607642 | Bracket, Cooktop (right) |
|
- | |||||
| NI | W11134601 | Harness, Cooktop (left) (Replaces: W10844296) |
|
$ 173.39 | |||||
| NI | N/P | Following Parts Not Illustrated |
|
- | |||||
| NI | W11134602 | Harness, Cooktop (right) (Replaces: W10844298) |
|
$ 172.54 |
