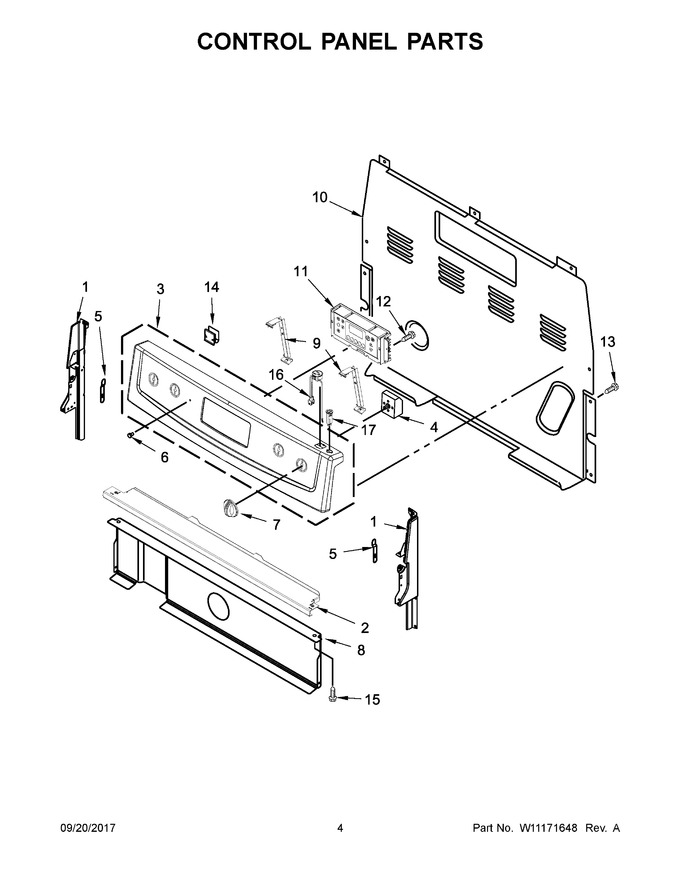

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11219664		Endcap (black (left))   (Replaces: W10184437)			Immediately	$ 138.45
2	W10525121		Bracket, Console Mounting				$ 88.97
3	W10545223		Panel, Control (stainless)				$ 127.96
4	WPW10434452		Switch, Infinite (dual) (left Front)   (Replaces: W10434452)			Immediately	$ 126.76
5	3196200		Clip, Spring				$ 9.41
6	WP3196068		Lens, Indicator   (Replaces: 3196068)			Immediately	$ 5.63
7	W11193834		Knob, Infinite (black)   (Replaces: W10211372)				$ 80.08
8	W10134247		Shield, Heat			Immediately	$ 322.94
9	W11230932		Bracket, Control   (Replaces: W10695491)			Immediately	$ 76.33
10	WP8272473		Cover, Upper Rear   (Replaces: 8272473)				$ 197.14
11	W11171123		Control, Range (black)   (Replaces: W10887903)				$ 491.44
12	WP3196557		Screw   (Replaces: 3196169)			Immediately	$ 7.16
13	WP3400882		Screw   (Replaces: 3400882)			Immediately	$ 6.80
14	WP8273564		Clip, Rear Upper Cover   (Replaces: 8273564)				$ 11.39
15	W11233072		Screw   (Replaces: 3196178)			Immediately	$ 13.25
16	W10861164		Receptacle (black)   (Replaces: W10749729)			Immediately	$ 16.62
17	WP9757602		Breaker, Circuit (black)   (Replaces: 9757602)			Immediately	$ 54.82
1A	W11219665		Endcap (black (right))   (Replaces: W10184438)			Immediately	$ 40.65
4A	5500-287		Switch, Infinite (left Rear & Right Rear)   (Replaces: 3148951)			Immediately	$ 49.03
4B	WP3149400		Switch, Infinite (right Front)   (Replaces: 3148954)			Immediately	$ 81.46
