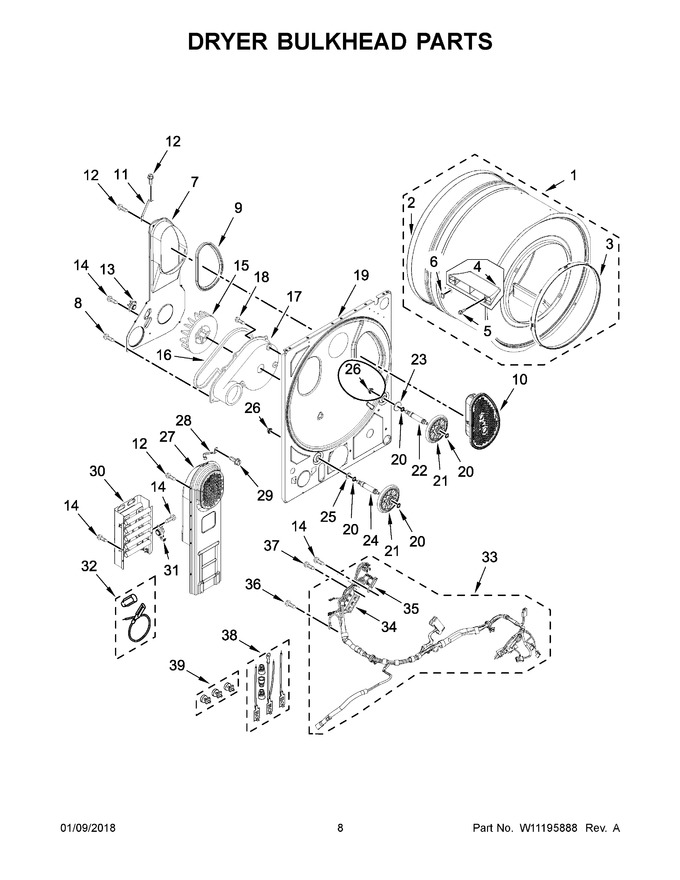

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 3391834 | Drum Assembly Complete |
|
$ 335.26 | |||||
| 2 | 279735 | Seal, Drum Rear |
|
Immediately | $ 98.79 | ||||
| 3 | WP3394508 | Ring, Bearing |
|
$ 118.67 | |||||
| 4 | 00685207 | Baffle, Drum (Replaces: 685207) |
|
$ 293.40 | |||||
| 5 | W10853898 | Screw (Replaces: W10219342) |
|
Immediately | $ 7.36 | ||||
| 6 | 8066086 | Plug, Drum Hole |
|
$ 10.16 | |||||
| 7 | 696547 | Air Duct And Bracket Assembly |
|
- | |||||
| 8 | 5303010202 | Screw |
|
$ 5.15 | |||||
| 9 | WP339956 | Seal |
|
Immediately | $ 8.15 | ||||
| 10 | W10828351 | Cover, Lint Screen Outlet |
|
Immediately | $ 62.64 | ||||
| 11 | 345396 | Clip, Air Duct To Bulkhead |
|
- | |||||
| 12 | WP681414 | Screw (Replaces: 3390663) |
|
Immediately | $ 7.62 | ||||
| 13 | WP3398128 | Thermostat, Internal Bias |
|
Immediately | $ 125.36 | ||||
| 14 | WP90767 | Screw |
|
Immediately | $ 7.43 | ||||
| 15 | WP696426 | Wheel, Blower |
|
Immediately | $ 123.02 | ||||
| 16 | 8066094 | Seal, Fan Scroll |
|
$ 8.38 | |||||
| 17 | WP696418 | Fan Scroll (Replaces: 696418) |
|
$ 109.79 | |||||
| 18 | WP339631 | Screw |
|
- | |||||
| 19 | 279848 | Bulkhead |
|
$ 328.30 | |||||
| 20 | WPW10512946 | Washer, Tri Ring |
|
Immediately | $ 8.71 | ||||
| 21 | 349241T | Roller, Support (Replaces: 3397590) |
|
Immediately | $ 26.58 | ||||
| 22 | WPW10359269 | Shaft, Drum Roller - Right Hand Thread |
|
Immediately | $ 51.09 | ||||
| 23 | WP3388703 | Washer |
|
$ 7.07 | |||||
| 24 | WPW10359270 | Shaft, Drum Roller - Left Hand Thread |
|
Immediately | $ 65.44 | ||||
| 25 | WP348197 | Washer (Replaces: 348197) |
|
$ 6.80 | |||||
| 26 | W11229607 | Nut, Hex |
|
Immediately | $ 7.78 | ||||
| 27 | WP3401380 | Box, Heater |
|
Immediately | $ 265.73 | ||||
| 28 | 279771 | Clip, Heater Box |
|
$ 13.55 | |||||
| 29 | WP489463 | Screw (Replaces: 489463) |
|
$ 7.43 | |||||
| 30 | WP279843 | Element, Heater |
|
Immediately | $ 220.14 | ||||
| 31 | WP3404154 | Thermostat, High Limit (200~/160f) |
|
Immediately | $ 122.99 | ||||
| 32 | 279457 | Terminal Wire Kit (for Heater Element Wiring Harness Repair) |
|
Immediately | $ 7.13 | ||||
| 33 | W11090772 | Harness, Main Dryer Wiring |
|
- | |||||
| 34 | WP3397659 | Block, Terminal |
|
$ 21.75 | |||||
| 35 | WP3392519 | Fuse, Thermal (91c) |
|
Immediately | $ 22.46 | ||||
| 36 | W10850756 | Screw (Replaces: W10773242) |
|
$ 7.38 | |||||
| 37 | WP308685 | Screw |
|
Immediately | $ 7.08 | ||||
| 38 | 279318 | Terminal, Brass And Tinned (includes Terminal Block Screw Kit) |
|
Immediately | $ 95.44 | ||||
| 39 | 279393 | Screw Kit, Terminal Block |
|
Immediately | $ 50.09 |
