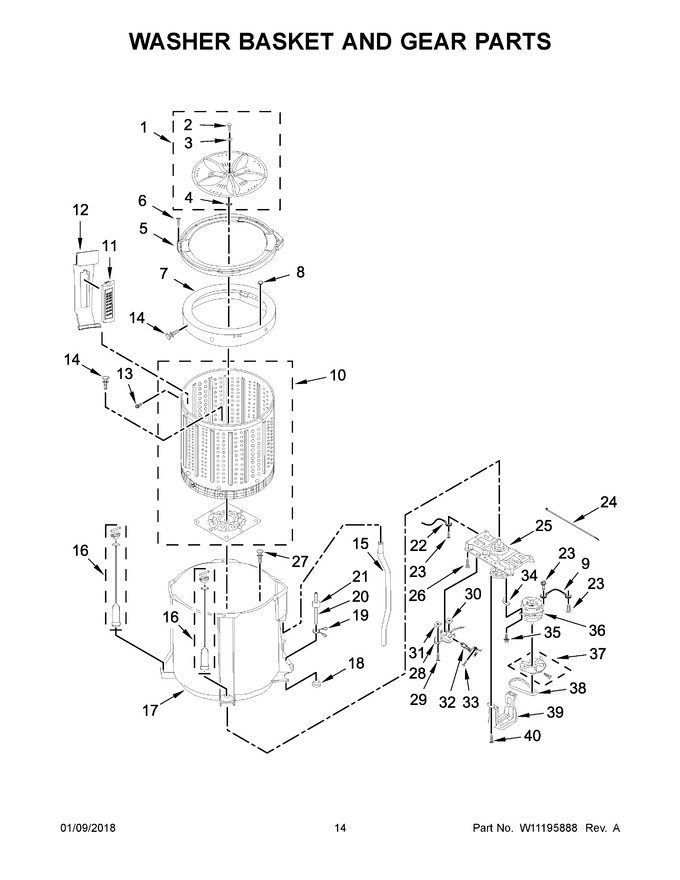

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10882404 | Impeller (complete) (Replaces: W10882346) |
|
$ 279.60 | |||||
| 2 | W11577483 | Screw, Impeller (Replaces: W10882362) |
|
$ 15.35 | |||||
| 3 | W11577483 | Washer, Lock (Replaces: W10882370) |
|
$ 15.35 | |||||
| 4 | W10882661 | Washer, Impeller (Replaces: W10882372) |
|
- | |||||
| 5 | W11830255 | Tub Ring (Replaces: W10882109) |
|
Immediately | $ 54.33 | ||||
| 6 | W10869499 | Screw |
|
- | |||||
| 7 | W11187713 | Tub, Adapter |
|
$ 27.54 | |||||
| 8 | W11187715 | Plug, Hole |
|
- | |||||
| 9 | W11178918 | Wire, Ground (motor) |
|
- | |||||
| 10 | W11178811 | Basket Assembly |
|
Immediately | $ 274.21 | ||||
| 11 | W11684623 | Filter, Lint (Replaces: W11178825) |
|
Immediately | $ 21.96 | ||||
| 12 | W11178822 | Retainer, Lint Filter |
|
$ 16.23 | |||||
| 13 | W11296992 | Screw (Replaces: W10869502) |
|
- | |||||
| 14 | W11178813 | Screw |
|
- | |||||
| 15 | W11209824 | Hose, Overflow |
|
$ 115.14 | |||||
| 16 | W11174583 | Suspension Damper Assembly (includes 3 Standard, 1 Motor Side) |
|
$ 202.81 | |||||
| 17 | W10882132 | Tub |
|
Immediately | $ 302.84 | ||||
| 18 | W11178808 | Cap, Outer Tub Air Hose |
|
$ 13.47 | |||||
| 19 | W11832205 | Clamp, Hose (Replaces: W10883610) |
|
$ 21.30 | |||||
| 20 | W10882407 | Hose, Pressure Switch |
|
Immediately | $ 53.64 | ||||
| 21 | W10882410 | Sleeve, Hose |
|
- | |||||
| 22 | W11178915 | Wire, Ground |
|
- | |||||
| 23 | W11176555 | Screw |
|
- | |||||
| 24 | W10883819 | Cable Tie |
|
- | |||||
| 25 | W11665996 | Gearcase (Replaces: W10883783) |
|
Immediately | $ 443.50 | ||||
| 26 | W10883787 | Screw |
|
- | |||||
| 27 | W10883753 | Screw |
|
- | |||||
| 28 | W11614637 | Actuator, Shift (Replaces: W11187717) |
|
Immediately | $ 135.91 | ||||
| 29 | W10883805 | Screw |
|
- | |||||
| 30 | W11178899 | Nut, Square (left) |
|
$ 28.39 | |||||
| 31 | W11178900 | Nut, Square (right) |
|
$ 28.39 | |||||
| 32 | W10883809 | Bracket, Actuator |
|
$ 46.95 | |||||
| 33 | W10882000 | Screw |
|
- | |||||
| 34 | W10883812 | Spacer (motor) |
|
- | |||||
| 35 | W10883817 | Screw |
|
- | |||||
| 36 | W11189163 | Motor, Drive (Replaces: W11178896) |
|
Immediately | $ 387.39 | ||||
| 37 | W10882138 | Pulley, Motor |
|
Immediately | $ 102.44 | ||||
| 38 | W11676809 | Belt, Drive (Replaces: W10882141) |
|
$ 27.54 | |||||
| 39 | W10882148 | Bracket, Motor Support |
|
- | |||||
| 40 | W10883826 | Screw |
|
- |
