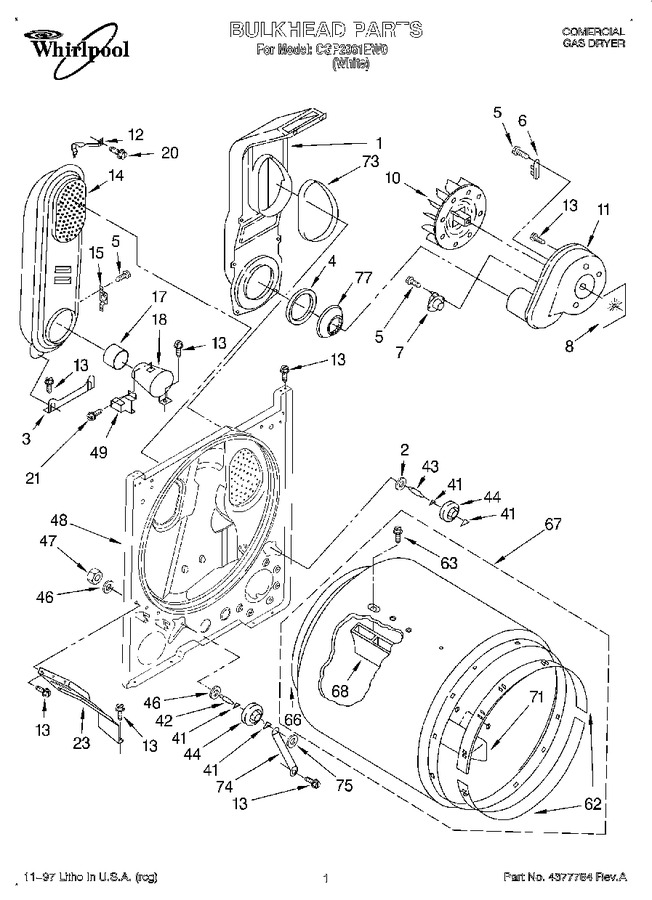

01 - Bulkhead, Lit/optional
02 - Top And Console
03 - Cabinet
04 - 3401771 Burner Assembly
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11117429 | Lint Chute Assembly (Replaces: 348368) |
|
$ 165.38 | |||||
| 2 | WP3388703 | Washer-support (Replaces: 3388703) |
|
$ 7.07 | |||||
| 3 | 348484 | Support, Heater Box |
|
- | |||||
| 4 | W11415783 | Seal, Lint Chute (Replaces: 347139) |
|
Immediately | $ 17.23 | ||||
| 5 | WP90767 | Screw, 8a X 3/8 (Replaces: 90767) |
|
Immediately | $ 7.43 | ||||
| 6 | WP3392519 | Fuse, Thermal (Replaces: 3392519) |
|
Immediately | $ 22.46 | ||||
| 7 | WP3387134 | Thermostat, Internal Bias (Replaces: 3387134) |
|
Immediately | $ 32.31 | ||||
| 8 | 3394196 | Seal, Blower |
|
$ 5.65 | |||||
| 10 | WP694089 | Wheel, Blower (Replaces: 694089) |
|
Immediately | $ 33.89 | ||||
| 11 | WP8577230 | Housing, Blower (Replaces: 3405016) |
|
$ 168.17 | |||||
| 12 | 279771 | Clip (Replaces: 3398161) |
|
$ 13.55 | |||||
| 13 | WP681414 | Screw,10-16 X 1/2 (Replaces: 343641) |
|
Immediately | $ 7.62 | ||||
| 14 | 279900 | Box, Heater (Replaces: 685458) |
|
$ 325.42 | |||||
| 15 | W11050897 | Thermostat, High-limit 205~f (96~c) (Replaces: 3403140) |
|
Immediately | $ 13.77 | ||||
| 17 | 279900 | Collar, Funnel (Replaces: 348516) |
|
$ 325.42 | |||||
| 18 | 279900 | Funnel, Burner (Replaces: 347389) |
|
$ 325.42 | |||||
| 20 | WP489463 | Screw, 8-18 X 3/4 (Replaces: 3400800) |
|
$ 7.43 | |||||
| 21 | WP3390631 | Screw (Replaces: 339554) |
|
$ 7.43 | |||||
| 23 | W11398682 | Bracket, Bulkhead (Replaces: 3406022) |
|
$ 52.99 | |||||
| 41 | WPW10512946 | Ring, Tri (Replaces: 690997) |
|
Immediately | $ 8.71 | ||||
| 42 | WPW10359270 | Shaft, L.h. (Replaces: 3399506) |
|
Immediately | $ 65.44 | ||||
| 43 | WPW10359269 | Shaft, R.h. (Replaces: 3399507) |
|
Immediately | $ 51.09 | ||||
| 44 | 349241T | Roller, Support (2) (Replaces: 3397588) |
|
Immediately | $ 26.58 | ||||
| 46 | WP348197 | Washer, Support (4) (Replaces: 348197) |
|
$ 6.80 | |||||
| 47 | WP3359452 | Nut, 3/8-16 (2) (Replaces: 3359452) |
|
Immediately | $ 6.80 | ||||
| 48 | W11178668 | Bulkhead (Replaces: 3403410) |
|
$ 269.37 | |||||
| 49 | WP338906 | Sensor, Radiant (Replaces: 338906) |
|
Immediately | $ 46.72 | ||||
| 62 | 279441 | Ring, Bearing (Replaces: 692526) |
|
Immediately | $ 66.11 | ||||
| 63 | WPW10109200 | Screw (Replaces: 97787) |
|
Immediately | $ 7.92 | ||||
| 66 | W10612022 | Seal, Rear Drum (Replaces: 3406130) |
|
Immediately | $ 56.16 | ||||
| 67 | W10899578 | Drum Assembly (Replaces: 695587) |
|
$ 337.98 | |||||
| 68 | WP692490 | Baffle, Drum (Replaces: 692490) |
|
$ 150.51 | |||||
| 71 | WP3403636 | Baffle, Drum (1) (Replaces: 3403636) |
|
$ 131.03 | |||||
| 73 | WP339956 | Seal (Replaces: 339956) |
|
Immediately | $ 8.15 | ||||
| 74 | W11684613 | Bracket, Support Shaft (Replaces: 3976434) |
|
$ 19.79 | |||||
| 75 | WP90296 | Clip (Replaces: 90296) |
|
$ 7.42 | |||||
| 77 | W11233063 | Shield, Exhaust (Replaces: 696302) |
|
$ 21.06 | |||||
| LIT3406547 | Tech Sheet |
|
- | ||||||
| WP72107 | Paint, Touch-up (1/2oz.) (almond) (Replaces: 72107) |
|
$ 16.93 | ||||||
| 350930 | Paint, Pressurized Spray (12 Oz.) White |
|
Immediately | $ 36.11 | |||||
| DD81-03523A | Paint, Touch-up 1/2 Oz. (harvest Gold) (Replaces: 72110) |
|
$ 124.07 | ||||||
| 350956 | Paint, Spray 13 Oz. (almond) |
|
$ 48.61 | ||||||
| LIT3976424 | Label, Wiring Diagram |
|
- | ||||||
| LIT3402838 | Instructions, Installation |
|
- | ||||||
| 72017 | Paint, Touch-up 1/2 Oz. (white) |
|
Immediately | $ 11.07 | |||||
| 3952030 | Vault Switch, Kit (high) |
|
- | ||||||
| 3952029 | Vault Switch, Kit (low) |
|
- | ||||||
| 261891 | New Gold (uncut) |
|
- | ||||||
| 978883 | Almond (uncut) |
|
- | ||||||
| 799344 | Paint, Bulk (1 Qt.) (white) (uncut) |
|
$ 237.46 | ||||||
| 350938 | Paint, Pressurized Spray (12 Oz.) (primer,grey) |
|
- | ||||||
| 261890 | New Gold |
|
- |
