SELECT A DIAGRAM

01 - Bulkhead, Lit/optional


02 - Top And Console

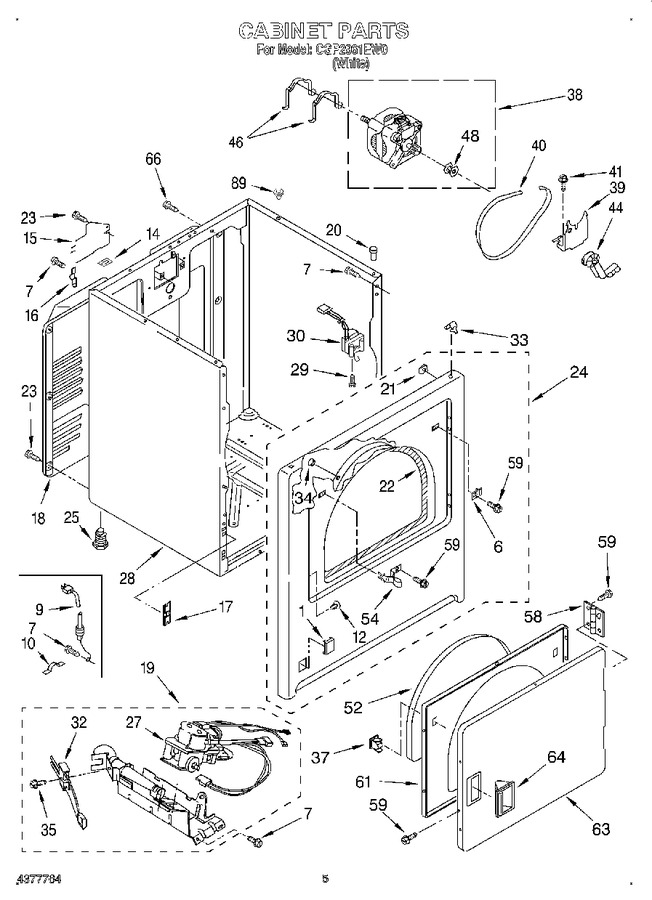

03 - Cabinet


04 - 3401771 Burner Assembly


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	3394975		Plug, Front Panel				$ 5.70
6	WP3403630		Plug, Strike   (Replaces: 3403630)				$ 7.12
7	WP681414		Screw,10-16 X 1/2   (Replaces: 343641)			Immediately	$ 7.62
9	W11222083		Power Cord   (Replaces: 3401402)				$ 113.96
10	WP98997		Clip, Harness   (Replaces: 98997)				$ 10.48
12	WP3404413		Plug, Hinge Hole (4)   (Replaces: 3404413)			Immediately	$ 7.52
14	18849		Pad, Top Hinge				$ 19.04
15	W11539855		Cover, Block   (Replaces: 3396795)			Immediately	$ 566.78
16	WP8066217		Hinge, Top (2)   (Replaces: 238088)				$ 7.39
17	W10854425		Clip, Front Panel (2)   (Replaces: 3394083)			Immediately	$ 14.71
18	280043		Panel, Rear   (Replaces: 3396805)				$ 322.53
19	3401771		Burner Assembly (60 Hz) (refer To Page 4 For Further Burner Breakdown)		Appelez-nous	-
20	98669		Locator, Top				$ 12.03
21	WP98234		Clip, Ground (2)   (Replaces: 98234)			Immediately	$ 10.76
22	W11035878		Seal & Bearing Assembly   (Replaces: 3406129)			Immediately	$ 83.41
23	WP693995		Screw, Hex Washer Head   (Replaces: 693995)			Immediately	$ 6.80
24	3403447		Front Panel Assembly		Appelez-nous	-
25	49621		Foot   (Replaces: 3392100)			Immediately	$ 7.70
25	49621		Foot - Optional (extended Length Package Of 2 ) (not Included)   (Replaces: 279810)			Immediately	$ 7.70
27	279923		Valve, Gas 60 Hz. (complete)   (Replaces: 3401775)			Immediately	$ 257.43
28	3399585		Cabinet Assembly (includes Illus. Nos. 9, 15, 18, & 39)		Appelez-nous	-
29	WP3395530		Screw, Door Switch   (Replaces: 697773)				$ 7.71
30	WP3406105		Switch, Door   (Replaces: 3406104)			Immediately	$ 33.21
32	279311		Ignitor   (Replaces: 686590)			Immediately	$ 71.01
33	WP18776		Lock, Front Top (2)   (Replaces: 18776)			Immediately	$ 11.98
34	279220		Clip, Felt Pad (2)   (Replaces: 685203)				$ 21.20
35	WPW10366705		Screw & Washer   (Replaces: 3393909)				$ 7.09
37	279570		Catch, Door   (Replaces: 690081)			Immediately	$ 8.00
38	279827		Motor Assembly 60 Hz.   (Replaces: 3395652)			Immediately	$ 195.48
39	WP348780		Base, Motor   (Replaces: 348780)			Immediately	$ 114.89
40	341241		Belt, Drive   (Replaces: 660997)			Immediately	$ 16.34
41	3400500		Bolt, 5/16-18 X 3/4			Immediately	$ 12.64
44	WP691366		Idler & Pulley   (Replaces: 691366)			Immediately	$ 20.22
46	WP660658		Clamp, Motor (2)   (Replaces: 660658)				$ 7.40
46	WP660658		(alt.)   (Replaces: 343481)				$ 7.40
46	WP660658		(alt.)   (Replaces: 685441)				$ 7.40
48	WP8066184		Pulley, 60 Hz.   (Replaces: 3401143)			Immediately	$ 45.92
52	W10861521		Seal, Door   (Replaces: 3405246)			Immediately	$ 61.07
54	W11429589		Strike, Door   (Replaces: 3403431)			Immediately	$ 18.89
58	WPW10362431		Hinge & Pin Assembly (2)   (Replaces: 3405514)			Immediately	$ 7.45
59	WP488627		Screw, 8-18 X 1/2   (Replaces: 342055)				$ 7.30
61	WP3402341		Door, Rear   (Replaces: 3402341)				$ 187.84
63	W10861227		Door, Front   (Replaces: 3402335)				$ 242.33
64	WP3405184		Handle, Door   (Replaces: 3405184)				$ 71.83
66	W10850756		Screw, 10-32 X 1/2 (grounding)   (Replaces: 697776)				$ 7.38
89	98669		Locator, Top				$ 12.03

    View Diagram in Separate Window       Print Part List
