SELECT A DIAGRAM

02 - Unit

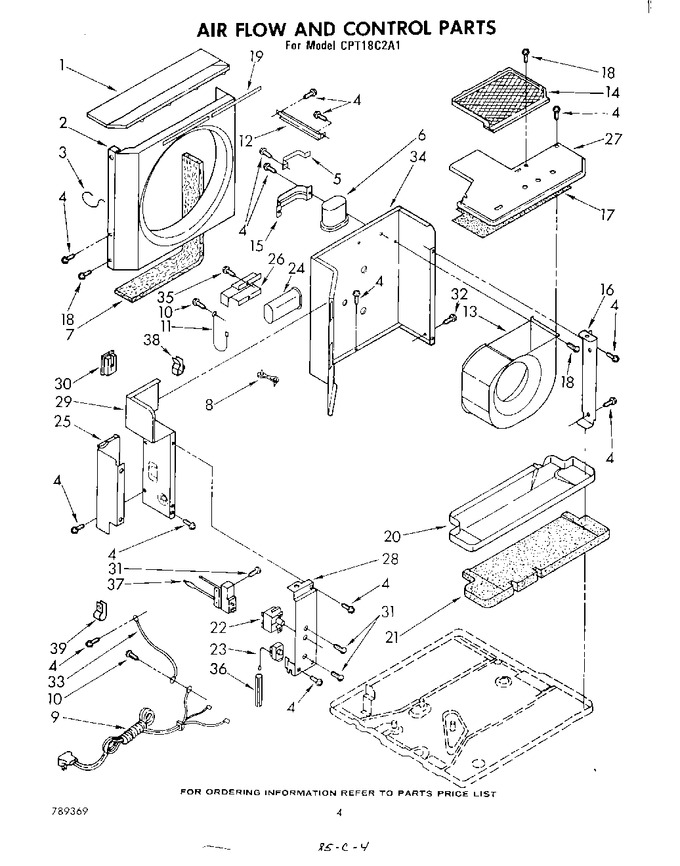

03 - Air Flow And Control , Lit/optional


04 - Cabinet


05 - Accessory Kit


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	997264		Cover, Condenser Shroud		Appelez-nous	-
2	953028		Shroud, Condenser		Appelez-nous	-
3	477442		Clip, Shroud (2)		Appelez-nous	-
4	WP308685		Screw (repair) Sm No.10 X 1/2   (Replaces: 488861)			Immediately	$ 7.08
4	WP489069		Screw, Sm No.8 X 1/2a   (Replaces: 488480)			Immediately	$ 7.56
5	852992		Bracket, Capacitor		Appelez-nous	-
6	951516		Capacitor, Run		Appelez-nous	-
7	948600		Seal, Condenser Fin		Appelez-nous	-
8	648791		Clamp, Cable		Appelez-nous	-
9	648411		Cable, Appliance		Appelez-nous	-
10	WPW10141604		Screw, 8-32 X 3/8   (Replaces: 487871)				$ 7.97
11	998177		Wire, Ground (2)		Appelez-nous	-
12	858663		Unit, Support (2)		Appelez-nous	-
13	997220		Housing, Blower Wheel		Appelez-nous	-
14	856506		Guard, Evaporator Impeller		Appelez-nous	-
15	475844		Bracket, Capacitor (shield)		Appelez-nous	-
16	997239		Adapter, Evaporator Header Plate		Appelez-nous	-
17	948236		Insulation, Evaporator Cover		Appelez-nous	-
18	WP488729		Screw, Sm No.8 X 1/2a   (Replaces: 487910)			Immediately	$ 7.45
19	WP854334		Rear   (Replaces: 997267)				$ 12.55
19	997266		Seal, Side Condenser		Appelez-nous	-
20	997238		Pan, Condensate		Appelez-nous	-
21	997237		Insulation, Pan		Appelez-nous	-
22	950526		Switch, Rotary		Appelez-nous	-
23	853749		Control, Temperature		Appelez-nous	-
24	952076		Capacitor, Fan Motor		Appelez-nous	-
25	997278		Cover, Control Access		Appelez-nous	-
26	998009		Bracket, Fan Capacitor		Appelez-nous	-
27	997269		Cover, Evaporator		Appelez-nous	-
28	852219		Panel, Control		Appelez-nous	-
29	997342		Extension, Dividing Wall		Appelez-nous	-
30	948519		Seal, Tube		Appelez-nous	-
31	488734		Screw, 6-32 X .175		Appelez-nous	-
32	488624		Screw, Sm No.8 X 3/8		Appelez-nous	-
33	952477		Wire, Ground		Appelez-nous	-
34	953031		Wall, Dividing (requires Insulation No. 469938)		Appelez-nous	-
35	WP488729		Screw, S.m. No.8 X 3/8 (2)   (Replaces: 488979)			Immediately	$ 7.45
36	476835		Sleeve, Insulator		Appelez-nous	-
37	950635		Thermostat, Deicer		Appelez-nous	-
38	471088		Clamp, Tube (2)		Appelez-nous	-
39	212643		Sealer, Gum (cabinet & Windows)   (Replaces: 470168)			Immediately	$ 86.78
39	WP279368		Adhesive, To Attach Insulation (1 Oz.)   (Replaces: 797403)			Immediately	$ 104.81
39	47261		Wire, Black (25 Ft.)		Appelez-nous	-
39	47262		Wire, Red, (25 Ft.)		Appelez-nous	-
39	47263		Wire, White (25 Ft.)		Appelez-nous	-
39	485426		Lacquer, Starlight Gray (1/2 Pt. Uncut)		Appelez-nous	-
39	484069		Cover, Winter				$ 62.49
39	813610		Cord, Retainer (winter, Cover)				$ 5.71
39	947072		Clamp, Cable (2)		Appelez-nous	-
39	854937		Insulation, Cabinet (rigth Side)		Appelez-nous	-
39	854938		Insulation, Cabinet (left Side)		Appelez-nous	-
39	855438		Insulation, Cabinet (top)		Appelez-nous	-
39	997236		Insulation, Base		Appelez-nous	-
	LIT951058		Sheet, Service Tech (service Information)		Appelez-nous	-
	LIT789369		List, Repair Parts		Appelez-nous	-
	LIT953095		Guide, Energy		Appelez-nous	-
	LIT953077		Guide, Use & Care		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
