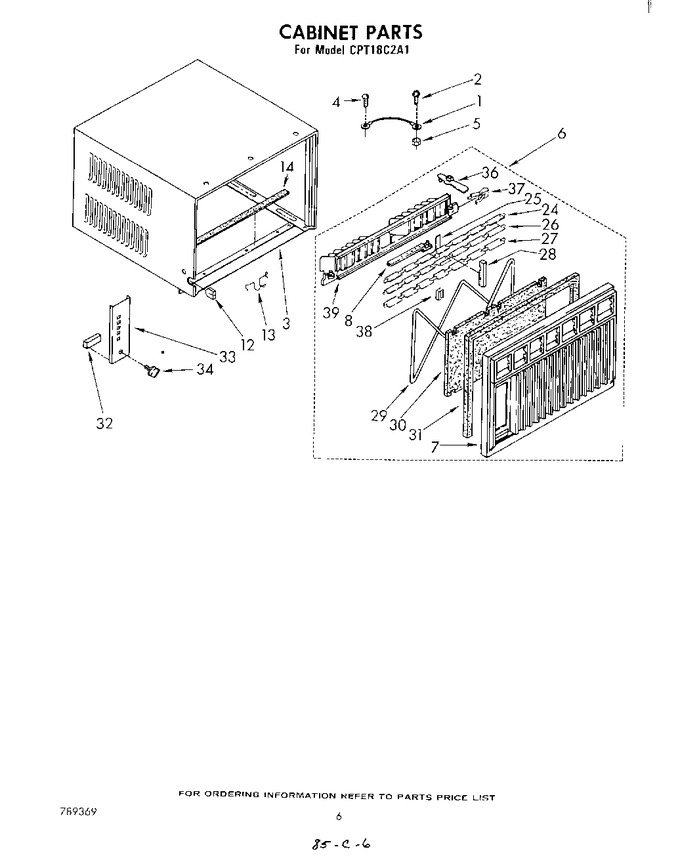

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	857022		Wire, Ground		Appelez-nous	-
2	488853		Screw, 8 X 3/8		Appelez-nous	-
3	997280		Cabinet		Appelez-nous	-
4	488854		Screw, 8 X 3/8		Appelez-nous	-
5	WP486255		Nut, Hex 8-32   (Replaces: 486529)				$ 5.82
6	953024		Front, Cabinet (complete)		Appelez-nous	-
7	953018		Front, Cabinet		Appelez-nous	-
8	953063		Link, Louver (2)		Appelez-nous	-
12	647849		Grommet, Wiring		Appelez-nous	-
13	852272		Clip, Cabinet Front (3)		Appelez-nous	-
14	852220		Seal		Appelez-nous	-
24	953061		Louver, Horizontal (4)		Appelez-nous	-
25	855998		Spring, Louver Retainer (4)		Appelez-nous	-
26	953059		Louver, Horizontal (handle)		Appelez-nous	-
27	953060		Louver, Horizontal (notched)		Appelez-nous	-
28	853772		Rack, Louver (2)		Appelez-nous	-
29	476707		Retainer, Filter		Appelez-nous	-
30	649958		Filter		Appelez-nous	-
31	649726		Seal, Front (bottom)		Appelez-nous	-
31	649725		Seal, Front (top & Sides)		Appelez-nous	-
32	469175		Spacer, Escutcheon (3)		Appelez-nous	-
33	953004		Escutcheon		Appelez-nous	-
34	953054		Knob, Control (2)		Appelez-nous	-
36	953062		Handle, Louver (2)		Appelez-nous	-
37	641484		Spring (2)				$ 150.14
38	855999		Clip, Retainer, Louver (4)		Appelez-nous	-
39	953064		Louver, Vertical		Appelez-nous	-
