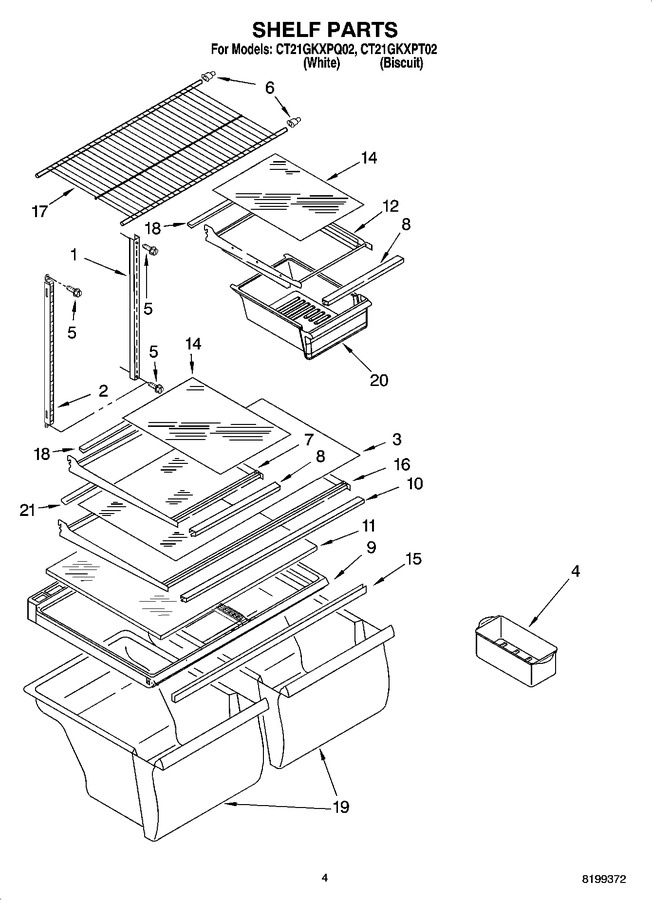

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 2210522 | Shelf, Ladder (2) |
|
$ 44.10 | |||||
| 2 | 2300520 | Shelf, Ladder Center |
|
$ 75.36 | |||||
| 3 | 2174693 | Glass, Full Shelf |
|
$ 95.31 | |||||
| 4 | W10136387A | Egg Bin (Replaces: 2216624) |
|
$ 17.59 | |||||
| 5 | WP489478 | Screw (Replaces: 489478) |
|
$ 7.36 | |||||
| 6 | WPW10130299 | Cup, Shelf Mtg. (Replaces: 2163762) |
|
Immediately | $ 13.23 | ||||
| 7 | 2201102 | Shelf, Cantilever |
|
$ 74.19 | |||||
| 8 | 2188685 | Trim, Shelf Front |
|
- | |||||
| 9 | WP2314549 | Crisper Cover (Replaces: 2210524) |
|
$ 251.19 | |||||
| 10 | 2188691C | Trim, Shelf (front) |
|
- | |||||
| 11 | WP2176225 | Glass, Crisper Cover (Replaces: 2210573) |
|
$ 237.97 | |||||
| 12 | 2201106 | Pan, Shelf Cantilever |
|
$ 77.79 | |||||
| 14 | 2174694 | Glass, Shelf |
|
$ 84.37 | |||||
| 15 | WP2172748 | Crisper, Support (Replaces: 2163832) |
|
$ 91.87 | |||||
| 16 | 2201104 | Shelf, Full Cantilever |
|
$ 110.02 | |||||
| 17 | 2189454 | Shelf, Freezer |
|
- | |||||
| 18 | WP2188689 | Trim, Shelf Rear (Replaces: 2188687) |
|
$ 109.40 | |||||
| 19 | W10854037 | Pan, Crisper (Replaces: 2218124) |
|
Immediately | $ 161.27 | ||||
| 20 | WP2218132K | Pan, Meat (Replaces: 2218132K) |
|
Immediately | $ 154.29 | ||||
| 21 | WP2188689 | Trim, Shelf (rear) (Replaces: 2188689C) |
|
$ 109.40 |
