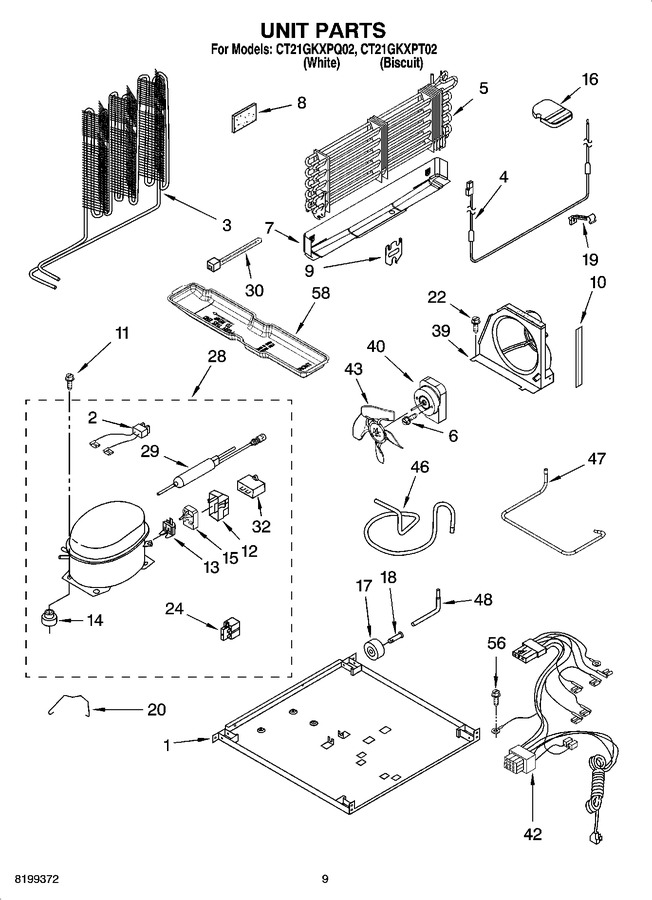

06 - Unit Parts, Optional Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 2225596 | Plate, Unit Mounting |
|
- | |||||
| 2 | WP2172890 | Wire Assembly (service Only) (Replaces: 4387765) |
|
$ 7.66 | |||||
| 3 | 2214960 | Condenser |
|
$ 141.57 | |||||
| 4 | WPW10140847 | Heater, Defrost (Replaces: 2314157) |
|
$ 150.61 | |||||
| 5 | 2221761 | Evaporator Assy. |
|
- | |||||
| 6 | WPW10171469 | Screw (Replaces: 8533859) |
|
Immediately | $ 10.45 | ||||
| 7 | 2254295 | Drain Pan |
|
$ 74.91 | |||||
| 8 | W11553819 | Insulation, Sound Dampening (Replaces: 2169104) |
|
Immediately | $ 13.29 | ||||
| 9 | 2176301 | Bracket, Heater |
|
$ 6.37 | |||||
| 10 | 2300638 | Extension, Air Baffle |
|
$ 52.69 | |||||
| 11 | 876811 | Screw (Replaces: 489373) |
|
$ 7.01 | |||||
| 12 | WP2162358 | Cover Service Only) (Replaces: 4387731) |
|
$ 85.76 | |||||
| 13 | WP2214067 | Overload (service Only) (Replaces: 4390624) |
|
$ 124.42 | |||||
| 14 | WP4387558 | Grommet (4) (service) (Replaces: 4387558) |
|
$ 6.57 | |||||
| 14 | 876811 | Grommet (4) (production) (Replaces: 1100826) |
|
$ 7.01 | |||||
| 15 | WP2225785 | Start-device Combination (start Relay And Overload For Production Compressor Only) (Replaces: 2225785) |
|
$ 168.08 | |||||
| 16 | 2201185 | Support Block |
|
$ 8.21 | |||||
| 17 | WPW10475495 | Roller (2) (Replaces: 2150304) |
|
Immediately | $ 28.85 | ||||
| 18 | W11594405 | Rivet (Replaces: 2221797) |
|
Immediately | $ 17.21 | ||||
| 19 | 2182338 | Clip, Heater |
|
$ 6.62 | |||||
| 20 | 2212996 | Strap (Replaces: 2255113) |
|
$ 11.45 | |||||
| 22 | 3400518 | Screw |
|
$ 12.27 | |||||
| 24 | 2183454 | Relay (service Only) |
|
- | |||||
| 28 | W10309988 | Compressor (includes Items 2,12,13,14,24, 29 & 32) (Replaces: 2225833) |
|
Immediately | $ 528.56 | ||||
| 29 | W10843121 | Drier (service) (Replaces: 4387019) |
|
Immediately | $ 51.42 | ||||
| 29 | W10843121 | Drier (production) (Replaces: 2199167) |
|
Immediately | $ 51.42 | ||||
| 30 | WPW10339879 | Clamp (Replaces: 2155774) |
|
$ 7.47 | |||||
| 32 | WPW10662129 | Capacitor (production) (Replaces: 2169373) |
|
Immediately | $ 52.97 | ||||
| 32 | WPW10662129 | Capacitor (service) (Replaces: 1118576) |
|
Immediately | $ 52.97 | ||||
| 39 | 2302249 | Air Baffle |
|
$ 37.70 | |||||
| 40 | WP2188874 | Motor, Condenser (Replaces: 2188874) |
|
Immediately | $ 111.76 | ||||
| 42 | 2187382 | Wire Assembly Unit |
|
$ 264.30 | |||||
| 43 | W11458267 | Fan Blade (Replaces: 2225834) |
|
Immediately | $ 22.67 | ||||
| 46 | 2225564 | Tube, Discharge |
|
- | |||||
| 47 | 2225565 | Tube, Suction |
|
- | |||||
| 48 | 2154109 | Tube, Process |
|
$ 68.63 | |||||
| 56 | WP489128 | Screw (Replaces: 488500) |
|
$ 10.26 | |||||
| 58 | 876764 | Valve, Access(3/16``) |
|
Immediately | $ 86.33 | ||||
| 58 | 978030 | Valve, Access (3/4``) |
|
$ 123.53 | |||||
| 58 | WP978025 | Valve, Access (1/4``) (Replaces: 978025) |
|
Immediately | $ 99.46 | ||||
| 58 | N/A | Refrigerant Charge 4.0 Ozs. (r134a) |
|
- | |||||
| 58 | 978028 | Valve, Access (1/2) |
|
- | |||||
| 58 | SF5538 | Valve, Access (3/8``) (Replaces: 978027) |
|
$ 16.79 | |||||
| 58 | 978026 | Valve, Access (5/16``) |
|
Immediately | $ 121.04 | ||||
| 58 | 8201826 | Evaporator Tray (Replaces: 2300635) |
|
$ 148.30 | |||||
| 58 | 978029 | Valve Access (5/8``) |
|
$ 93.85 | |||||
| 1117510 | Torx Key |
|
$ 5.84 | ||||||
| 72032 | Paint, Touch-up 1/2 Oz. (black) |
|
Immediately | $ 18.69 | |||||
| 212643 | Sealer, Gum (4 Feet) |
|
Immediately | $ 86.78 | |||||
| 479502 | Tape, Vinyl 3/4 X 108``) |
|
$ 66.77 | ||||||
| 876370 | Kit, Insulation (2 Pcs. 3`` X 24 `` X 48``) |
|
$ 218.83 | ||||||
| 876029 | Kit, Foam Slab (30`` X 32- 1/2`` X1-1/2``) |
|
- | ||||||
| 511873 | Paint, Touch-up 1/2 Oz. (white Porcelain) |
|
$ 46.58 | ||||||
| 606755 | Bag, Insulation (36-5/8`` X 46``) |
|
$ 74.13 | ||||||
| 799833 | Kit, Evaporator Repair (aluminum Epoxy) |
|
- | ||||||
| 799832 | Kit. Porcelain Repair (white) |
|
- | ||||||
| 350942 | Primer, White (12 Oz. Spray Can) |
|
$ 84.73 | ||||||
| 285006 | Enamel, Black (12 Oz. Spray Can) (Replaces: 350939) |
|
$ 53.90 | ||||||
| 72017 | Paint, Touch-up 1/2 Oz. (white) |
|
Immediately | $ 11.07 | |||||
| 350930 | Paint, Pressurized Spray (12 Oz.) White |
|
Immediately | $ 36.11 | |||||
| 4392899 | Brush Touch-up Kit (biscuit |
|
Immediately | $ 24.99 | |||||
| 799344 | Paint, Bulk (1 Qt.) (white) (uncut) |
|
$ 237.46 | ||||||
| 799340 | Enamel, Black (1 Qt. Uncut) |
|
- | ||||||
| 4392900 | Paint, Bulk (1 Qt.) (biscuit) (uncut) |
|
- | ||||||
| 833938 | Kit, Terminal Connector |
|
$ 7.62 | ||||||
| W11729596 | Eckmf-94 (Replaces: 2155469) |
|
Immediately | $ 139.50 | |||||
| N/A | Torx Screw Wrench |
|
- | ||||||
| 4392901 | Paint, Pressurized Spray (12oz.) (biscuit) |
|
- | ||||||
| WP503695 | Cork, Sealer 1/4 Pound) (Replaces: 503695) |
|
$ 111.46 | ||||||
| 542639 | Cement, Alumilastic 1-1/4 Oz.) |
|
- | ||||||
| WP542638 | Grease, Silicone (1/2 Oz.) (Replaces: 542638) |
|
Immediately | $ 11.50 | |||||
| WP505587 | Sealer, Mastic (1 Qt.). (Replaces: 505587) |
|
Immediately | $ 164.39 | |||||
| 876370 | Kit, Insulation (14 Pcs. 3`` X 24`` X 48``) (Replaces: 876305) |
|
$ 218.83 | ||||||
| 876370 | Insulation Fiberglass (63-1/2`` X 35-1/2`` X 2-5/8``) (Replaces: 978941) |
|
$ 218.83 |
