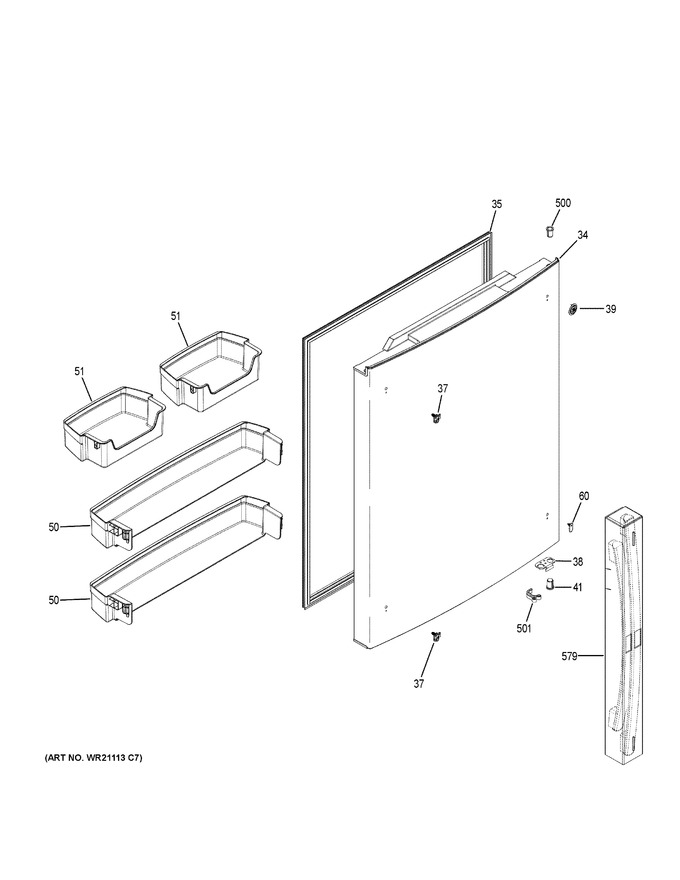

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 34 | WR78X25719 | Door Foam Ff Asm Ww |
|
- | |||||
| 35 | WR14X25721 | Gasket Door Ff Ww |
|
- | |||||
| 37 | WR01A02427 | Fastener Handle Asm (Replaces: WR01X25070) |
|
Immediately | $ 7.15 | ||||
| 38 | WR02X24874 | Stop Door |
|
- | |||||
| 39 | WG04A01013 | Badge Ge Asm (Replaces: WR04X10181) |
|
$ 21.44 | |||||
| 41 | WR02X24875 | Hinge Bushing Bb |
|
- | |||||
| 50 | WR71X25410 | Shelf Door Full |
|
- | |||||
| 51 | WR71X24867 | Shelf Door Module |
|
- | |||||
| 60 | WR02X25697 | Plug Button White |
|
$ 6.73 | |||||
| 500 | WR02X24876 | Hinge Bushing Bb |
|
- | |||||
| 501 | WR02X24877 | Force Closure |
|
- | |||||
| 579 | WR12X25722 | Pk Handle Kit Asm Ww |
|
- | |||||
| 579 | WR12X34229 | White Door Handle |
|
- |
