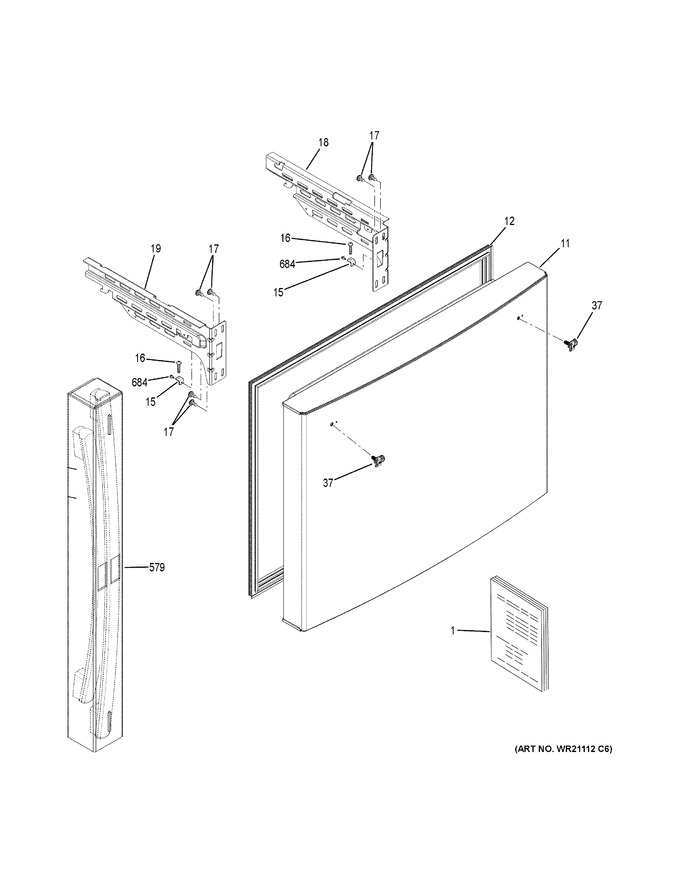

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 49-60755 | Pm Use And Care Manual |
|
- | |||||
| 1 | 31-46262 | Pm Mini Wiring Manual |
|
- | |||||
| 11 | WR78X25671 | Door Foam Fz Asm Ww |
|
- | |||||
| 12 | WR14X25672 | Gasket Door Fz Ww |
|
- | |||||
| 15 | WR02X12870 | Bracket Support |
|
- | |||||
| 16 | WR01X10843 | Scr 1/4 - 20 Unc -2a |
|
- | |||||
| 17 | WR01A00633 | Scr 1/4-20 Rt Flat 3/4 S (Replaces: WR01X10885) |
|
$ 3.57 | |||||
| 18 | WR72X24852 | Bracket Drawer Rh |
|
- | |||||
| 19 | WR72X24853 | Bracket Drawer Lh |
|
- | |||||
| 37 | WR01A02427 | Fastener Handle Asm (Replaces: WR01X25070) |
|
Immediately | $ 7.15 | ||||
| 578 | WR12X34307 | White Freezer Door Handle |
|
- | |||||
| 579 | WR12X25722 | Pk Handle Kit Asm Ww |
|
- | |||||
| 684 | WR01X10844 | Scr 8-32 Ab Ihws 3/8 S |
|
- |
