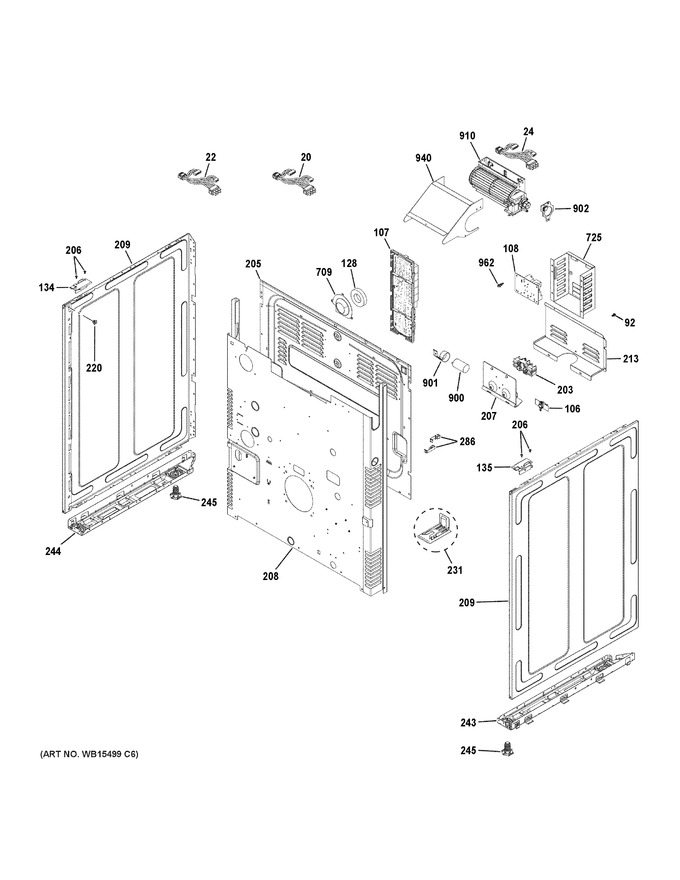

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
20	WB18X28902		Harness Main		Appelez-nous	-
22	WB18X28692		Dc Harness		Appelez-nous	-
24	WB18X28887		Harness Blower		Appelez-nous	-
92	WS01A00445		Screw Ground   (Replaces: WB1X1261)				$ 12.51
106	WB24X29505		Switch High Limit		Appelez-nous	-
107	WB27X29495		Machine Board With Frame (service)		Appelez-nous	-
107	WB27X29501		Machine Board With Frame (service)		Appelez-nous	-
108	WB27X28658		Board Daughter Relay		Appelez-nous	-
128	WB02K10349		Lamp Insulation		Appelez-nous	-
134	WB34X28750		Front Support Lh		Appelez-nous	-
135	WB34X28748		Front Support Rh		Appelez-nous	-
203	WG02F02750		Terminal Block Asm   (Replaces: WB17T10011)			Immediately	$ 143.06
205	WB34X28992		Cover Back		Appelez-nous	-
206	WS01A01151		Screw   (Replaces: WB01K10091)			Immediately	$ 11.44
207	WB18X28834		Terminal Block Bracket		Appelez-nous	-
208	WB63X28988		Range Back		Appelez-nous	-
209	WB56X28847		Panel Side		Appelez-nous	-
213	WB34X28980		Cover Terminal Block		Appelez-nous	-
220	WB2K8		Grommet		Appelez-nous	-
231	WB02K10386		Bracket Asm Anti-tip		Appelez-nous	-
243	WB63X25481		Support Base Rt		Appelez-nous	-
244	WB63X25480		Support Base Lt		Appelez-nous	-
245	WS01L05470		Leg Leveler   (Replaces: WB02K10182)			Immediately	$ 3.57
286	WS01A01082		Clip Cable   (Replaces: WB2K31)				$ 4.20
709	WB08K10018		Cover Lamp		Appelez-nous	-
725	WB34X25587		Cover Motor		Appelez-nous	-
900	WS01F00866		Capacitor Motor   (Replaces: WB08K10009)				$ 22.87
901	WB02K10172		Capacitor Holder		Appelez-nous	-
902	WB27X28659		Board Sensor		Appelez-nous	-
910	WB26X29060		Blower Tangential		Appelez-nous	-
940	WB34X28735		Fan Support		Appelez-nous	-
962	WB02T10093		Standoff Pcb		Appelez-nous	-
