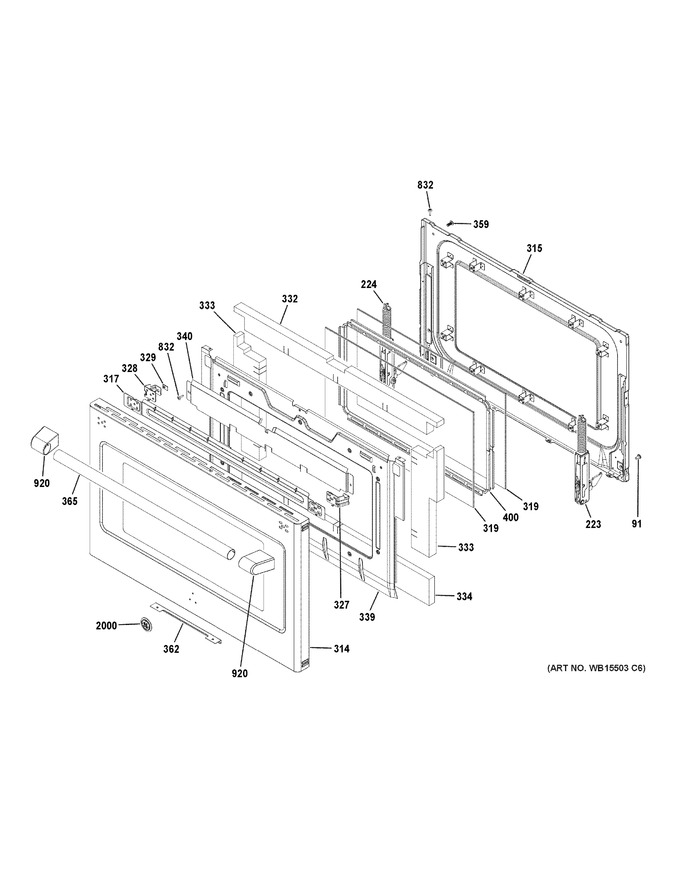

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
91	WS01A01018		Screw 10-32 Tr T   (Replaces: WB01T10008)			Immediately	$ 3.57
223	WB10X26520		Door Hinge Right		Appelez-nous	-
224	WB10X26521		Door Hinge Left		Appelez-nous	-
314	WB56X28180		Glass & Panel Door Asm		Appelez-nous	-
315	WB56X24931		Liner Door Weld Assembly		Appelez-nous	-
317	WB34X28862		Panel Vent Backer		Appelez-nous	-
319	WB57K10155		Crystal Window				$ 47.93
327	WB34X28247		Bracket Handle		Appelez-nous	-
328	WB34X28244		Bracket Handle		Appelez-nous	-
329	WS01A01047		Speednut   (Replaces: WB1K2)				$ 3.57
332	WB34X32349		Insulation Door		Appelez-nous	-
332	WB34X21727		Insulation Door		Appelez-nous	-
333	WB34X21726		Insulation Door		Appelez-nous	-
334	WB34X21728		Insulation Door		Appelez-nous	-
339	WB56K10079		Guard Insulation		Appelez-nous	-
340	WB02K10371		Shield Heat Door		Appelez-nous	-
359	WB1K78		Screw 12-14, 5/8s		Appelez-nous	-
362	WB07X28655		Barrier Door		Appelez-nous	-
365	WB15X28757		Handle Tube Ss		Appelez-nous	-
400	WB34X28741		Frame Window Assy		Appelez-nous	-
832	WB1K21		Screw		Appelez-nous	-
920	WB34X28700		Endcap Handle		Appelez-nous	-
2000	WB02X29479		Flat Badge Asm		Appelez-nous	-
