01 - Cover Sheet

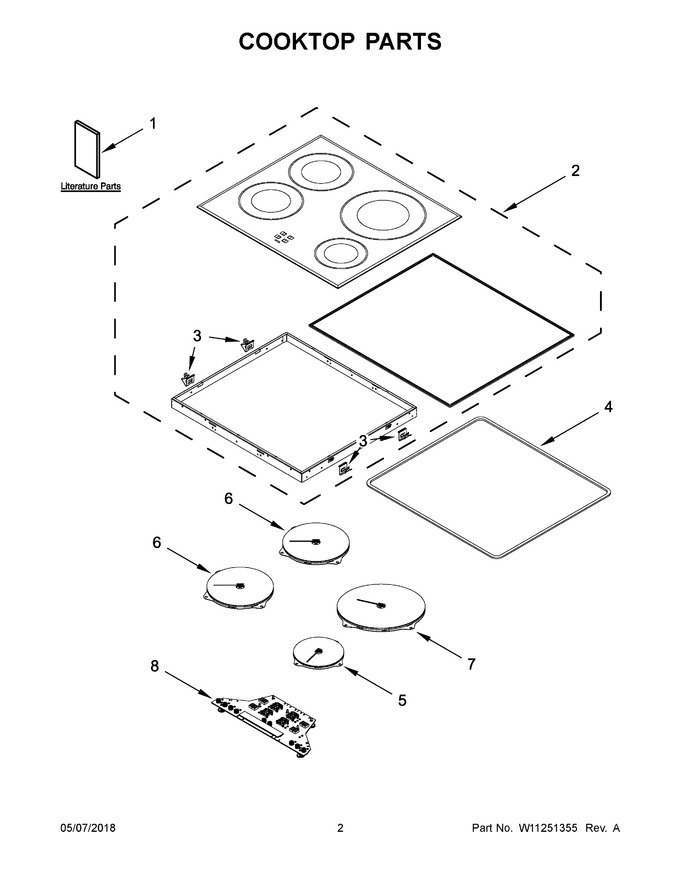

02 - Cooktop Parts
03 - Interior Parts
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 501971901250 | Installation Instructions |
|
- | |||||
| 2 | W10483502 | Cooktop, Glass (black) |
|
- | |||||
| 3 | W11791261 | Clip, Cooktop (Replaces: W11258211) |
|
$ 9.24 | |||||
| 4 | WPW10237005 | Gasket, Cooktop (Replaces: W10237005) |
|
Immediately | $ 147.20 | ||||
| 5 | W11672508 | Element (145mm 1800/1400w) (right Front) (Replaces: W10396547) |
|
$ 231.51 | |||||
| 6 | W10483505 | Element (180mm 2500/1800w) (left Front & Left Rear) |
|
$ 95.22 | |||||
| 7 | WPW10328391 | Element (240mm 3700/2300w) (right Rear) (Replaces: W10328391) |
|
Immediately | $ 336.87 | ||||
| 8 | W10533017 | Board, User Interface |
|
$ 295.96 | |||||
| 1A | 400011035254 | Use And Care Guide |
|
- |
