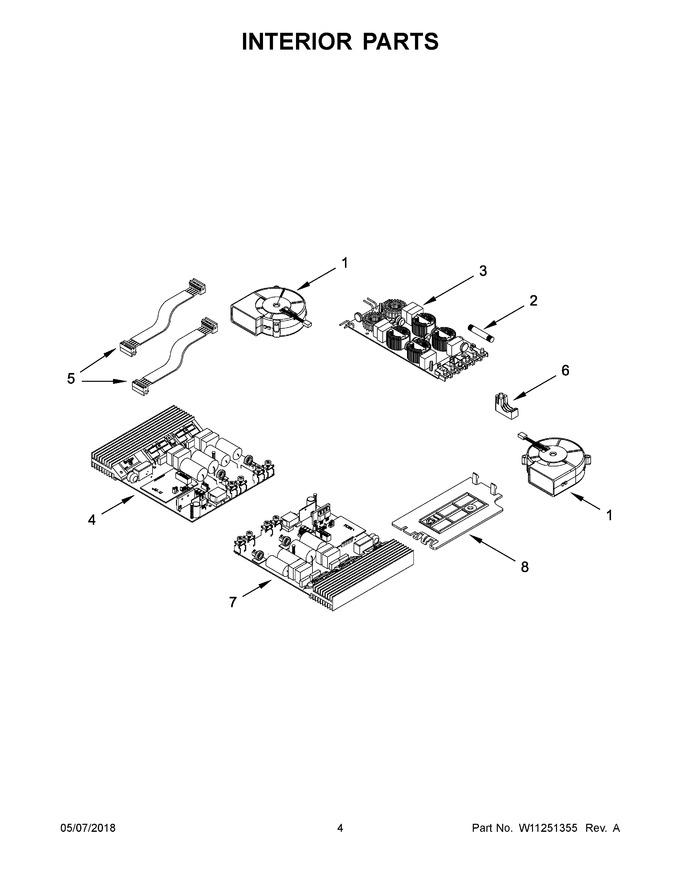

03 - Interior Parts
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10328381 | Fan, Cooling (left) |
|
Immediately | $ 324.00 | ||||
| 2 | WPW10328492 | Fuse (Replaces: W10328492) |
|
Immediately | $ 114.75 | ||||
| 3 | W10483510 | Filter, Noise |
|
- | |||||
| 4 | W11259042 | Unit, Power (g8 Induction Sl) (Replaces: W10762815) |
|
$ 558.27 | |||||
| 5 | W11428265 | Harness, User Interface (30 G8) (Replaces: W10328396) |
|
$ 194.63 | |||||
| 6 | W10328401 | Harness, Fixing Clip |
|
$ 232.85 | |||||
| 7 | W11259038 | Unit, Power (g8 Induction Ss) (Replaces: W10762898) |
|
$ 547.97 | |||||
| 8 | W10483507 | Cover, Plastic G8 Induction Module |
|
$ 36.51 | |||||
| 1A | W10328378 | Fan, Cooling (right) |
|
$ 325.92 | |||||
| 5A | W10328395 | Harness, User Interface (g7/g8) |
|
$ 95.03 | |||||
| NI | W10310006A | Accessories, Adhesive, Marble Countertop (Replaces: W10310006) |
|
$ 204.11 | |||||
| NI | N/P | Following Parts Not Illustrated |
|
- | |||||
| NI | W11258212 | Harness, Main |
|
- | |||||
| NI | W10328499 | Accessories, Kit, Mounting Marble Countertop |
|
$ 249.13 |
