View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Cover Sheet

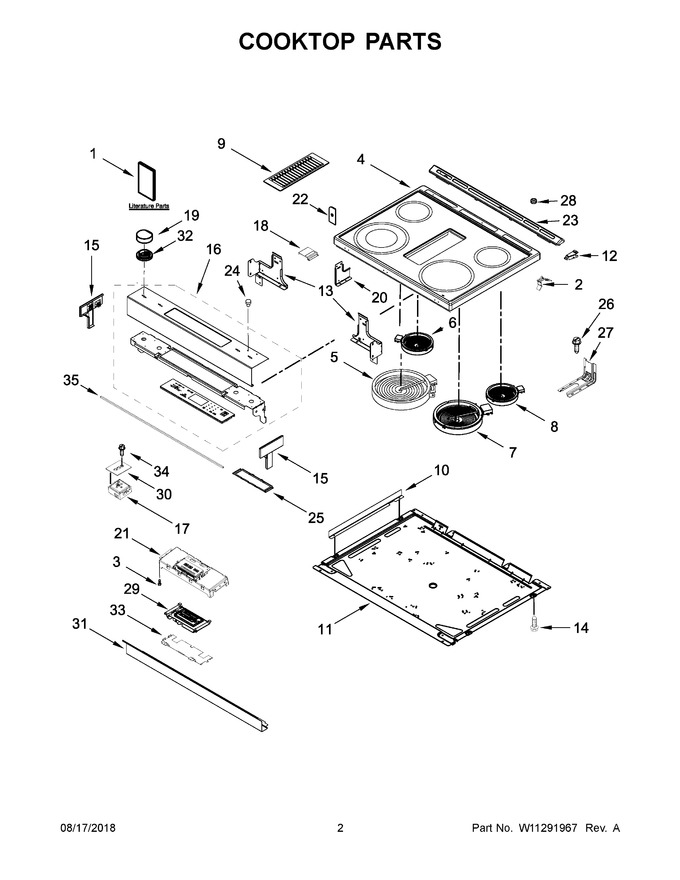

02 - Cooktop Parts
03 - Chassis Parts
04 - Blower Parts
05 - Door Parts
06 - Drawer Parts
07 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10787365 | Instructions, Installation |
|
- | |||||
| 2 | WPW10225448 | Spring, Element (Replaces: W10225448) |
|
Immediately | $ 9.36 | ||||
| 3 | W11233072 | Screw (Replaces: 3196178) |
|
Immediately | $ 13.25 | ||||
| 4 | W10818722 | Cooktop (black) (Replaces: W10536330) |
|
$ 822.52 | |||||
| 5 | W11517959 | Element (3000/1400w) (left Front) (Replaces: W10275048) |
|
Immediately | $ 132.01 | ||||
| 6 | WPW10342780 | Element (1300w) (left Rear) (Replaces: W10342780) |
|
Immediately | $ 151.61 | ||||
| 7 | WPW10251108 | Element (3200w) (right Front) (Replaces: W10251108) |
|
Immediately | $ 307.76 | ||||
| 8 | W11171119 | Element (1200w) (right Rear) (Replaces: 8273994) |
|
Immediately | $ 203.06 | ||||
| 9 | W11211500 | Grill, Air (Replaces: W10575593) |
|
Immediately | $ 223.54 | ||||
| 10 | W11175271 | Bracket, Radiant (Replaces: W10613286) |
|
$ 70.12 | |||||
| 11 | W10561812 | Pan, Radiant |
|
- | |||||
| 12 | W10162253 | Brace, Corner (left) |
|
$ 66.72 | |||||
| 13 | W10289169 | Support, Cooktop (right) |
|
$ 27.05 | |||||
| 14 | W11244557 | Screw (Replaces: 3196173) |
|
$ 12.86 | |||||
| 15 | W10557750 | Endcap (black (left)) |
|
$ 128.68 | |||||
| 16 | W10919259 | Console (black) (Replaces: W10901074) |
|
$ 676.10 | |||||
| 17 | W10857622 | Switch, Infinite (left Front) (Replaces: W10437092) |
|
Immediately | $ 215.89 | ||||
| 18 | W10752321 | Shield, Keypad |
|
- | |||||
| 19 | W10505762 | Knob (black) |
|
$ 129.75 | |||||
| 20 | W10598048 | Bracket, Console (center) |
|
$ 23.16 | |||||
| 21 | W11295990 | Control, Mrc2 (Replaces: W11254182) |
|
Immediately | $ 463.04 | ||||
| 22 | W10882900 | Gasket |
|
$ 21.01 | |||||
| 23 | W11240519 | Vent, Trim Top (black) (Replaces: W10636528) |
|
$ 141.47 | |||||
| 24 | WP3196068 | Lens, Indicator (Replaces: 3196068) |
|
Immediately | $ 5.63 | ||||
| 25 | W10557780 | Bracket , Control |
|
$ 33.01 | |||||
| 26 | WP7101P485-60 | Screw, Anti-tip Kit (Replaces: 7101P485-60) |
|
$ 27.65 | |||||
| 27 | W11502257 | Bracket, Anti-tip (Replaces: W10606241) |
|
Immediately | $ 20.73 | ||||
| 28 | W11104127 | Bumper (Replaces: W10664705) |
|
Immediately | $ 19.77 | ||||
| 29 | W11108634 | Display, Assembly (Replaces: W10759326) |
|
$ 530.65 | |||||
| 30 | WP71002569 | Gasket, Infinite Switch (Replaces: 7201P077-60) |
|
Immediately | $ 9.51 | ||||
| 31 | W10743280 | Console, Lower Panel (black) |
|
- | |||||
| 32 | W10663811 | Bezel (black) |
|
- | |||||
| 33 | W10558372 | Bracket, Control |
|
$ 22.59 | |||||
| 34 | W11846982 | Screw (Replaces: W10498399) |
|
$ 10.58 | |||||
| 35 | W10802441 | Gasket, Console/cooktop (Replaces: W10612719) |
|
Immediately | $ 20.46 | ||||
| 12A | W10162252 | Brace, Corner (right) |
|
$ 70.73 | |||||
| 13A | W10289170 | Support, Cooktop (left) |
|
$ 27.05 | |||||
| 15A | W10557753 | Endcap (black (right)) |
|
- | |||||
| 17A | W10917724 | Switch, Infinite (left Rear And Right Front) (Replaces: W10437094) |
|
Immediately | $ 116.42 | ||||
| 17B | W10911303 | Switch, Infinite (right Rear) (Replaces: W10578768) |
|
Immediately | $ 103.74 | ||||
| 1A | W10896663 | Use And Care Guide |
|
- | |||||
| 1B | W10844271 | Sheet, Tech |
|
- | |||||
| 1C | W10902657 | Diagram, Wiring |
|
- | |||||
| 1D | W10400064 | Guide, Quick Start (english) |
|
- | |||||
| 1E | W10400065 | Guide, Quick Start (french) |
|
- | |||||
| 1F | W11643128 | Template, Downdraft (Replaces: W10817089) |
|
$ 12.97 | |||||
| NI | W11198274 | Harness, Jumper (down Draft) |
|
$ 105.96 | |||||
| NI | N/P | Following Parts Not Illustrated |
|
- | |||||
| NI | W11190470 | Harness, Main |
|
$ 239.49 | |||||
| NI | W11175842 | Suppressor (Replaces: W10653092) |
|
Immediately | $ 107.99 | ||||
| NI | W11025616 | Harness, Keypad (Replaces: W10575120) |
|
Immediately | $ 67.76 | ||||
| NI | W11226772 | Harness, Display (Replaces: W11172426) |
|
Immediately | $ 213.24 | ||||
| NI | W11172418 | Harness, Console |
|
Immediately | $ 212.10 | ||||
| NI | W11171878 | Harness, Cooktop |
|
Immediately | $ 187.16 | ||||
| NI | W10664316 | Clip, Harness (cooktop) |
|
$ 18.87 |
